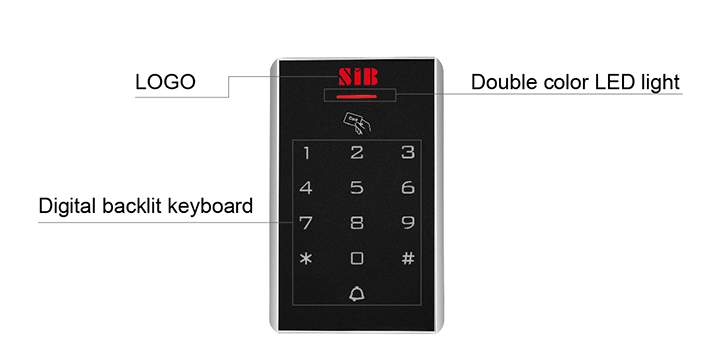

Product presentation

WG26/WG34 adjustable by end user under reader mode
Capacity: 2000 users,button keypad
Plastic case, indoor used
Access Way: Pin, Card, Pin+ Card
Relay Toggle Mode
Master cards are available
Data backup
Access ways:card,code,card+code


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
K1201EM
EM Card 125Khz
Indoor
Buble Keypad Access Control and Card Reader
SIB
K1201MF
MF Card 13.56Mhz
Indoor
Buble Keyboard RFID Card Access Controller


Technical parameters


Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V±10%
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

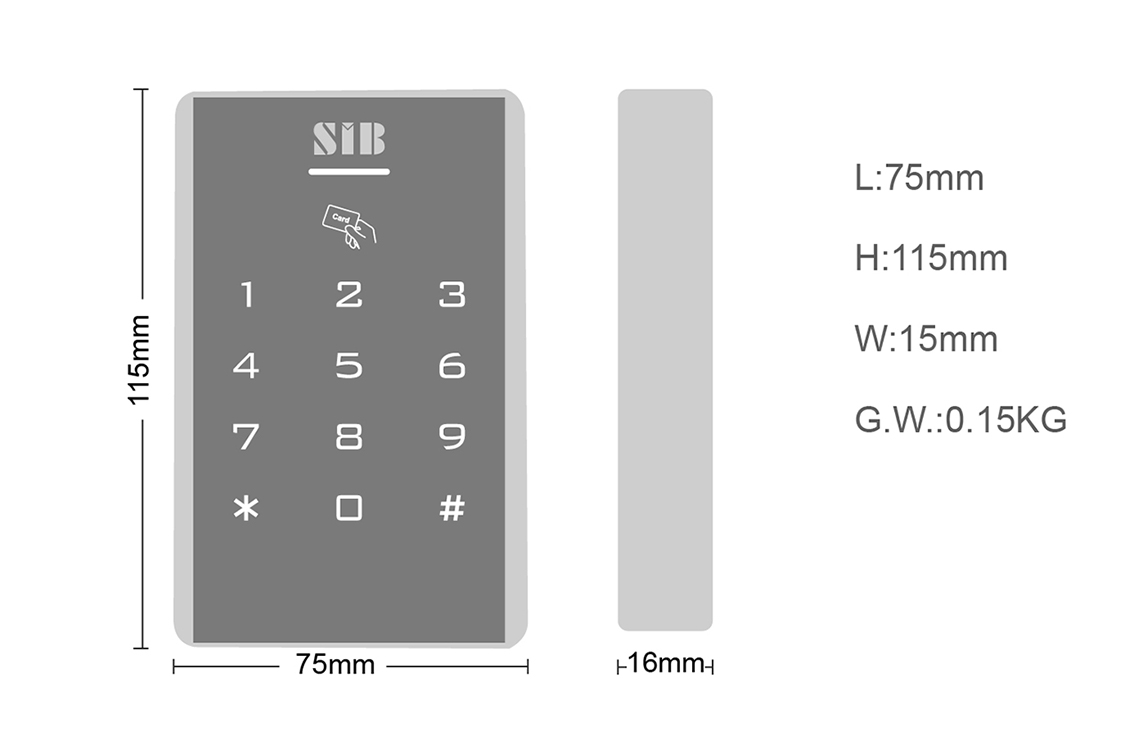

Size & Weight





Package size

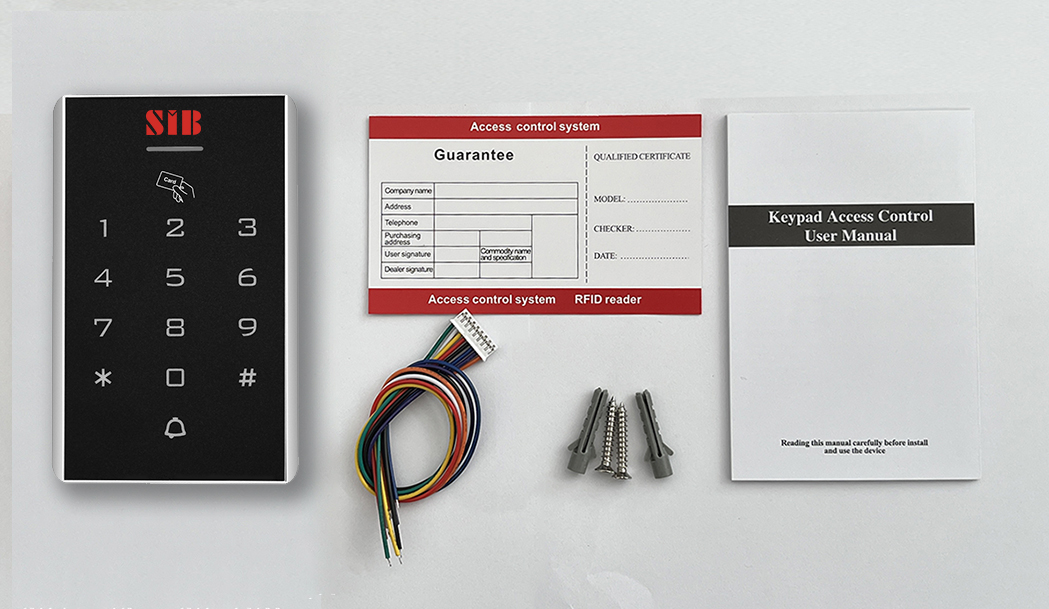

Packing list



Common power supply diagram





Special power supply diagram






Reader mode diagram
