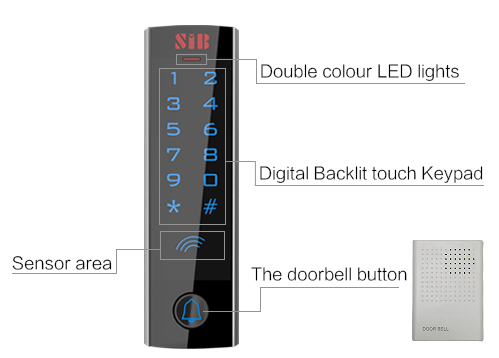

Product presentation

Metal case, anti-vandal
Digital backlit touch keypad
Multi-function standalone access
controller and reader,WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door: card, password, card + password




Product Version

Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
T4EM
EM Card 125Khz
Indoor Touch Glass Keypad Standalone Access Control
SIB
T4MF
MF Card 13.56Mhz
Indoor
Touch Acrylic Keypad  One Door Access Controller


Technical parameters


Card type:EM/MF

Capacity: 2,000

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 0~99s

Dimension:155 *45*20mm

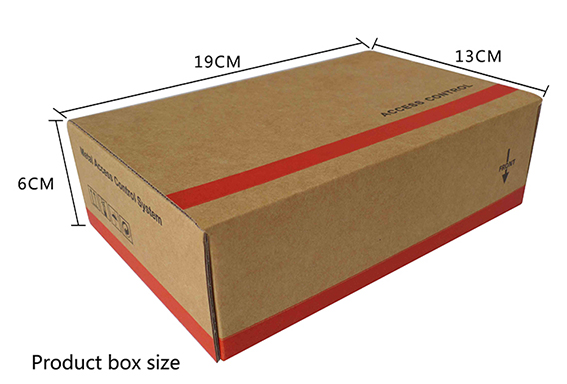

Package size








Packing List
















Click to download
