Product Description

Two relays, supports up to 2000 users in total for two zones
Have 7 working modes
1. Wiegand reader
2. Standalone for single door
1. Standalone for two doors
2. With external reader for two doors
3. Two units interlocked for two doors
4. Anti-passback for single door
5. Anti-passback for two doors.
Waterproof structure design, fit for IP68 waterproof degree

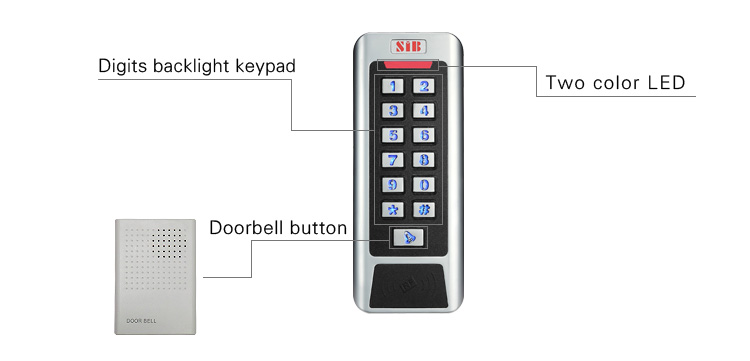

Digital backlit keypad, the backlit can be set to Normal ON,
Normal OFF, or Human-approach
Can add consecutive user cards quickly in one time


Product Version

Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
CC1EM
EM Card 125Khz
IP68
Dual Doors Waterproof EM Card Metal Access Control
SIB
CC1MF
MF Card 13.56MHz
IP68
Dual Doors Waterproof Mifare Card Metal Access Control
SIB
CC1EH
EM+H Card 125Khz
IP68
Two Doors Waterproof RFID EM+HID Metal Access Control
SIB
CC1MC
Mifare Card 13.56MHz
IP68
Two Relays Waterproof RFID Mifare+CPU Card Metal Access Control


Technical parameters


Card type:EM.HID

Waterproof degree:IP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V±10%

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:5~8cm

Ambient temperature:-45℃~60℃

Door Opening Time: 099s(Adjustable)

Dimension:145 *58*22mm






Size & Weight









Package size








Packing list





Common power supply diagram






Special power supply diagram





Click to download
