Product presentation
Metal case

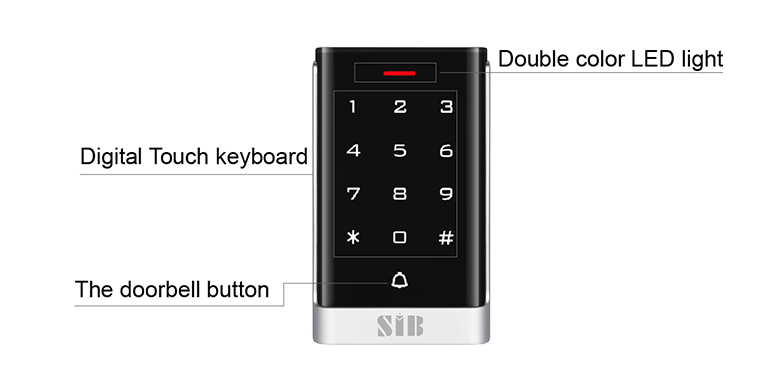

Capacitive sensing touch button
Capacity:2000 users

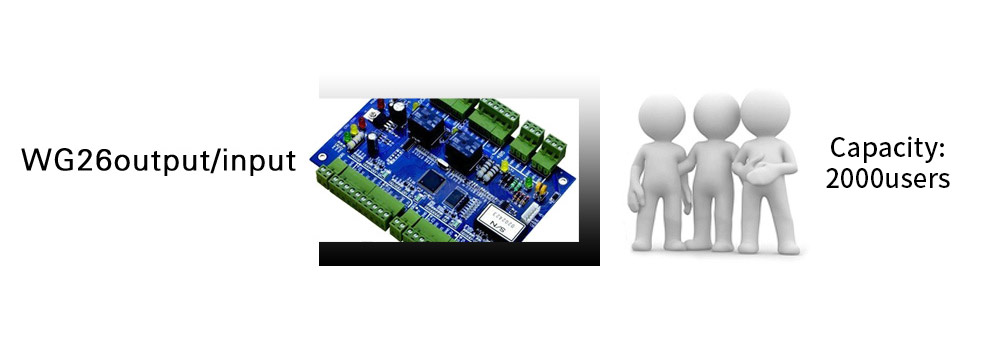

WG26 output / input
Access ways:card,code,card+code
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
T1102EM |
EM Card 125Khz |
Indoor |
Metal Touch Screen Card Pin Access Control |
|
SIB |
T1102MF |
MF Card 13.56Mhz |
Indoor |
Metal Touch Panel RFID Card Password Access Control |
|
SIB |
T1102EM-W | EM Card 125Khz |
IP68 |
IP68 Touch Keypad RFID Card Metal Access Control |
|
SIB |
T1102MF-W | MF Card 13.56Mhz |
IP68 |
Outdoor Touch Keyboard RFID Fobs Metal Access Control |
Technical parameters
Card Type:EM/MF
Alarm Output Load:≤20A
Working Voltage:DC12V
Idle Current:≤30mA
ReadingRange:2—5cm
Operating Temperature:-45~60℃
Operating Humidity:10%—90%
Lock Output Load:≤3A
Door Opening Time:0~99s(Adjustable)
Short-circuit Protect:≤100um

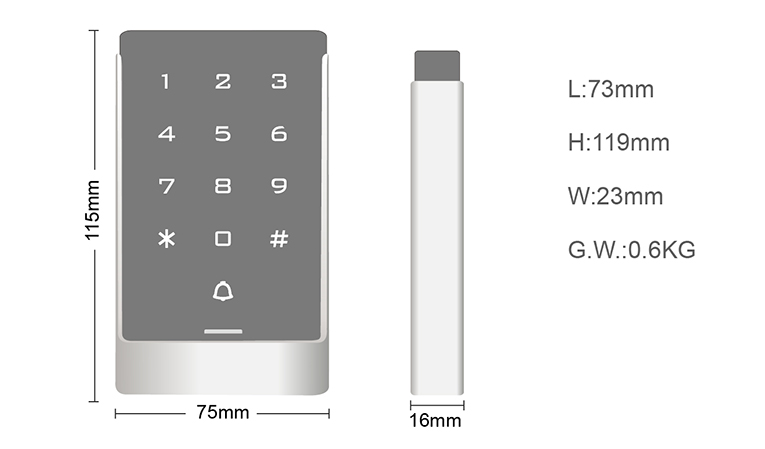

Product dimensions
Package size

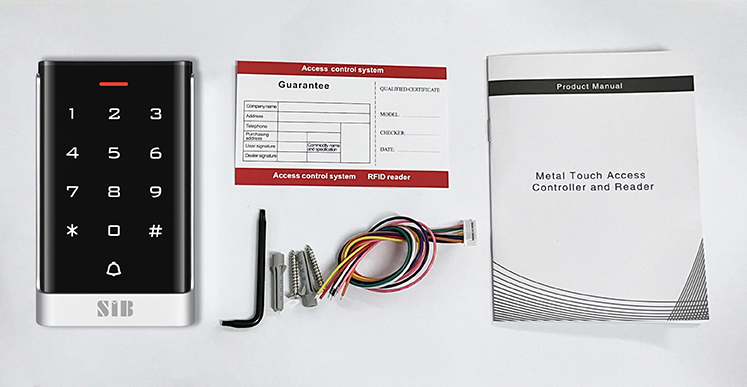

Packing list
Common power supply diagram
Special power supply diagram
Reader mode
