RFID Card Waterproof Metal Keypad Reader RF001 - RFID Card Reader

English: 中文

Product introduction
Technical parameters
System wiring diagram
Manual Down

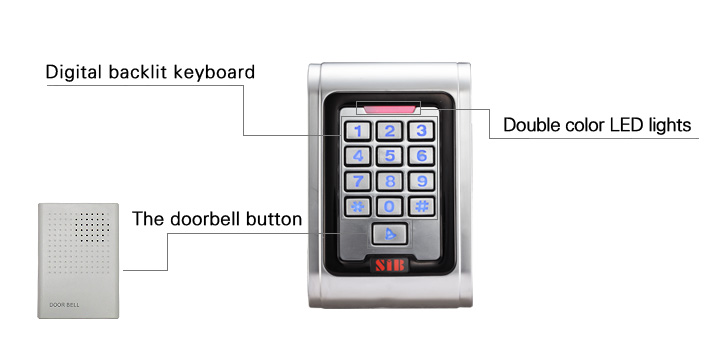

Product presentation

Metal structure design, anti-vandal

Waterproof Degree: IP68
Digital backlit keyboard, can operate keypad in dark night
All-in-one, WG26 output/input
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password

The doorbell button and interface: buttons and isolation circuit,

Connect to any external bell

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	RF001EM	EM Card 125Khz	IP68	Metal Waterproof Wg26/34 PIN Readers
SIB	RF001MF	MF Card 13.56Mhz	IP68	Metal Outdoor Wg26/34 Password Readers

Technical parameters

Card type:EM/MF

Waterproof degree：IP68

Environment Humidity：10%～90%

Ambient temperature：-45℃～60℃

Working voltage：DC12V

Static electricity：≤30mA

Card read distance：3～6cm

Dimension：120 *80*25mm

Size & Weight

Package size

Packing list

Wiring Instruction

Wire No.	Function	Color	Description
1	BELL_A	Purple	Doorbell button one end
2	BELL_B	Gray	Doorbell button to the other end
3	LED	Blue	Connect controller LED
4	Beeper	Yellow	Connect controller beeper
5	D0	Green	WG output line D0
6	D1	White	WG output line D1
7	+12V	Red	Power supply +12V
8	GND	Black	Power supply -12V
