Metal Waterproof Proximity Card PIN Reader RF004 - RFID Card Reader

English: 中文

Product introduction
Technical parameters
System wiring diagram
Manual Down

Product presentation

Material：Zinc alloy case
Low Power Consumption: Idle current≦30mA

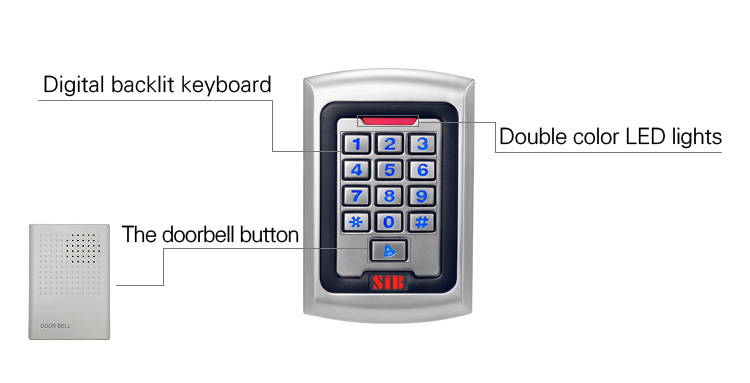

Backlight keypad: can operate keypad in dark night
Wiegand output: with Wiegand output interface, WG26 card number or WG34 buttons output
Have doorbell key and interface: can connect with any doorbell

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	RF004EM	EM Card 125Khz	IP68	Antivandal case Waterproof Keypad Reader
SIB	RF004MF	MF Card 13.56Mhz	IP68	Waterproof Metal Mifare Card PIN Readers

Technical parameters

Card type:EM/MF

Waterproof degree：IP68

Environment Humidity：10%～90%

Ambient temperature：-45℃～60℃

Working voltage：DC12V

Static electricity：≤30mA

Card read distance：3～6cm

Dimension：120 *80*25mm

Size & Weight

Package size

Packing list

Wiring Instruction

Wire No.	Function	Color	Description
1	BELL_A	Purple	Doorbell button one end
2	BELL_B	Gray	Doorbell button to the other end
3	LED	Blue	Connect controller LED
4	Beeper	Yellow	Connect controller beeper
5	D0	Green	WG output line D0
6	D1	White	WG output line D1
7	+12V	Red	Power supply +12V
8	GND	Black	Power supply -12V
