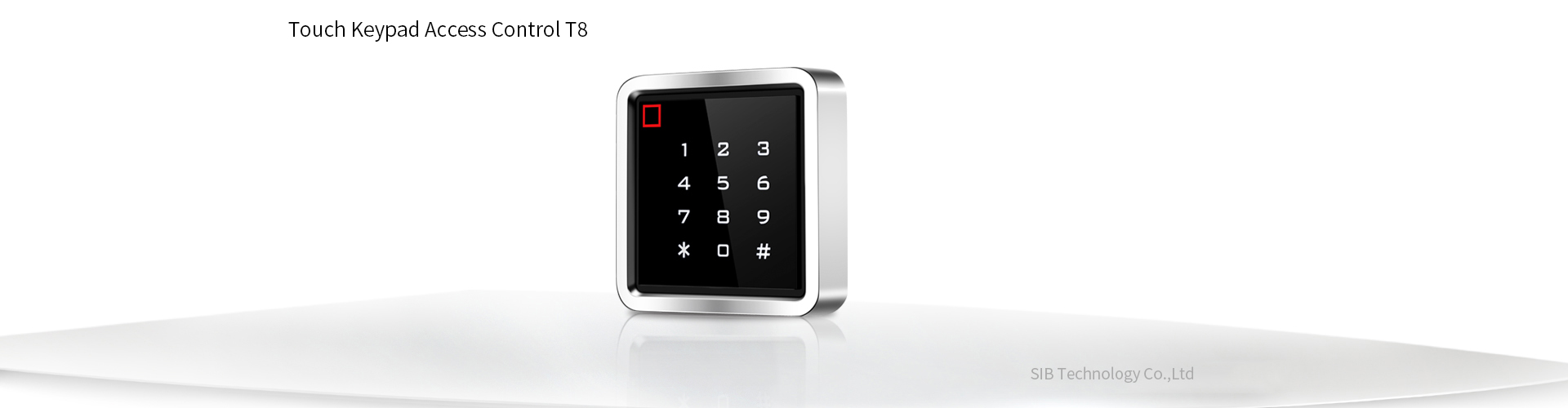

Product presentation

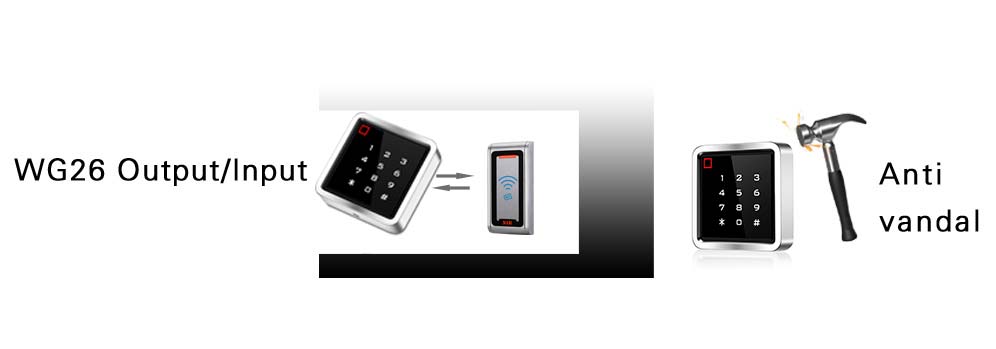

Metal case, anti-vandal

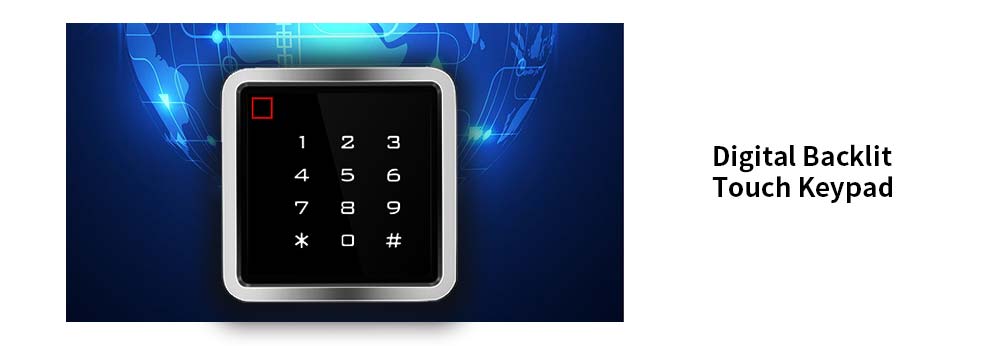

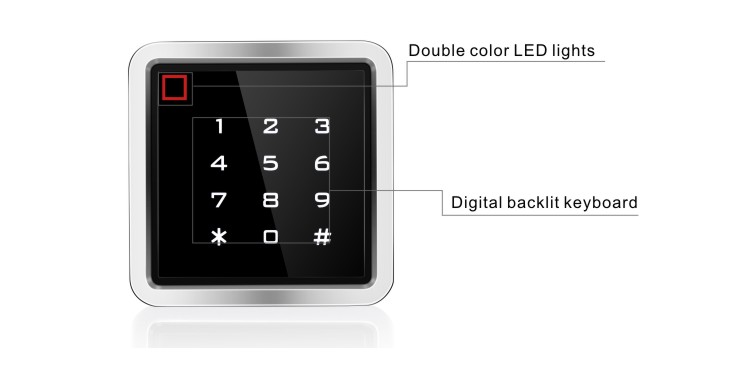

Digital backlit touch keypad
Multi-function standalone access
controller and reader,
WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password




Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  T8EM
  EM Card 125Khz
Indoor
   Metal Touch RFID 125Khz Keypay Gate Entry
SIB
  T8MF
  MF Card 13.56Mhz
Indoor
  Zinc Alloy Touch Mifare Card Access Control
SIB
  T8EM-W
  EM Card 125Khz
IP68
  Waterproof Metal Keypad Readers & Proximity Access Control
SIB
  T8MF-W
  MF Card 13.56Mhz
IP68
  Waterproof Metal PIN Readers & RFID Access Control







Technical parameters


Card type:EM/MF

Capacity: 2,000

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

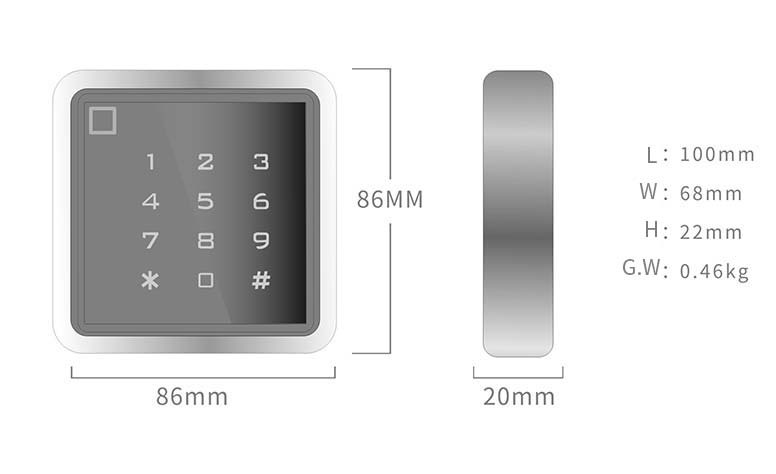

Dimension:86 *86*20mm






Size & Weight





Package size








Packing list





Common power supply diagram






Special power supply diagram
