Product presentation

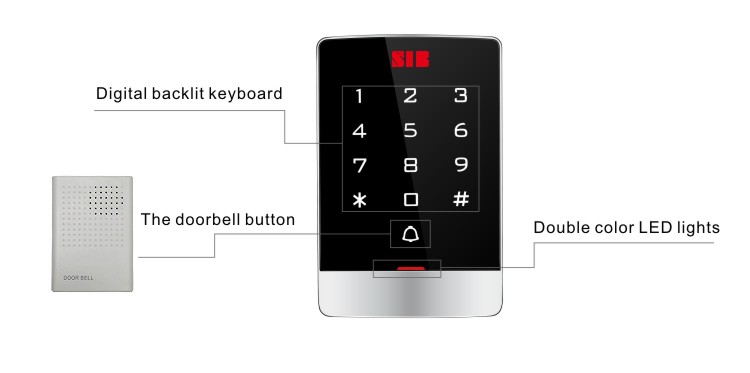

Metal case, anti-vandal

Digital backlit touch keypad
Multi-function standalone access
controller and reader,
WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password




Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  T9EM
  EM Card 125Khz
Indoor
  EM Wristband Touch Standalone Access Control
SIB
  T9MF
  MF Card 13.56Mhz
Indoor
  Mifare Label Touch Single Door Access Control
SIB
  T9EM-W
  EM Card 125Khz
IP68
  Waterproof EM Badges RFID Keypad Access Control
SIB
  T9MF-W
  MF Card 13.56Mhz
IP68
  Waterproof Mifare Tag RFID Password Access Control







Technical parameters


Card type:EM/MF

Capacity: 2,000

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2-5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s(Adjustable)

Dimension:121 *79*21mm






Size & Weight





Package size








Packing list





Common power supply diagram






Special power supply diagram
