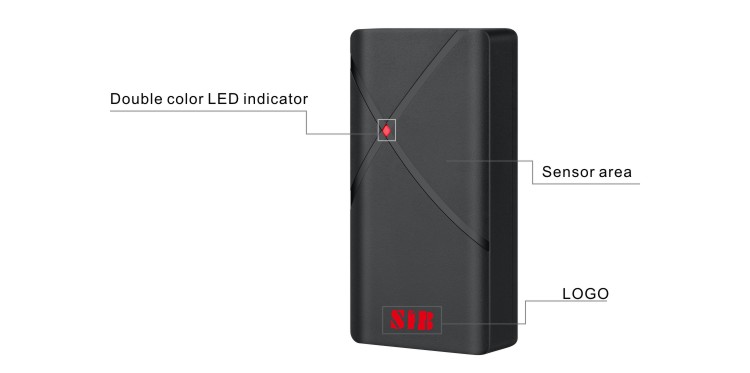

Product presentation

Product Material : plastic housing
Very low power consumption: static
current less than 30mA。
Output format: WG26

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	R101EM	EM Card 125Khz	IP68	Outdoor EM MINI Reader
SIB	R101MF	MF Card 13.56Mhz	IP68	Outdoor Mifare Smart Reader
SIB	R101HID	HID Card 125Khz	IP68	Waterproof HID Readers

Technical parameters

Card Type:EM/MF
Reading Range:2-5cm
Waterproof:IP68
Working Voltage:DC12V
Idle Current:≤30mA
Wiegand interface:WG26/34
Plastic case Communication Distance:100m

Wiring Instruction

Wire No.	Function	Color	Description
1	LED	Blue	Connect controller LED
2	Beeper	Yellow	Connect controller beeper
3	D0	Green	WG output line D0
4	D1	White	WG output line D1
5	+12V	Red	Power supply +12V
6	GND	Black	Power supply -12V

Diagram

Click to download
