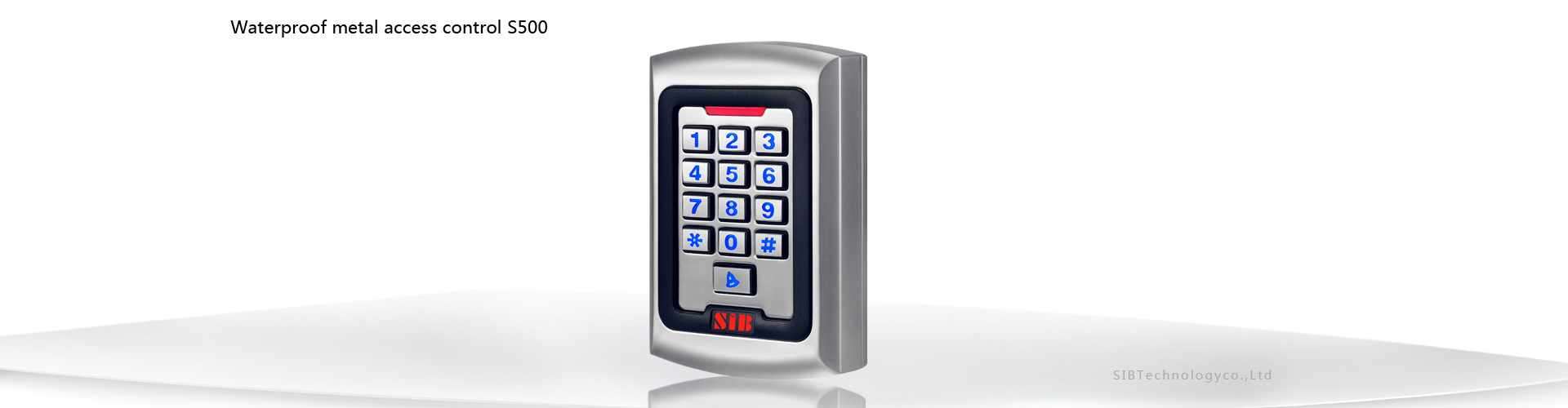

Product presentation


Waterproof Degree: IP68
Metal structure design, anti-vandal

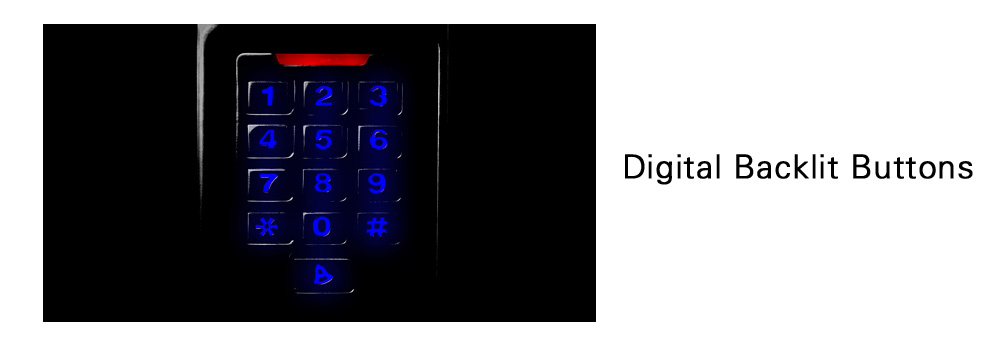

Digital backlit keyboard
All-in-one, WG26 output/input
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password
The doorbell button and interface: buttons and isolation
circuit, connect to any external bell




Product Version



Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
 S500EM
 EM Card 125Khz
Indoor
 Antivandal Proximity Card Keypad Door Entry
SIB
 S500MF
 MF Card 13.56Mhz
Indoor
 Metal Housing Mifare Card Keypad Gate Entry
SIB
 S500EM-W
 EM Card 125Khz
IP68
 Metal Waterproof RFID 125Khz Keypad Access Control
SIB
 S500MF-W
 MF Card 13.56Mhz
IP68
 Metal Outdoor Mifare 13.56Mhz Digital Keypad Controller






Technical parameters


Card type:EM/MF

Waterproof degree:IP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:120 *80*25mm






Size & Weight






Package size

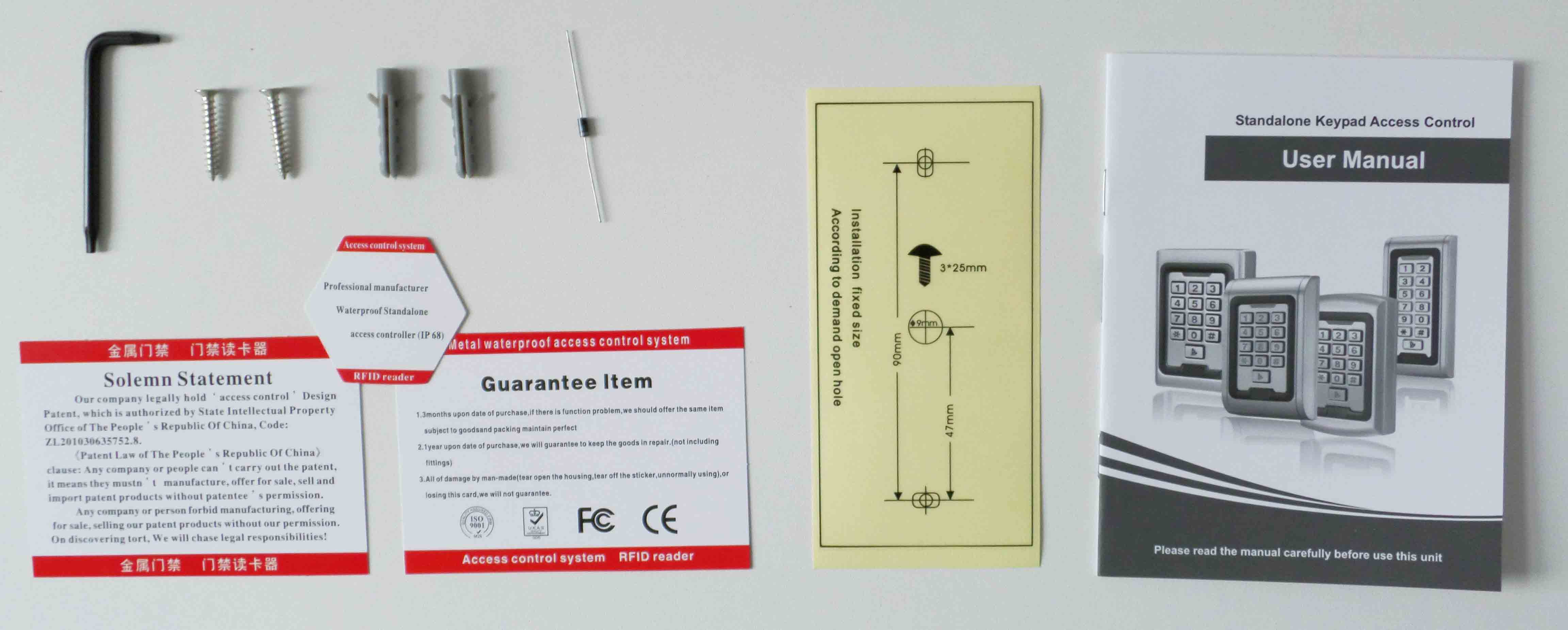

Packing list





Common power supply diagram






Special power supply diagram
