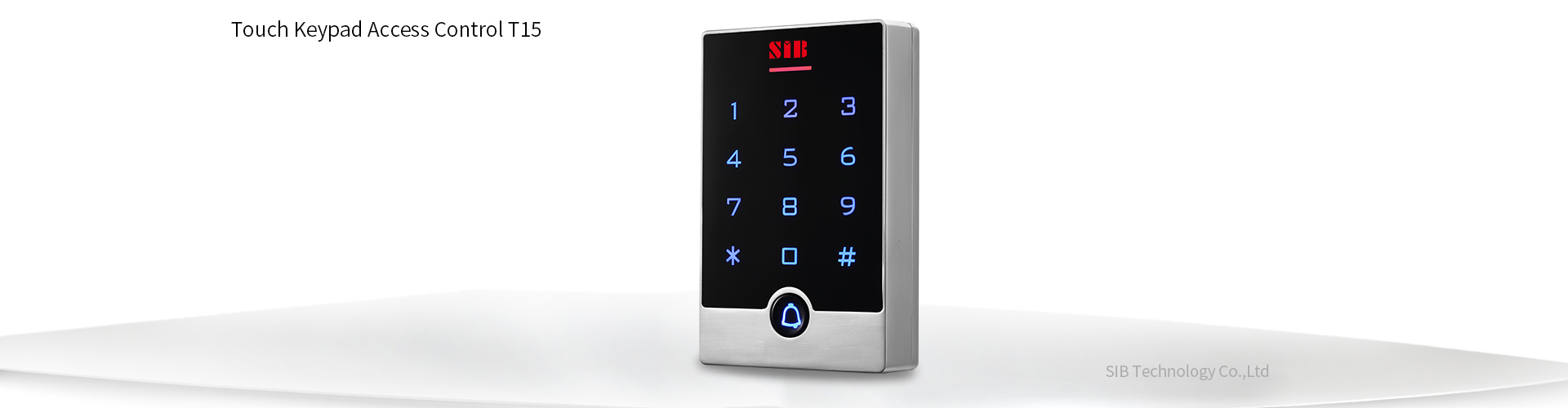

Product presentation


Metal case, anti-vandal

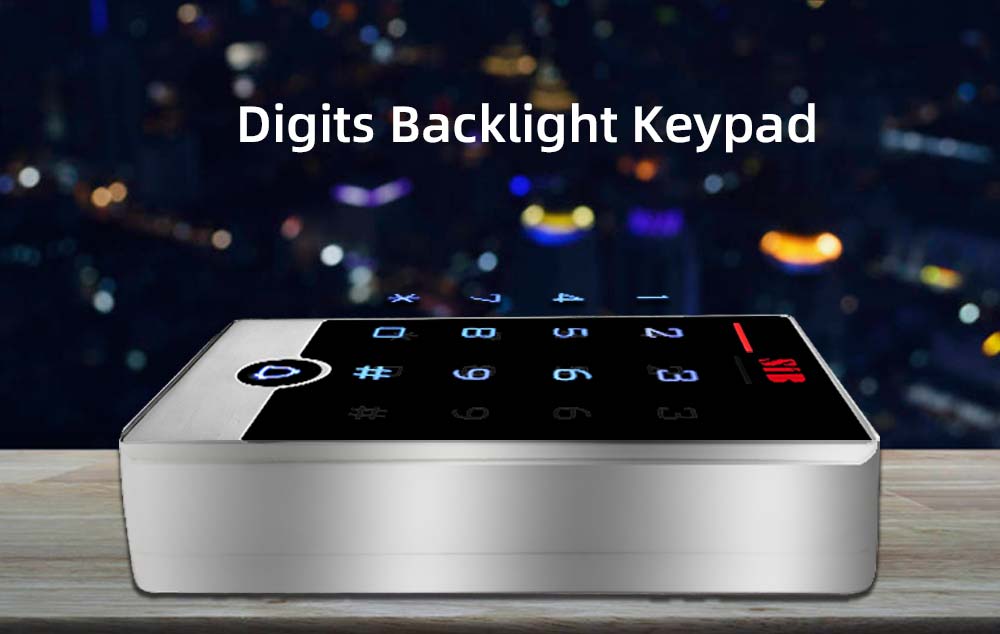

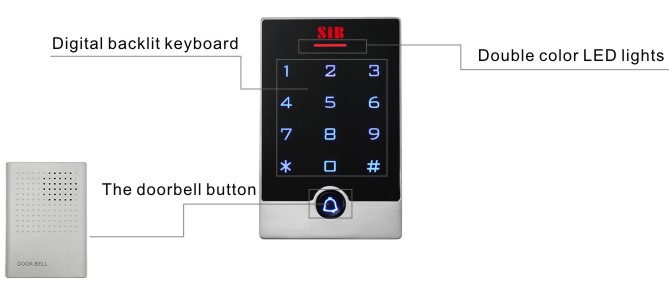

Digital backlit touch keypad

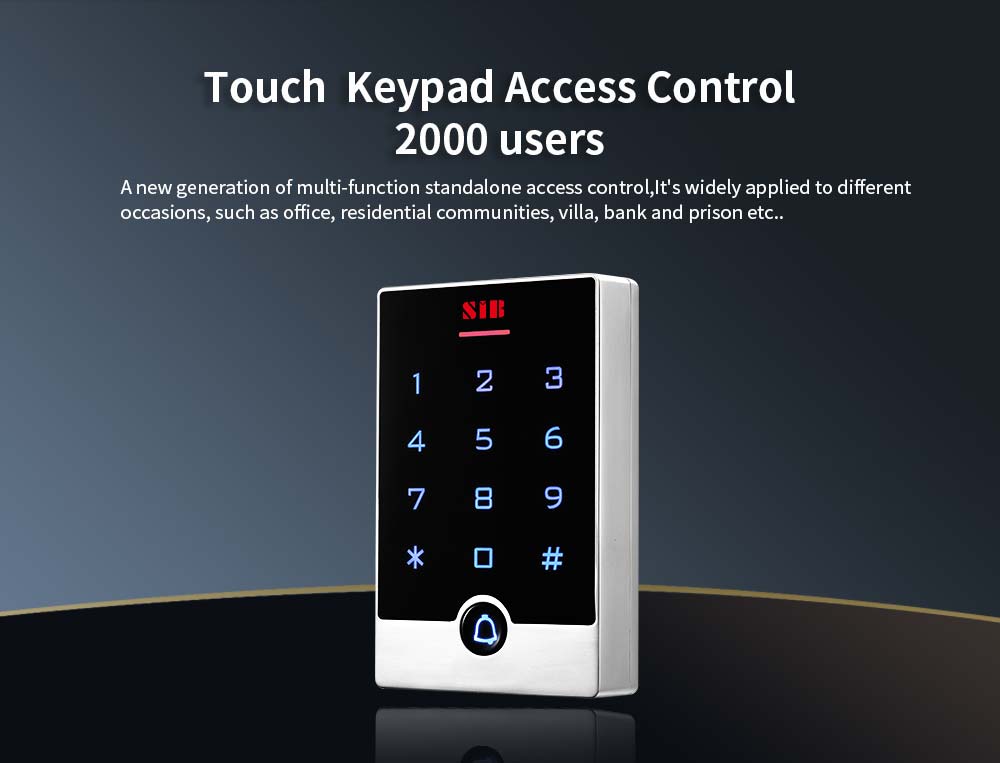

Multi-function standalone access
controller and reader,

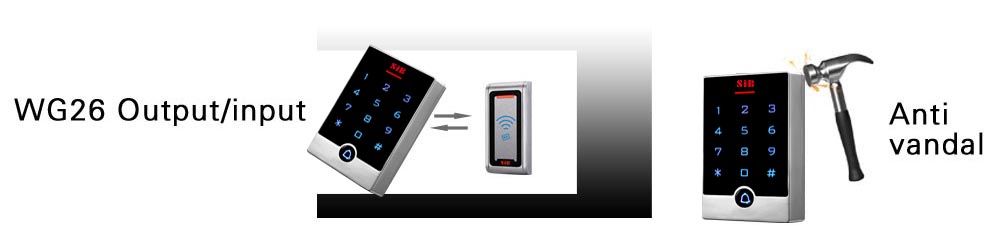

WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password




Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  T15EM
  EM Card 125Khz
Indoor
   Wg26 RFID Label Access Touch Keypad Access Control
SIB
  T15MF
  MF Card 13.56Mhz
Indoor
  Wg26 RFID Wristband Access Touch Panel Gate Entrance
SIB
  T15EM-W
  EM Card 125Khz

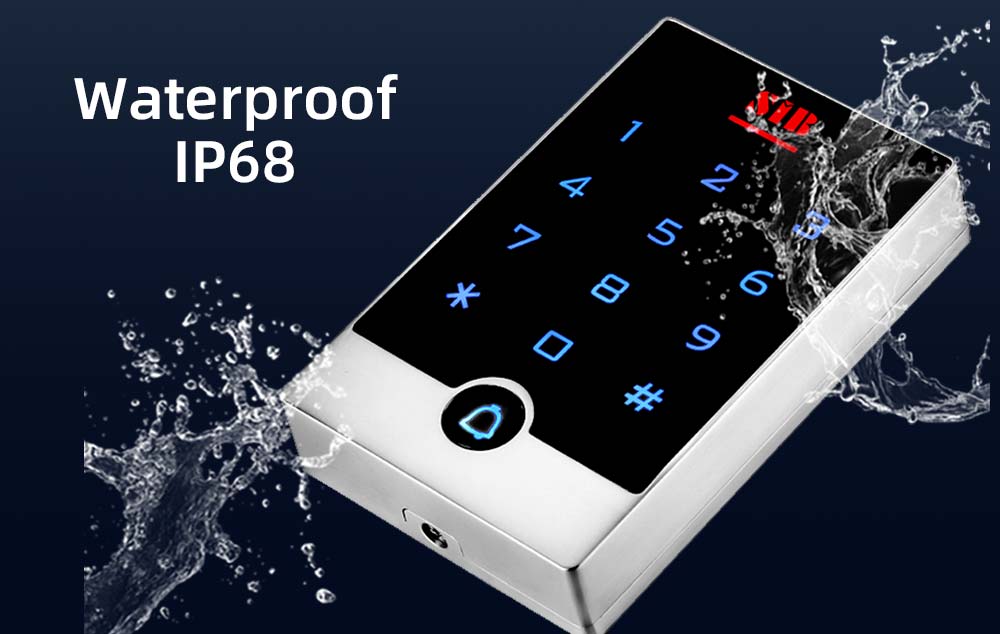

IP68
  Outdoor EM4100 Card Access Control & Keypad Readers
SIB
  T15MF-W
  MF Card 13.56Mhz
IP68
  Waterproof Mifare Keychain Gate Entry & Password Readers













Technical parameters


Card Type:EM/MF

Alarm Output Load:≤20A

Working Voltage:DC12—24V

Idle Current:≤30mA

Reading Range:2—5cm

Operating Temperature:-40~60℃

Operating Humidity:10%—90%

Lock Output Load:≤1A

Door Opening Time:0~99s

Short-circuit Protect:≤100us

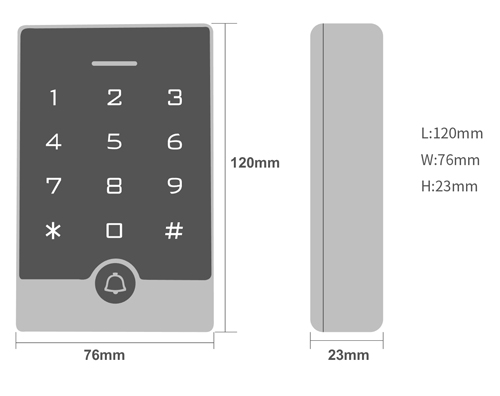

Size & Weight





Package size

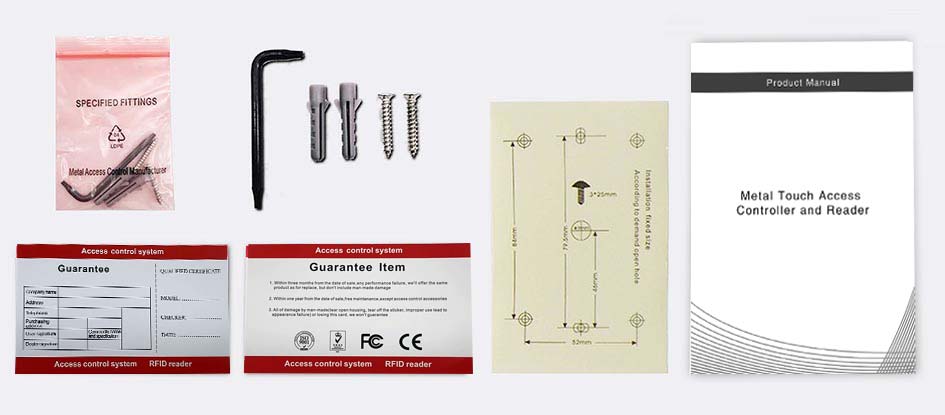

Packing list

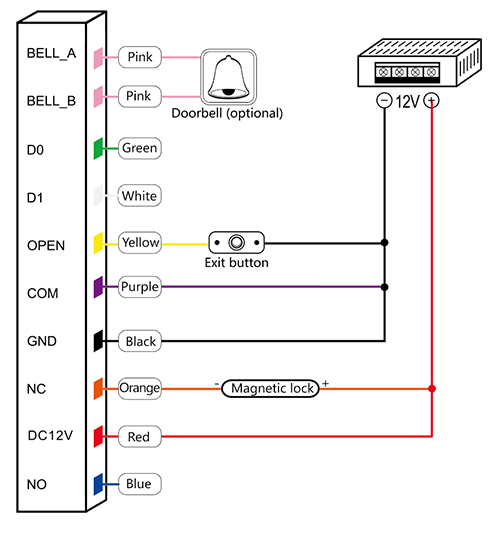

Common power supply diagram

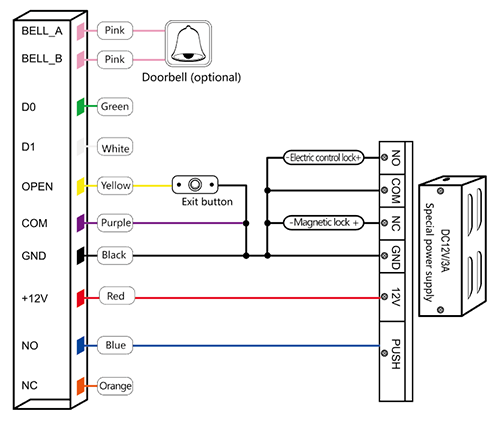

Special power supply diagram

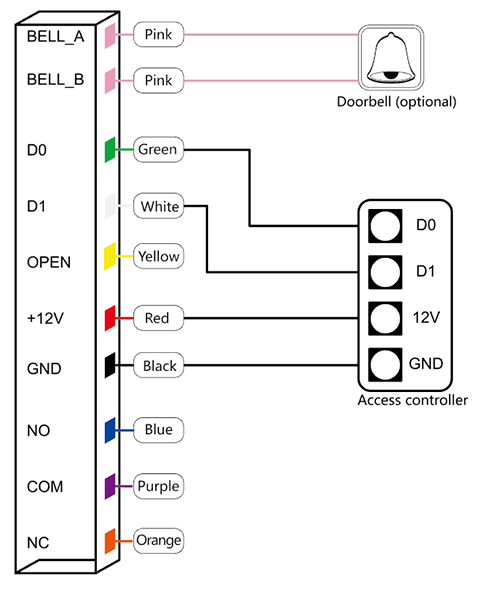

Reader mode
