Product Description
Two relays, supports up to 2000 users in total for two zones
Have 7 working modes
1. Wiegand reader
2. Standalone for single door
1. Standalone for two doors
2. With external reader for two doors
3. Two units interlocked for two doors
4. Anti-passback for single door
5. Anti-passback for two doors.
Waterproof structure design, fit for IP68 waterproof degree

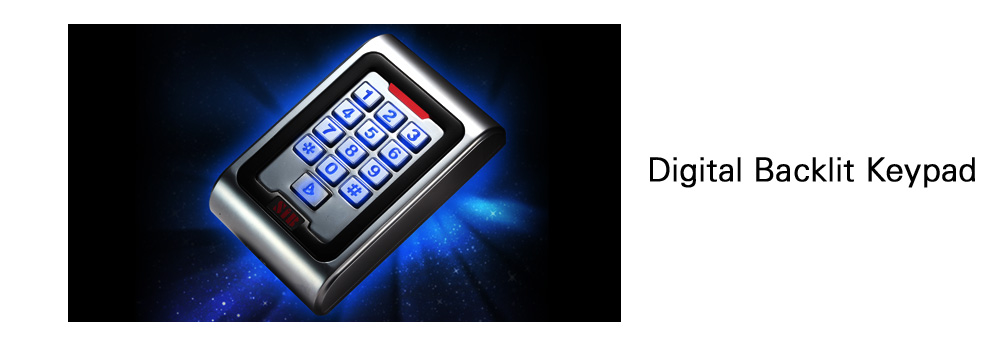

Digital backlit keypad, the backlit can be set to Normal ON,
Normal OFF, or Human-approach
Can add consecutive user cards quickly in one time


Product Version



Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
CC8EM
EM Card 125Khz
IP68
Two Doors Wiegand26 EM 125Khz Door Locker
SIB
CC8MF
MF Card 13.56MHz
IP68
Two Doors Wiegand34 MF 13.56MHz Door Locker
SIB
CC8EH
EM+H Card 125Khz
IP68
Double Doors Wiegand34 EM+HID Door Locker
SIB
CC8MC
Mifare Card 13.56MHz
IP68
Double Relays Wiegand37 Mifare+CPU Door Locker


Technical parameters


Card type:MF.CPU

Capacity: 2,000

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:118 *78*25mm






Size & Weight









Package size








Packing list





Common power supply diagram






Special power supply diagram
