Product presentation

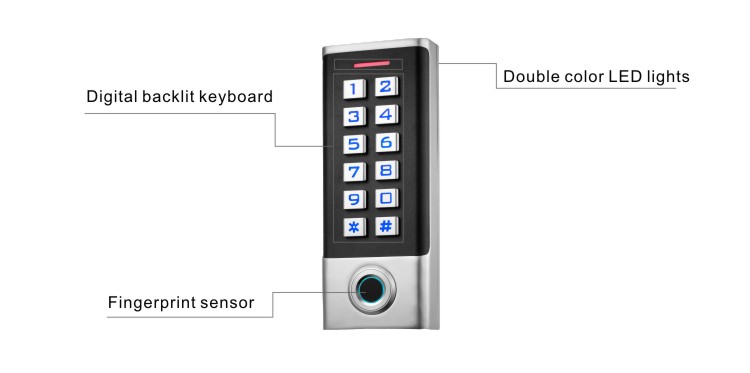

Metal case, anti-vandal

Digital backlit touch keypad

Multi-function standalone access

controller and reader,WG26 output/Input
Capacity: 10,000 cards/ codes&300fingerprints

Three way to open the door:card, code,fingerprint



Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  KF1EM
  EM Card 125Khz
Indoor
  Metal Keypad RFID Access Fingerprint Access Control
SIB
  KF1MF
  MF Card 13.56Mhz
Indoor
  Metal Keypad Mifare Card Biometric Access Control
SIB
  KF1EM-W
  EM Card 125Khz
IP68
  Waterproof Metal Keypad Fingerprint Access Control
SIB
  KF1MF-W
  MF Card 13.56Mhz
IP68
  Outdoor Antivandal Biometric Access Control






Technical parameters


Card type:EM/MF/HID/CPU

Capacity: 10000cards/codes&300fingerprints

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 0~99s

Dimension:152 *60*24mm





Package size





Packing list
