Product presentation

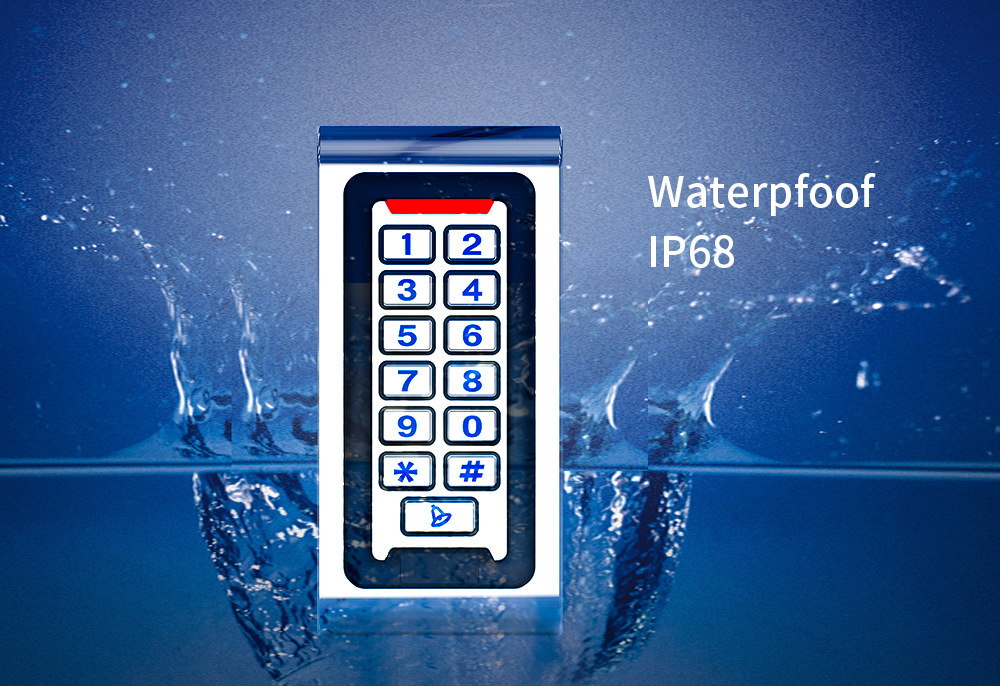

Waterproof Degree: IP68

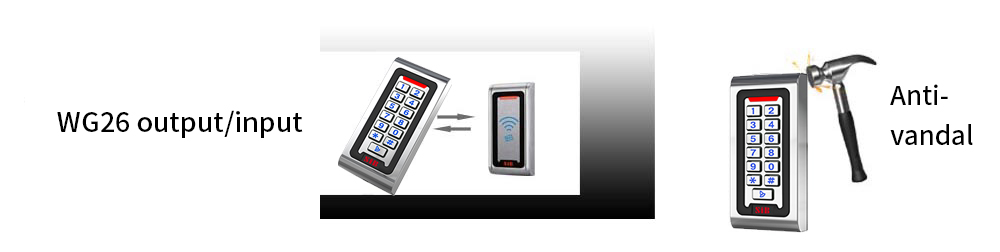

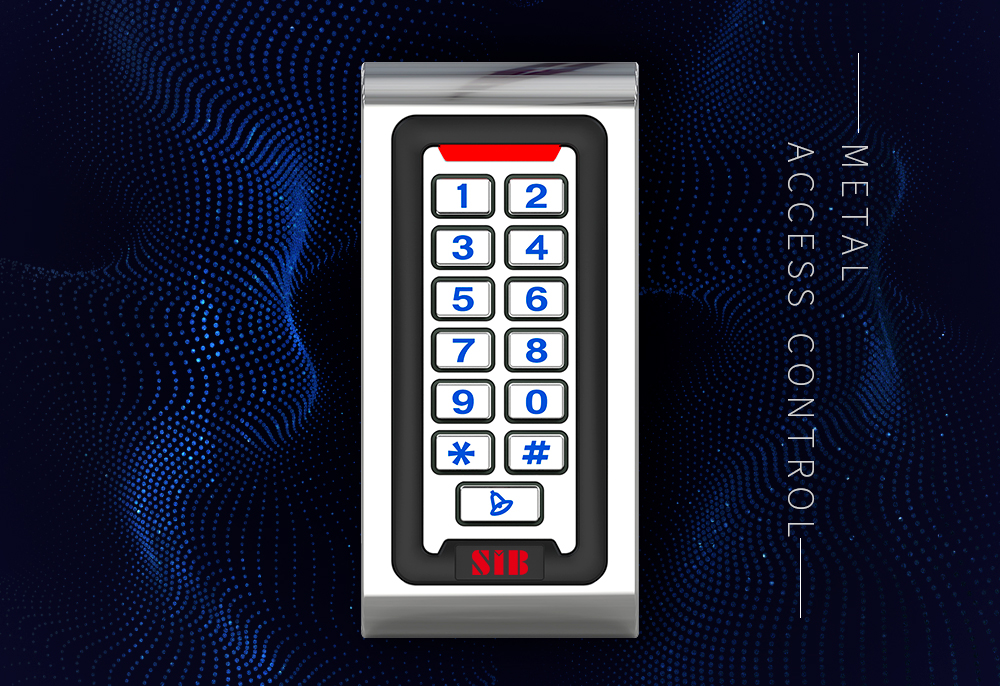

Metal structure design, anti-vandal

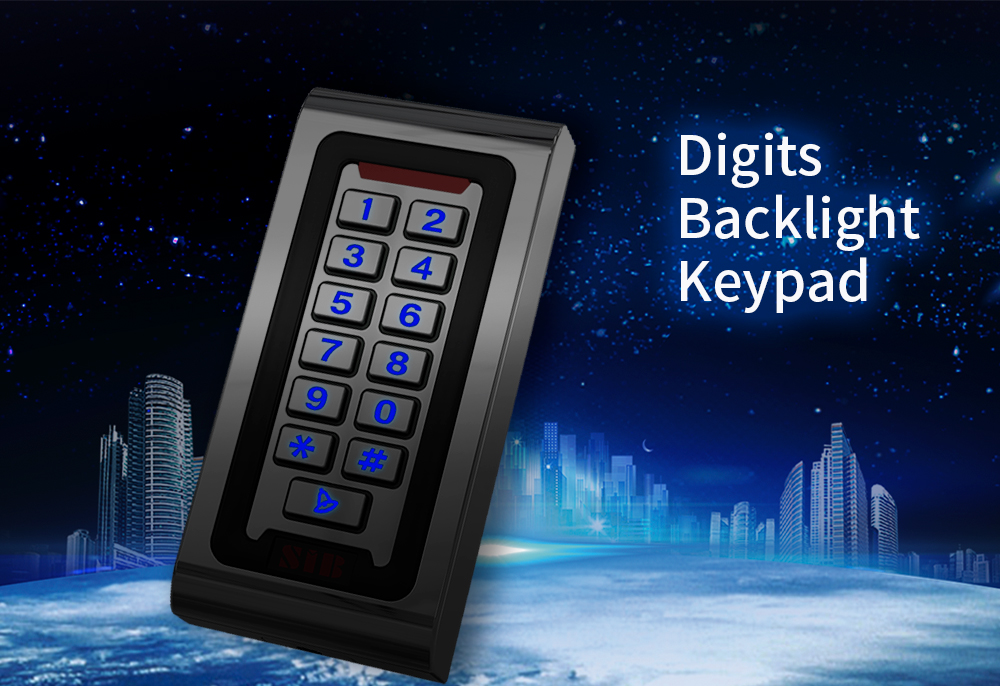

Digital backlit keyboard

All-in-one, WG26 output/input

User capacity: 2000 card user card, 2000 user password

Three way to open the door, card, password, card + passwor

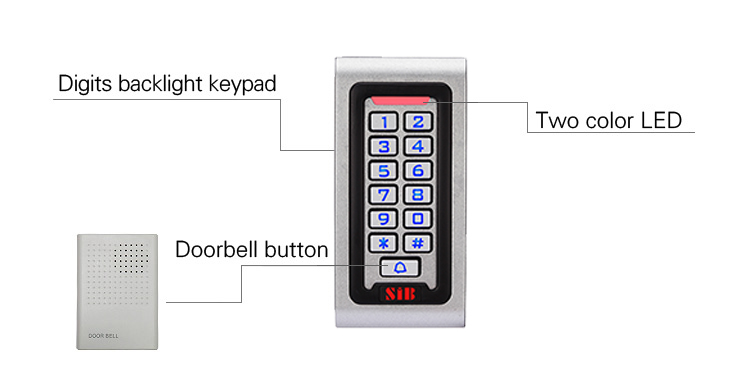

The doorbell button and interface: buttons and isolation circuit

Connect to any external bell



Product Version




Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
 S601EM
 EM Card 125Khz
Indoor
 Mullion EM Metal Keypad Access Control
SIB
 S601MF
 MF Card 13.56Mhz
Indoor
 Mullion Mifare Metal Code Access Control
SIB
 S601EM-W
 EM Card 125Khz
IP68
 Waterproof Single Gang Keypad Gate Entry
SIB
 S601MF-W
 MF Card 13.56Mhz
IP68
 Waterproof Single Gang Keypad Door Entry





Technical parameters


Card type:EM/MF

Waterproof degree:IP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:120 *56*20mm






Size & Weight





Package size








Packing list:





Common power supply diagram






Special power supply diagram
