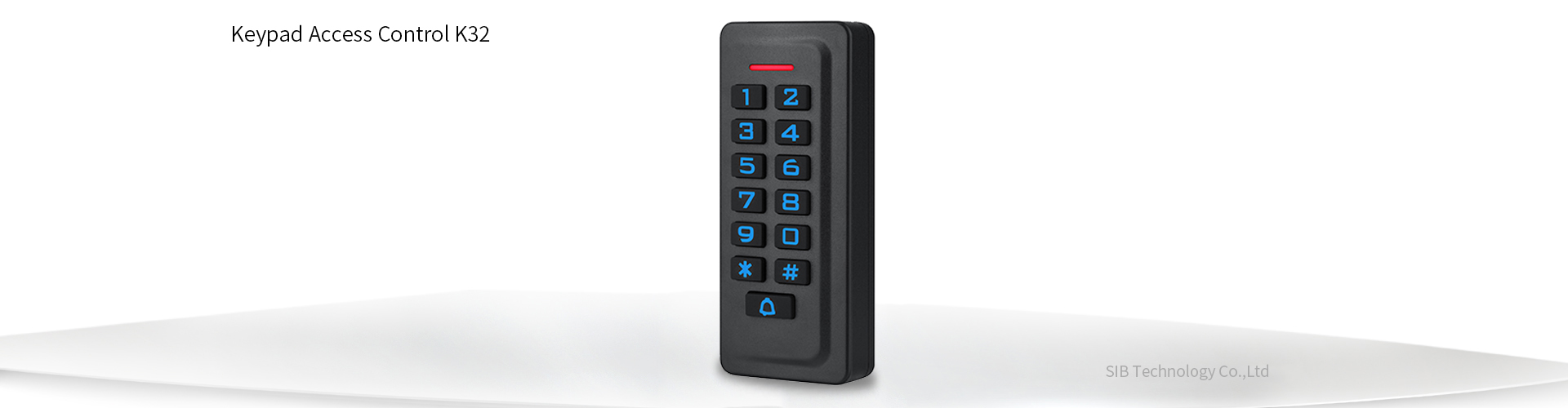

Product presentation

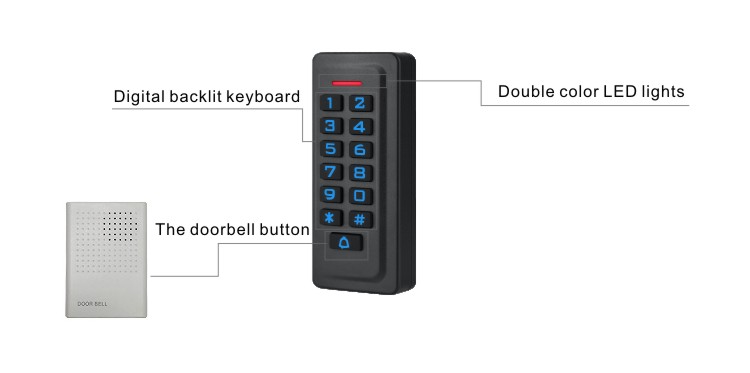

Digital backlit keypad

Multi-function standalone access controller and reader,

WG26 output/Input

Capacity: 2000 cards/ codes

Access ways:card,code,card+code


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
 K32EM
 EM Card 125Khz
Indoor
 Proximity Card Reader & Keypad Door Entry
SIB
 K32MF
 MF Card 13.56Mhz
Indoor
 Gate Card Reader & Keypad Gate Entry
SIB
 K32EM-W
 EM Card 125Khz
IP68
 Waterproof EM4100 RFID Door Entry Panels
SIB
 K32MF-W
 MF Card 13.56Mhz
IP68
 Rainproof Mifare Card Door Entry Sytems


Technical parameters


Card type:EM/MF/HID/CPU

Plastic case

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:109*45*22mm







Package size

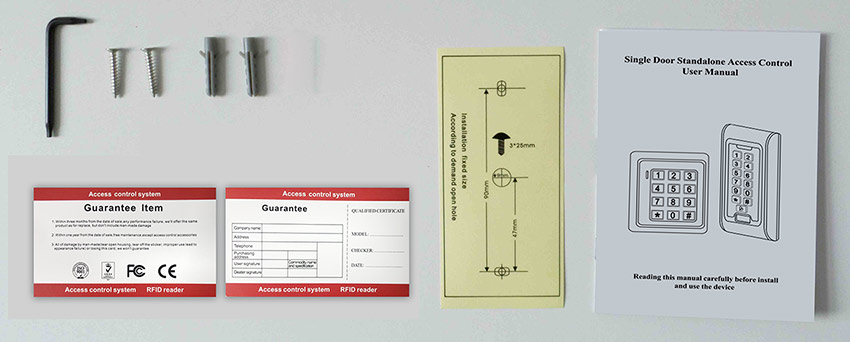

Packing list





Common power supply diagram






Special power supply diagram
