Product Description


Multi-function standalone device, can be

used as WG26 card reader

Capacity: 2000 card users, 2000 PIN users

Three door open methods: card, code, card+code

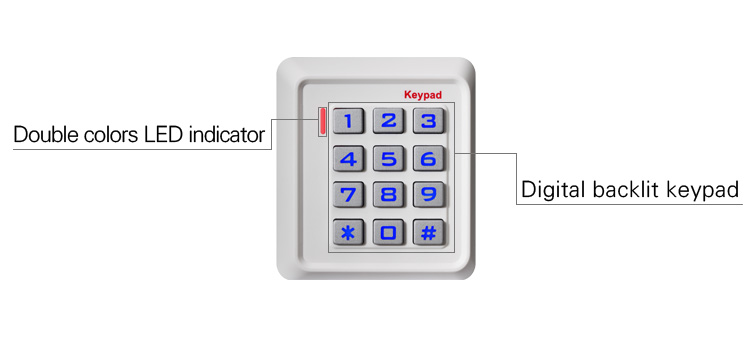

Backlit keypad: Can operate keyboard in dark night


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
K30EM
EM Card 125Khz
Indoor Silicon Keys One Door Access Controller
SIB
K30MF
MF Card 13.56Mhz
Indoor
Silicon Gigital Keypad Door Entry Systems


Technical parameters


Card type:EM/MF

Capacity: 2,000

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:92 *81*20mm

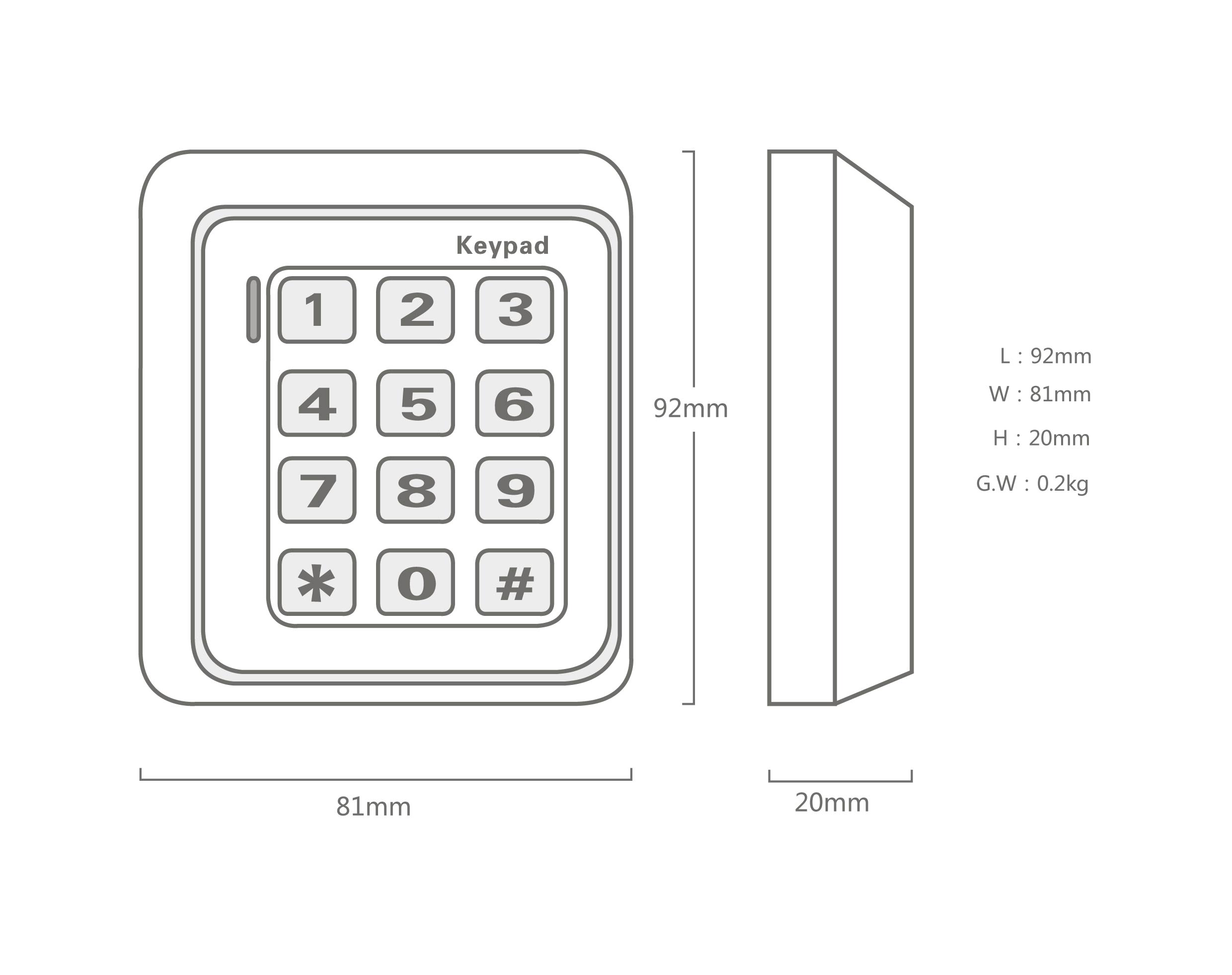

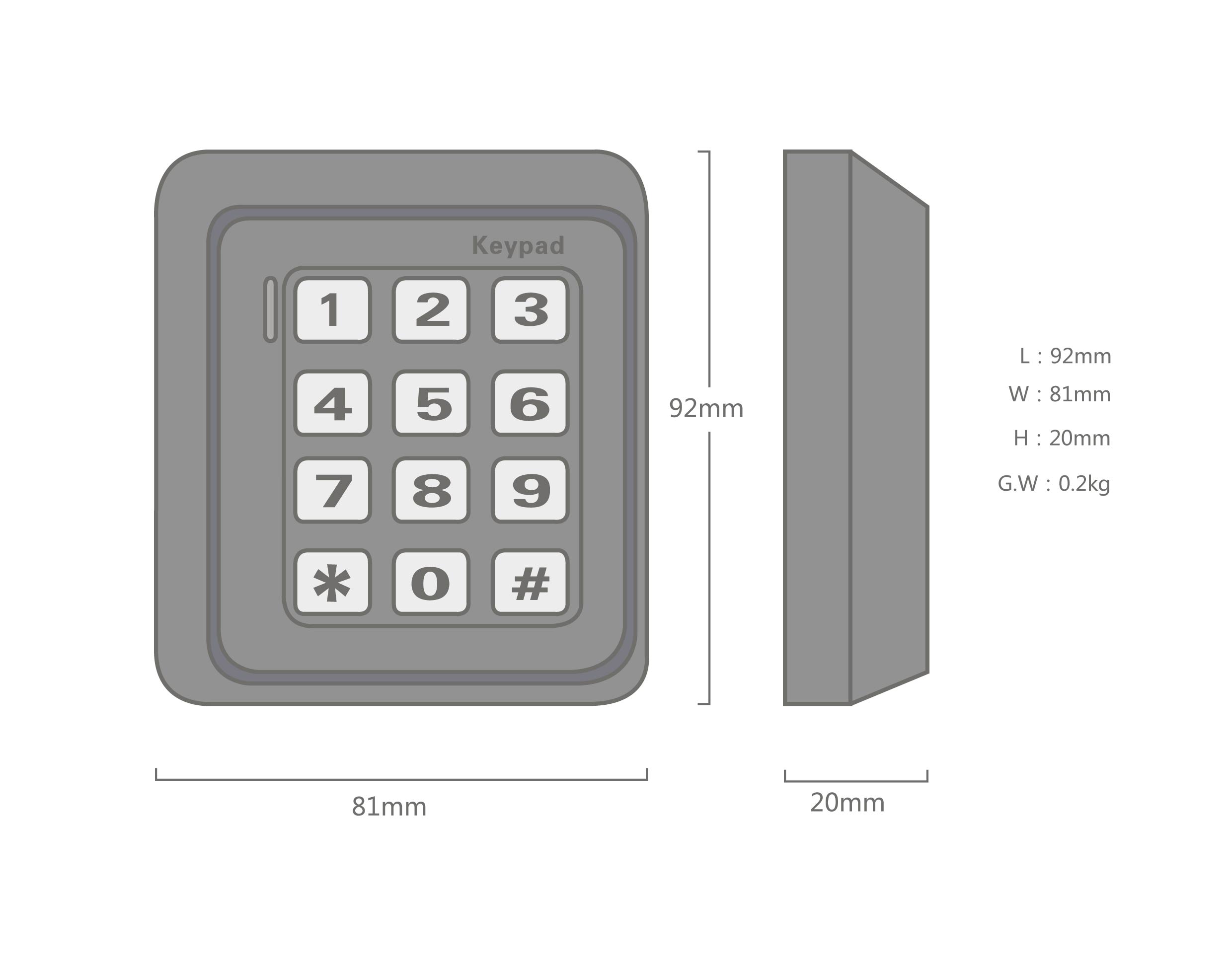

Size & Weight









Package size

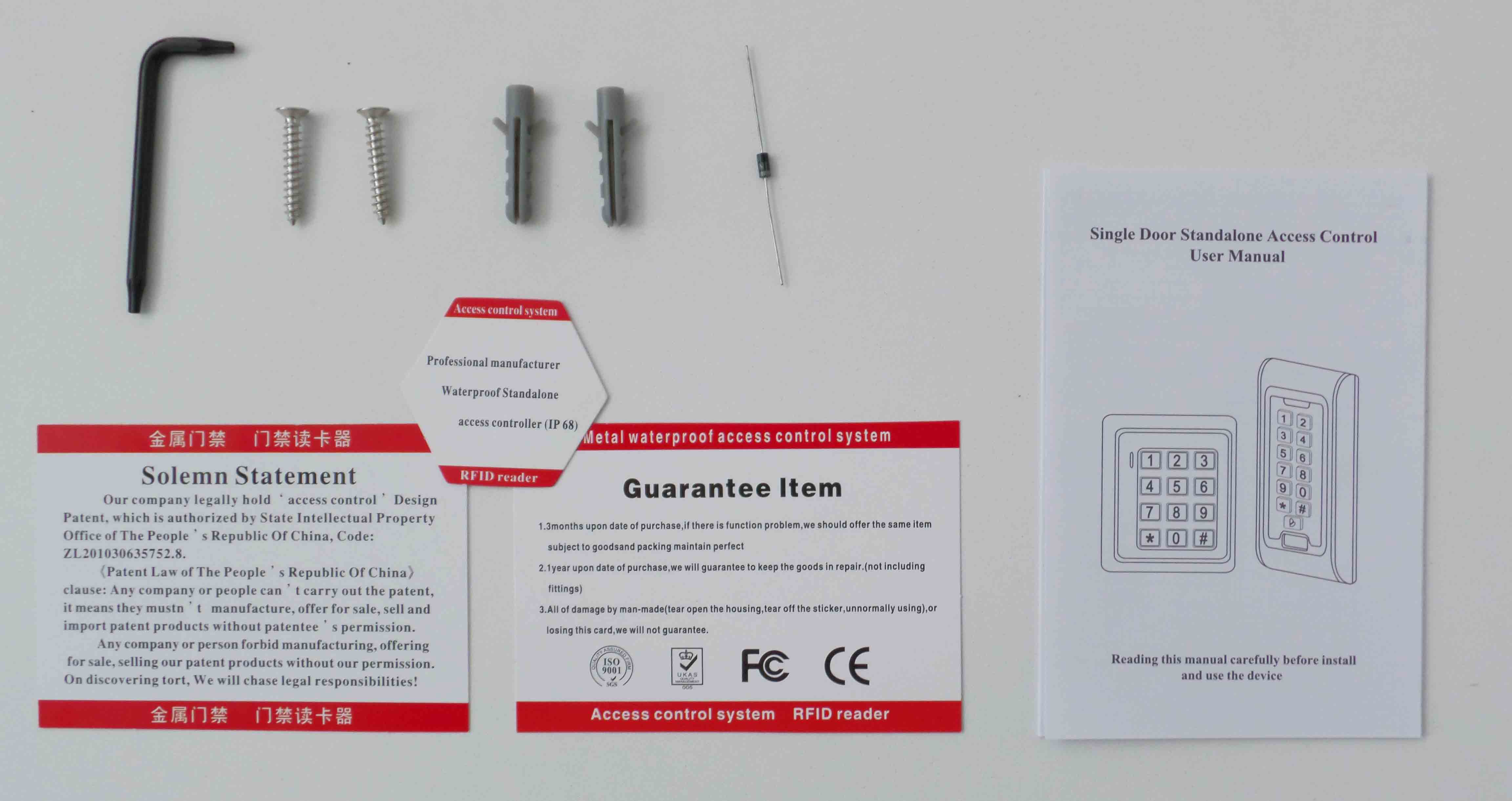

Packing list

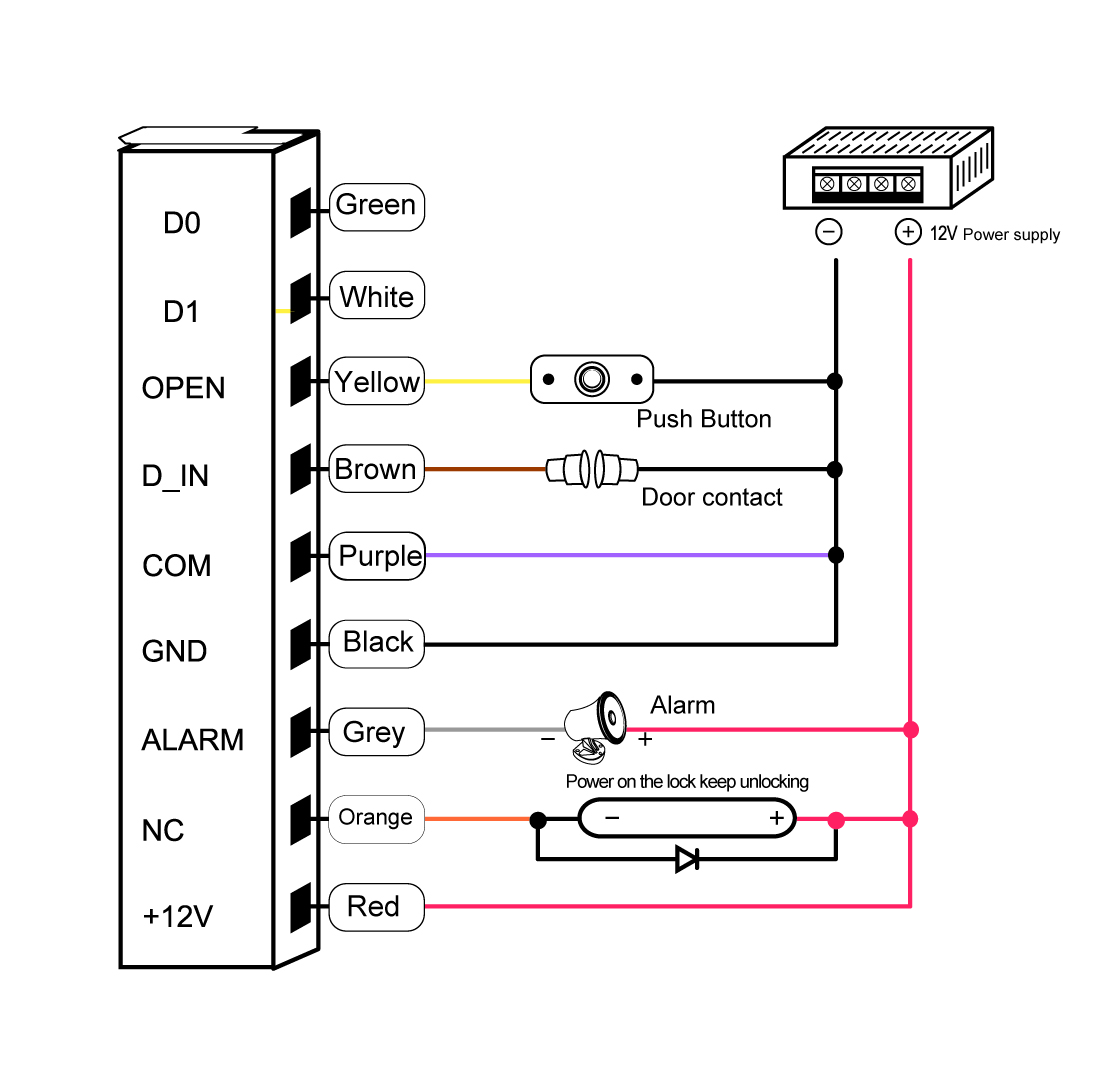

Common power supply diagram

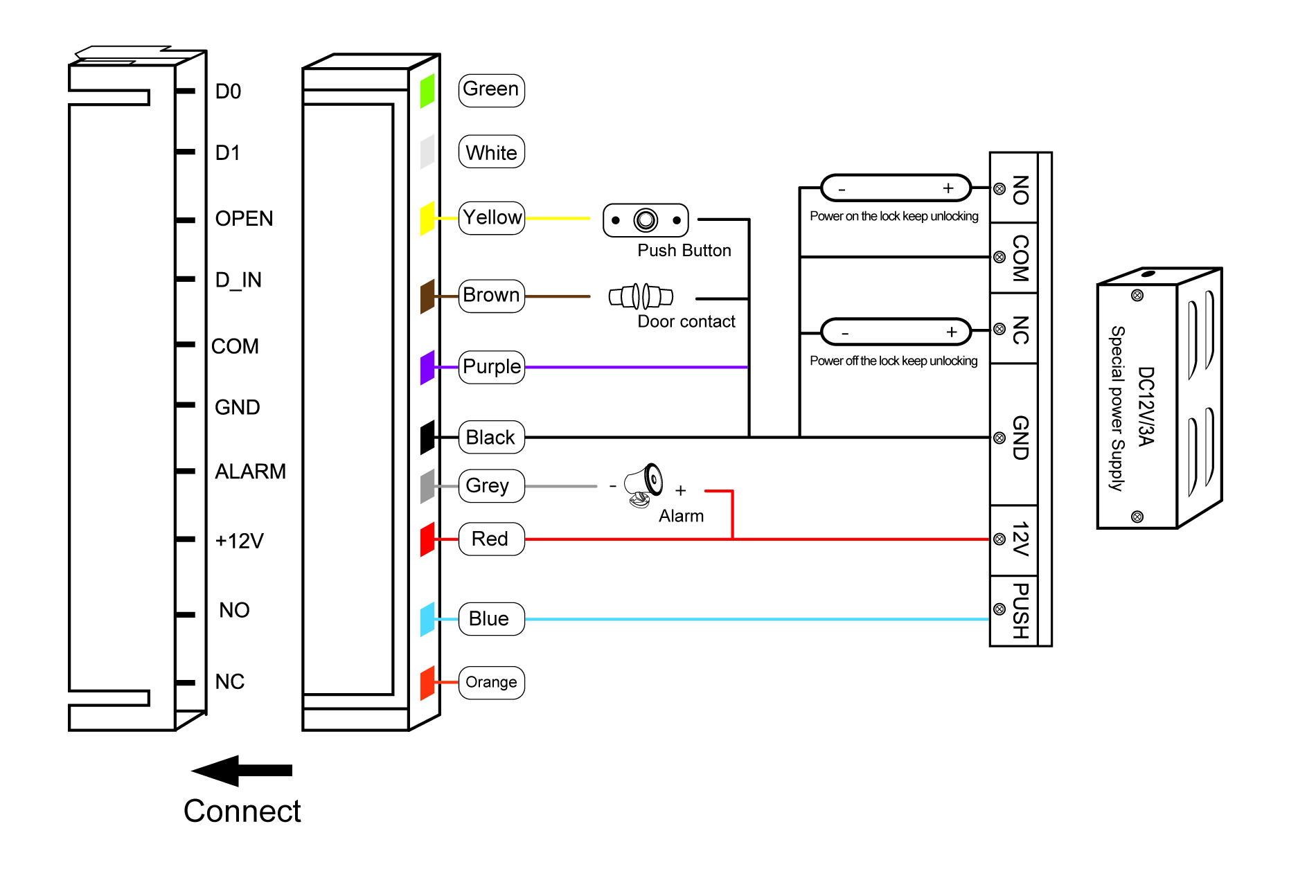

Special power supply diagram
