Product Description

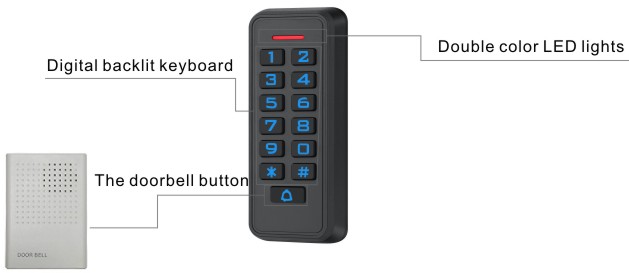

Digital backlit keypad
Multi-function standalone access controller and reader,
WG26 output/Input
Capacity: 2000 cards/ codes
Access ways:card,code,card+code,mobile APP


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K33EM
  EM Card 125Khz
Indoor
  Tuya App Keypad Access Control
SIB
  K33MF
  MF Card 13.56Mhz
Indoor
  Tuya Smart  wifi Access Control
SIB
  K33EM-W
  EM Card 125Khz
IP68
  Waterproof Keypad Door Entry with Tuya App
SIB
  K33MF-W
  MF Card 13.56Mhz
IP68
  Waterproof Tuya Door Access Control







Technical parameters


Card type:EM/MF/HID/CPU

Plastic case

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:111 *46*22mm






Package size

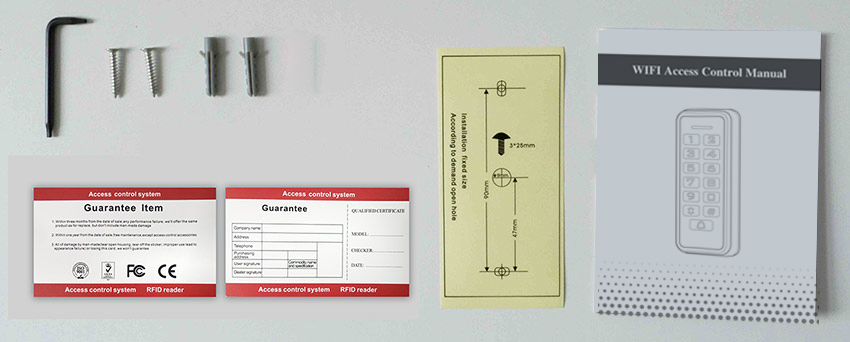

Packing list





Common power supply diagram






Special power supply diagram
