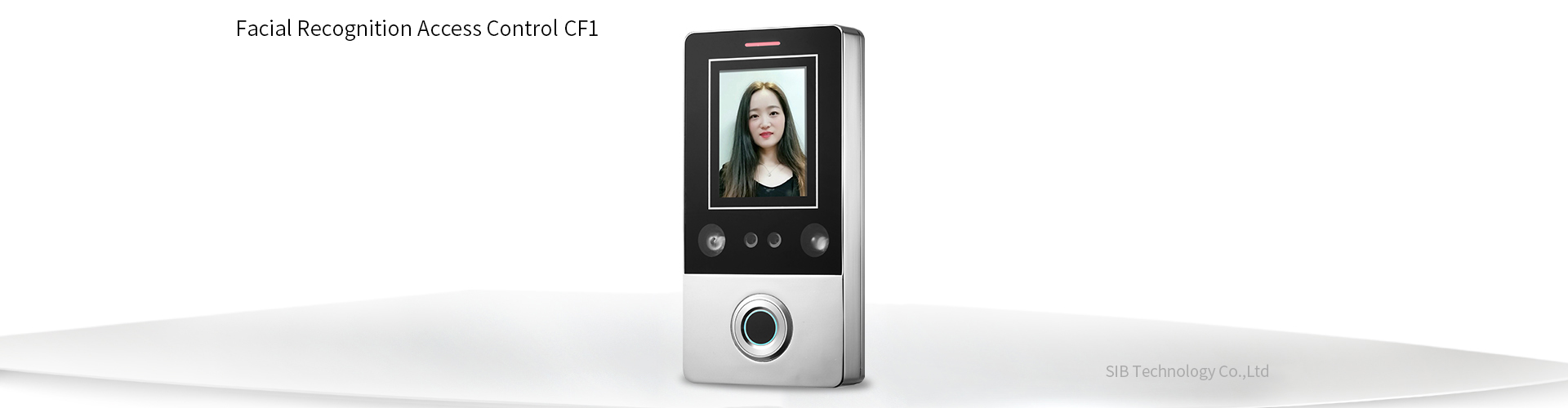

Face Detection Fingerprint Access Control CF1 - Facial Recognition Access Control

sbwy@sbwy.net 0086-755-26510155

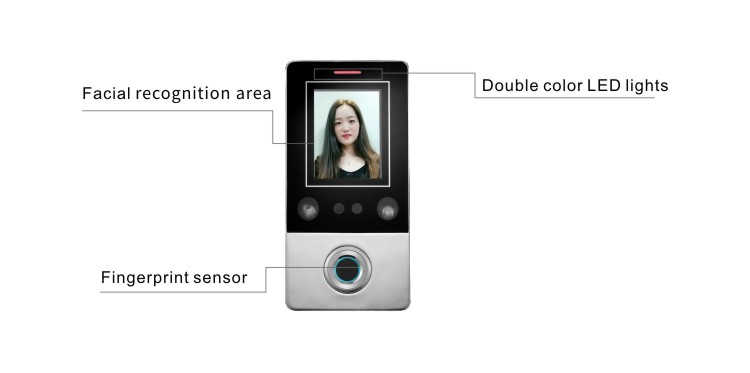

Product presentation

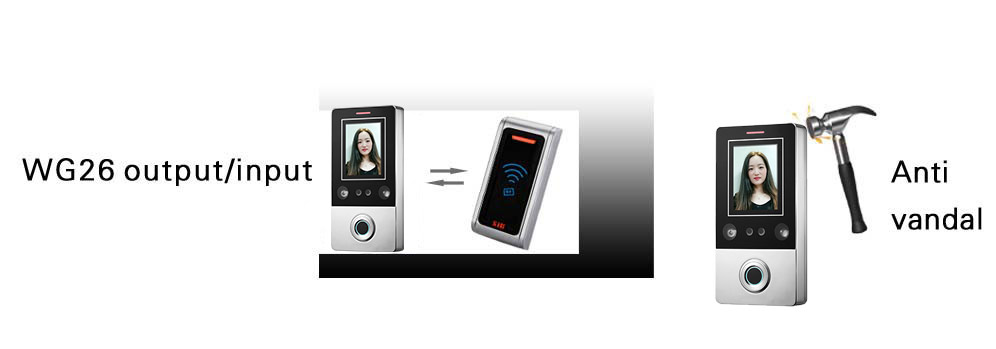

Metal case, anti-vandal

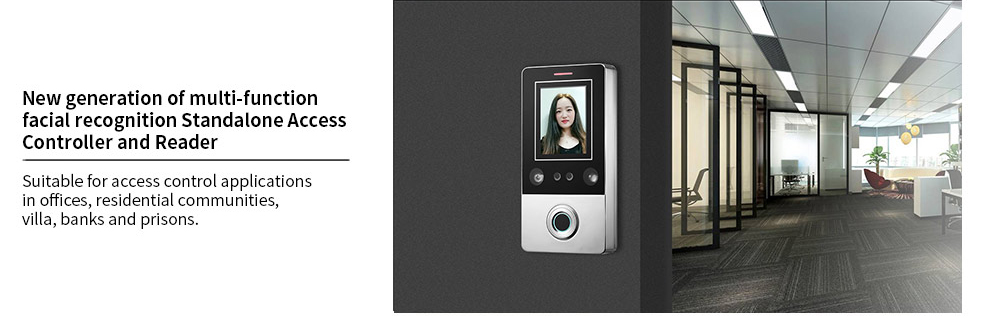

Multi-function standalone access controller and reader,

WG26 output/Input

Capacity: 1000 facial users，300 fingerprints，10,000cards

Access ways：facial recognition，fingerprint，card

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	CF1EM	EM Card 125Khz	Indoor	Face Detection & Fingerprint Access Control
SIB	CF1MF	MF Card 13.56Mhz	Indoor	Face Recognition & Biometric Access Control

Technical parameters

Card type：EM/MF

Short-cicruit Protect Time:≤100μs

Environment Humidity：10%～90%

Lock output：≤1A

Working voltage：DC12V

Static electricity：≤350mA

Alarm output：≤20A

Operating Current：≤100mA

Card read distance：2～5cm

Ambient temperature：-40℃～60℃

Door Opening Time: 0～200s

Dimension：139 *70*22mm

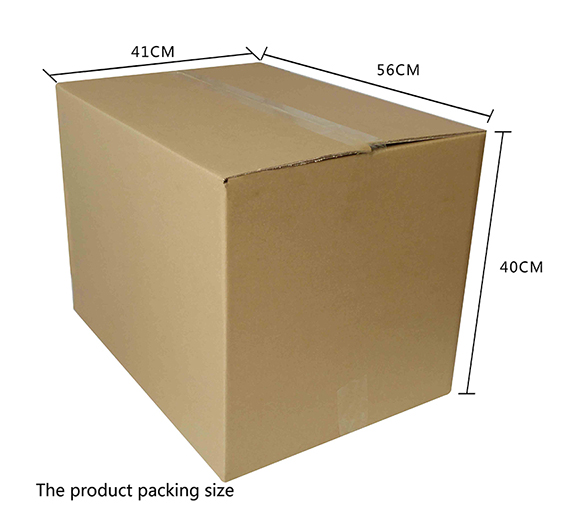

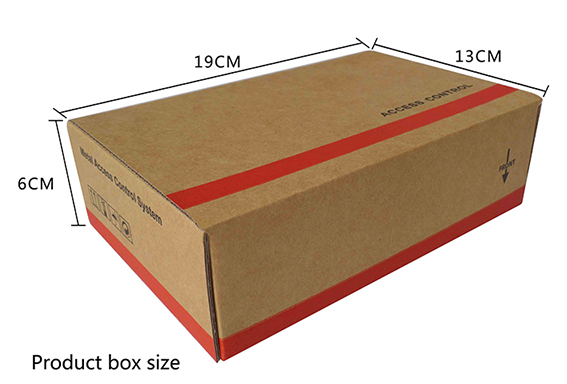

Package Size

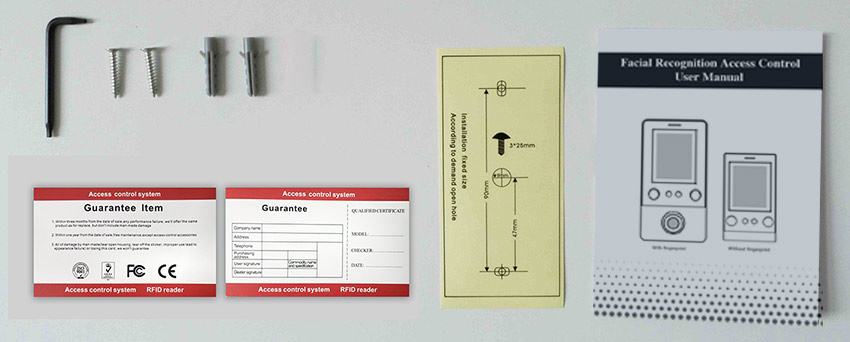

Packing List
