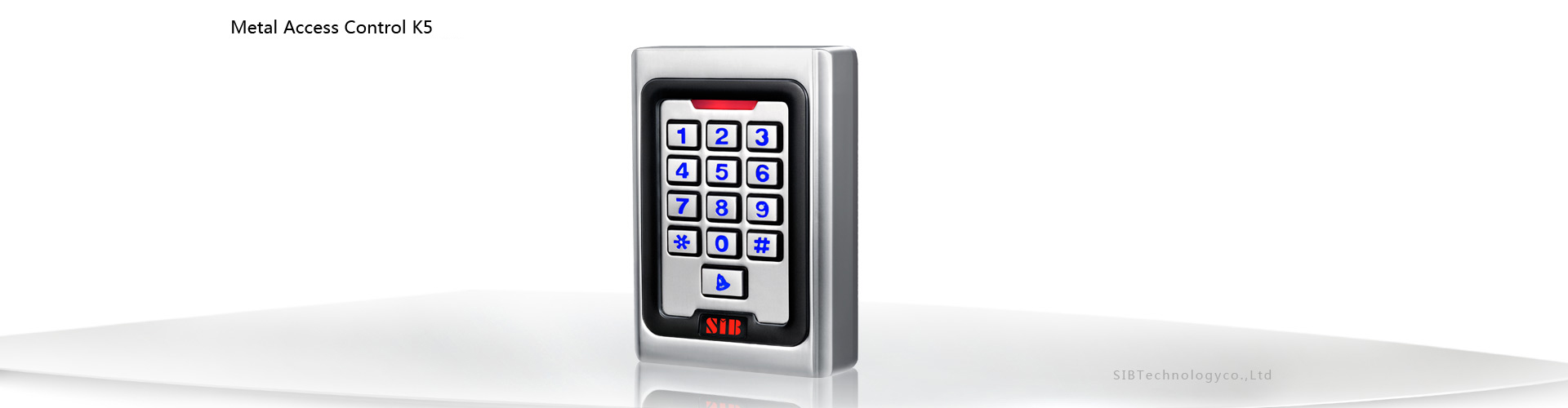

Product presentation


Metal case, anti-vandal

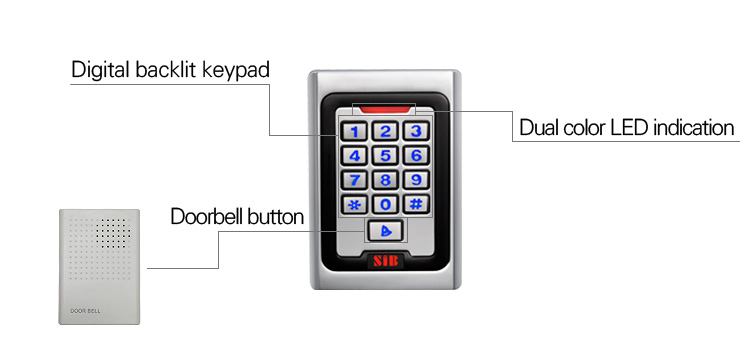

Digital backlit keypad

Multi-function standalone access controller and reader, can

be used as WG26 reader

Capacity: 2000 cards/ codes

Three accesses: card, pin, card+pin

WG interface: WG26 Input/output Doorbell support and interface: button and circuit segregate,

any doorbell can be connected


Product Version



Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K5EM
  EM Card 125Khz
Indoor   Active RFID Tag Metal Keypad Gate Entry
SIB
  K5MF
  MF Card 13.56Mhz
Indoor
  Mifare Tag Metal Keypad Door Entry



Technical parameters


Card type:EM/MF

Capacity: 2,000

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:110 *75*25mm

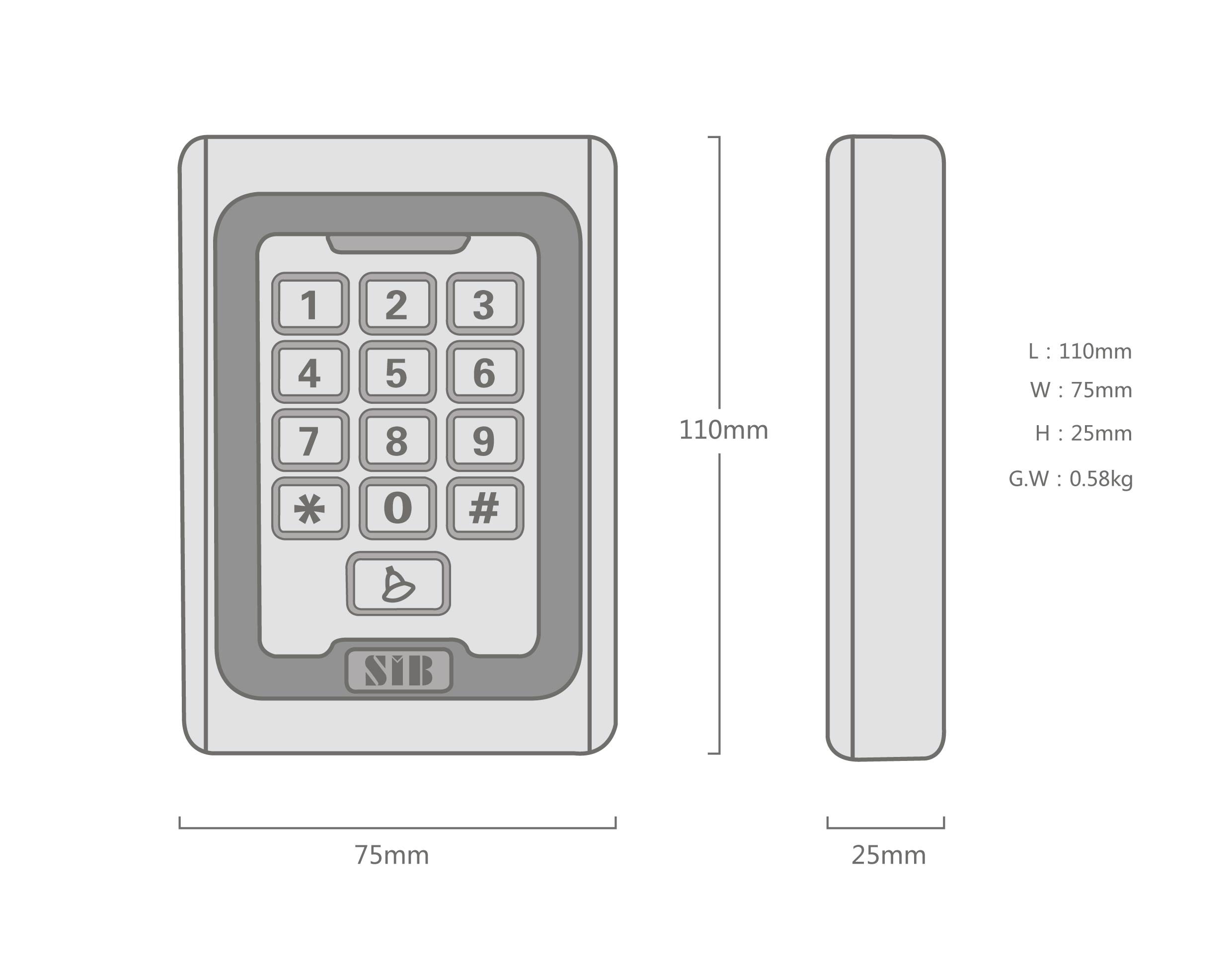

Size & Weight









Package size

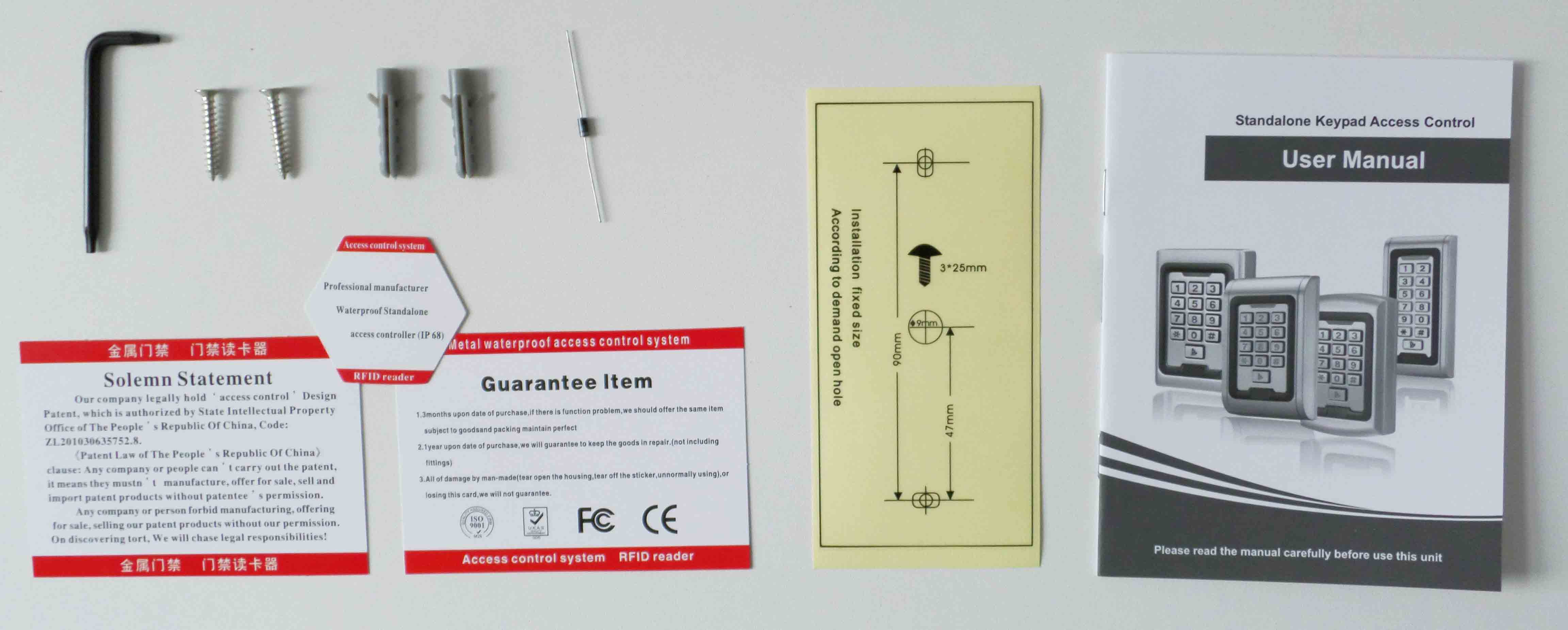

Packing list





Common power supply diagram






Special power supply diagram





Click to download
