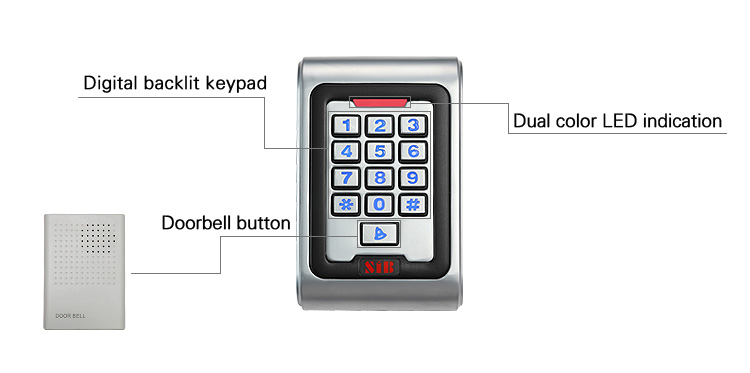

Product presentation

Rainproof, moistureproof, durable
Capacity: 10,000 card users
Can be used as WG26 reader
Can connect external EM/HID WG26 output reader
Two units can be interlocked
Can realize Anti-passback function for single or two doors
Can add consecutive user cards

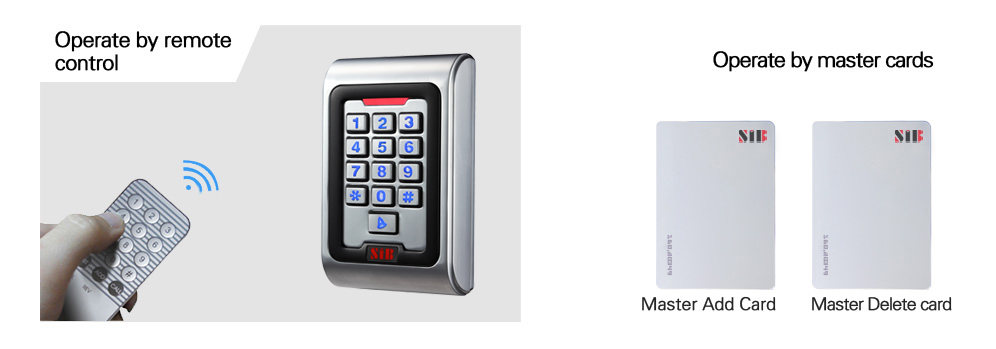

Can set master add card/master delete card



Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
MK8EM
EM Card 125Khz
Indoor
Large Memory EM 125KHZ Keypad Access Control
SIB
MK8EH
EM+H Card 125Khz
Indoor
Large Capactity EM+HID Code Access Control
SIB
MK8EM-W
EM Card 125Khz
IP68
Waterproof RFID Card 125khz Keypad Access Control
SIB
MK8EH-W
EM+H Card 125Khz
IP68
Outdoor RFID Tag 13.56Mhz Code Access Control



Technical parameters


Card type:EM,HID

Waterproof: IP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS
Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:118 *78*25mm

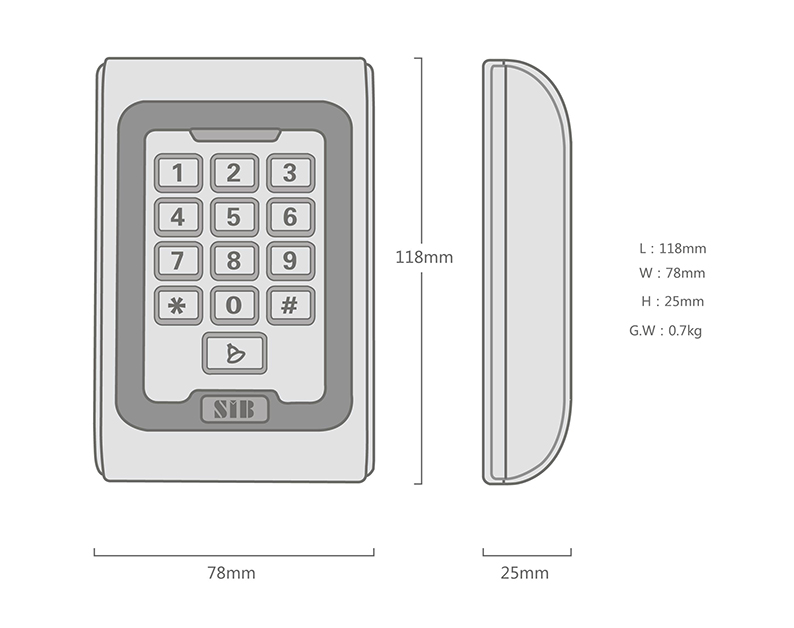

Size & Weight

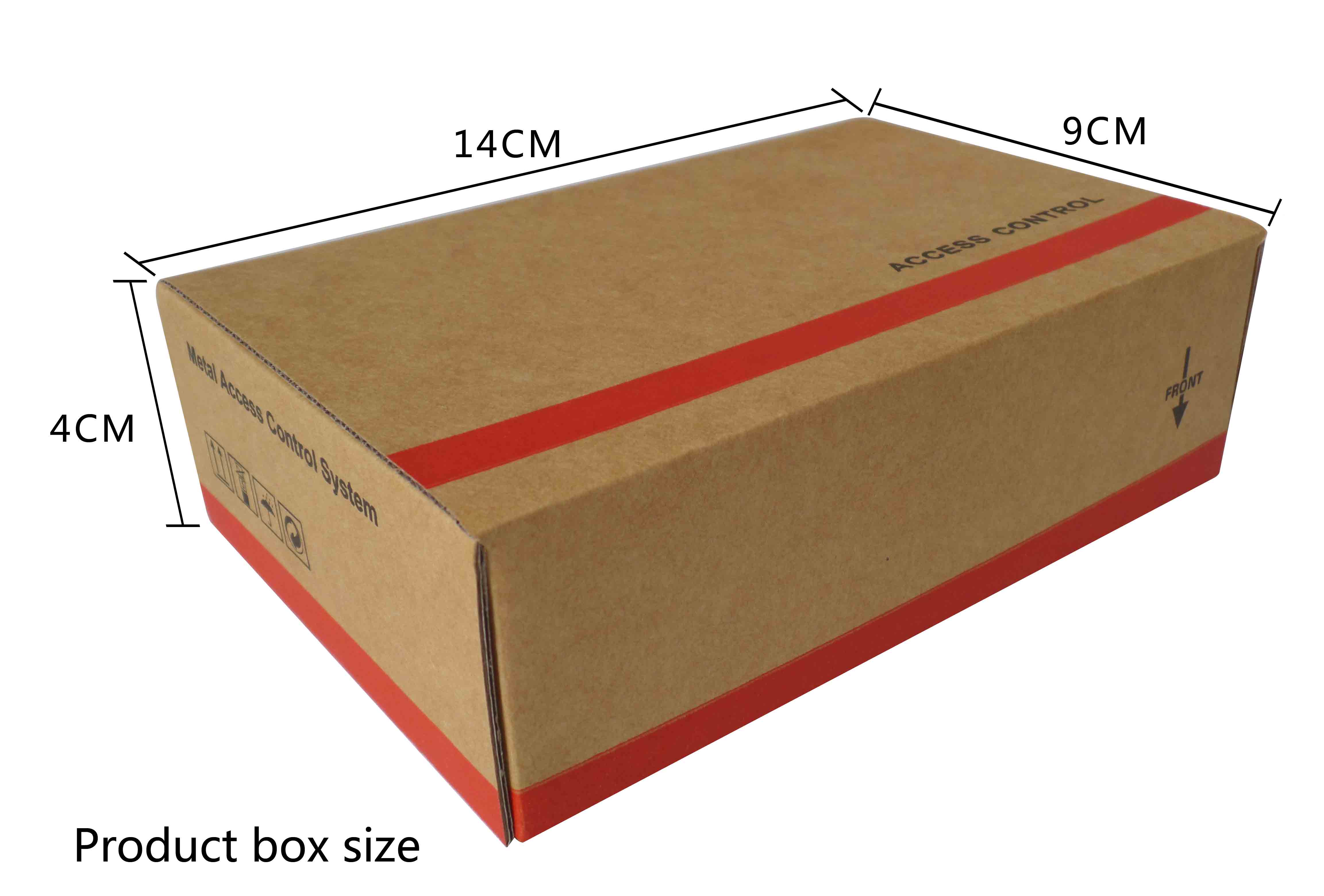

Package size

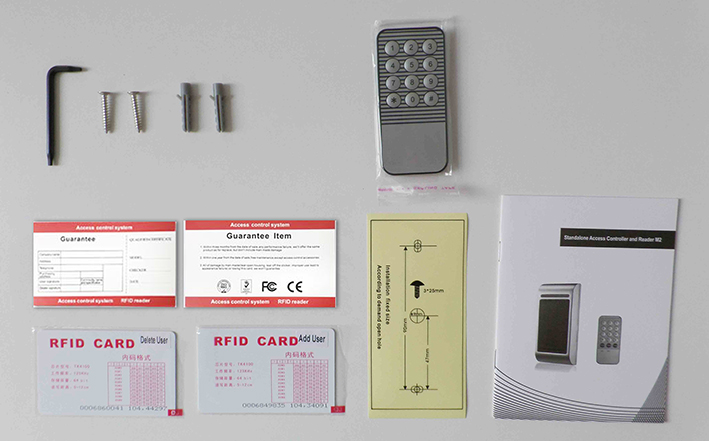

Packing list

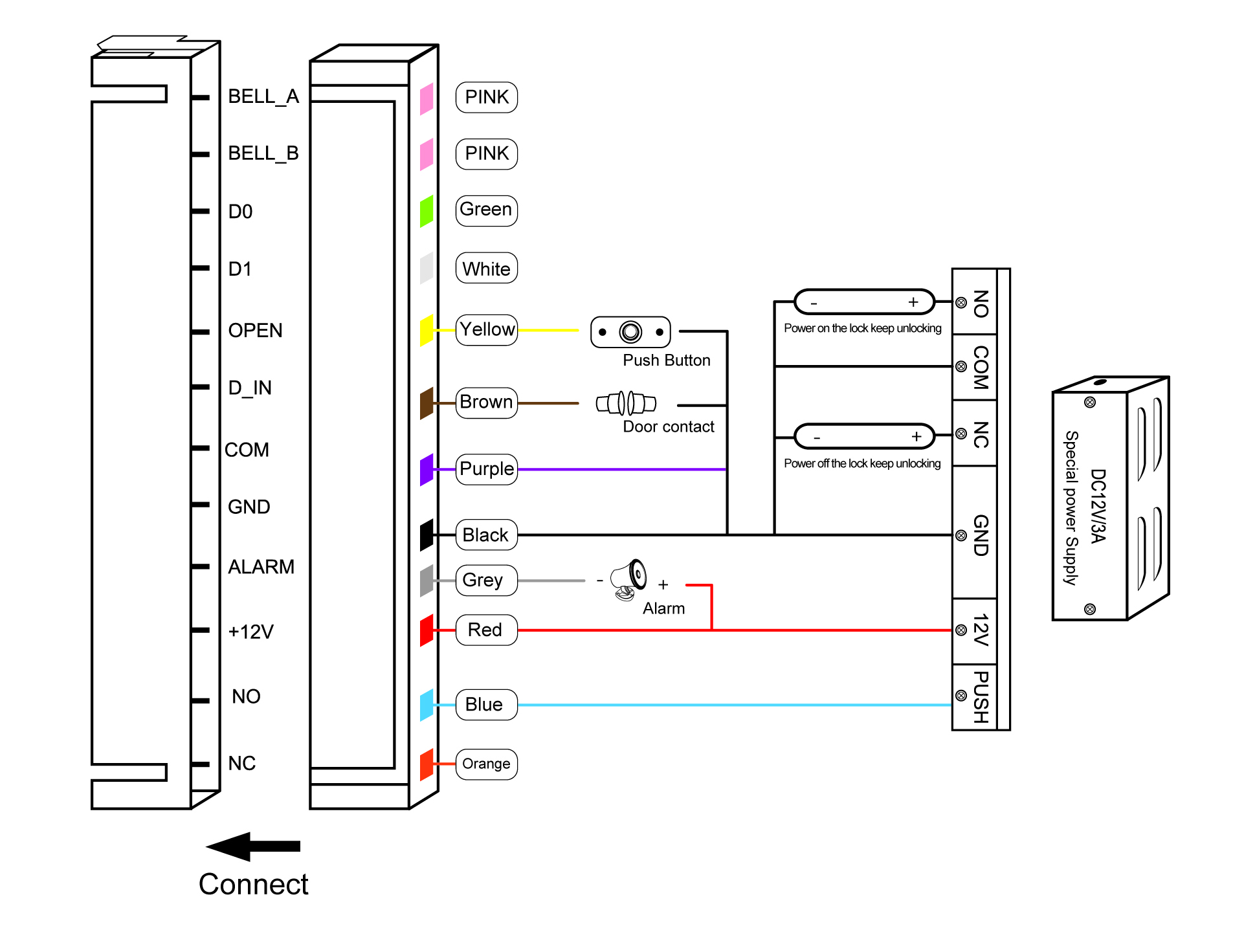

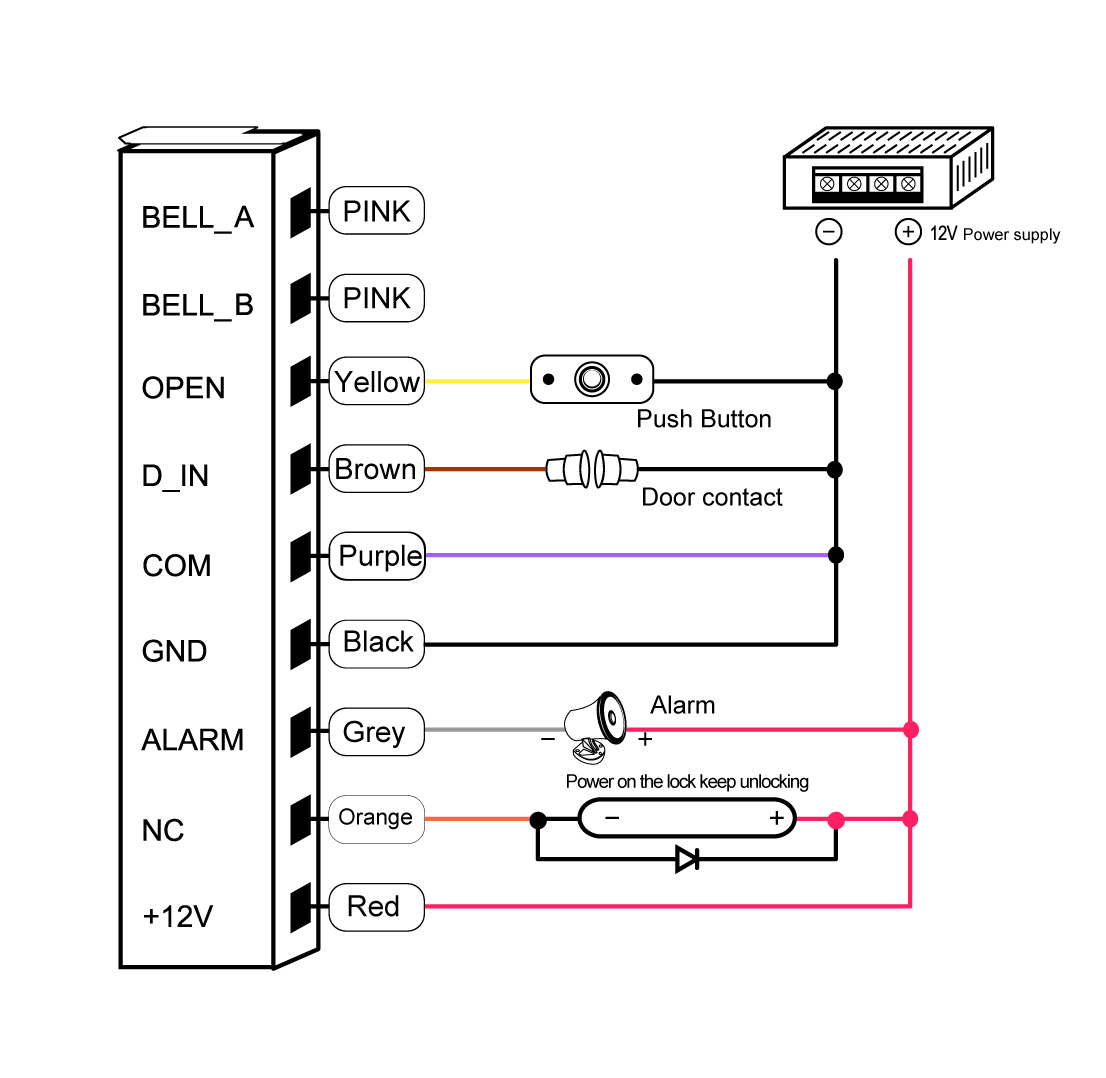

Common power supply diagram






Special power supply diagram
