Product presentation


Waterproof rate: IP68

Metal case,anti-vandal

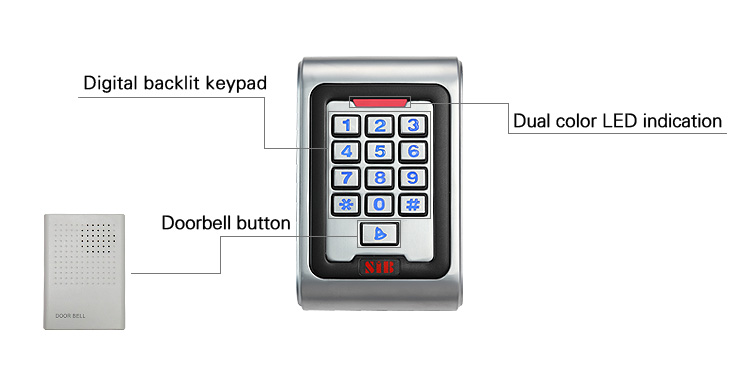

Digital backlit keypad

Multi-function standalone access controller and reader,

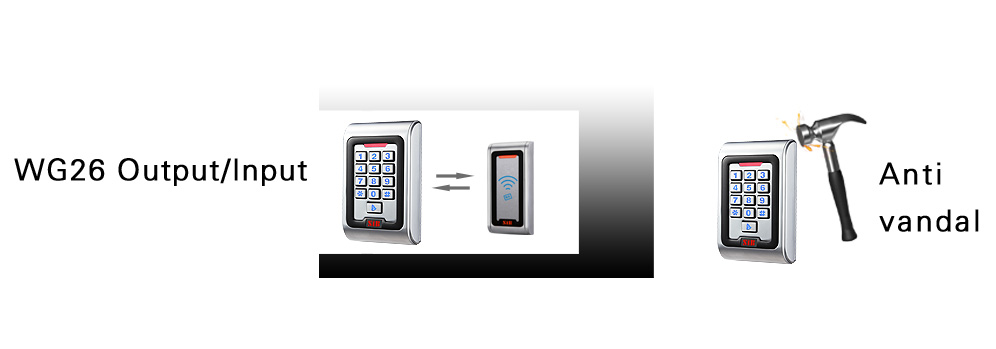

WG26 output/Input

Capacity: 2000 cards/ codes

Doorbell support and interface: button and circuit segregate,

any doorbell can be connected





Product Version



Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K8EM
  EM Card 125Khz
Indoor
  RFID Keyfobs Digital Keypad Access Control
SIB
  K8MF
  MF Card 13.56Mhz
Indoor
  Mifare Tag PIN Readers & Access Controller
SIB
  K8EM-W
  EM Card 125Khz
IP68
  Waterproof EM Card Access Code Access Control
SIB
  K8MF-W
  MF Card 13.56Mhz
IP68
  Rainproof Mifare Wristband Keypad Door Entry









Technical parameters


Card type:EM/MF

Waterproof degree:IP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

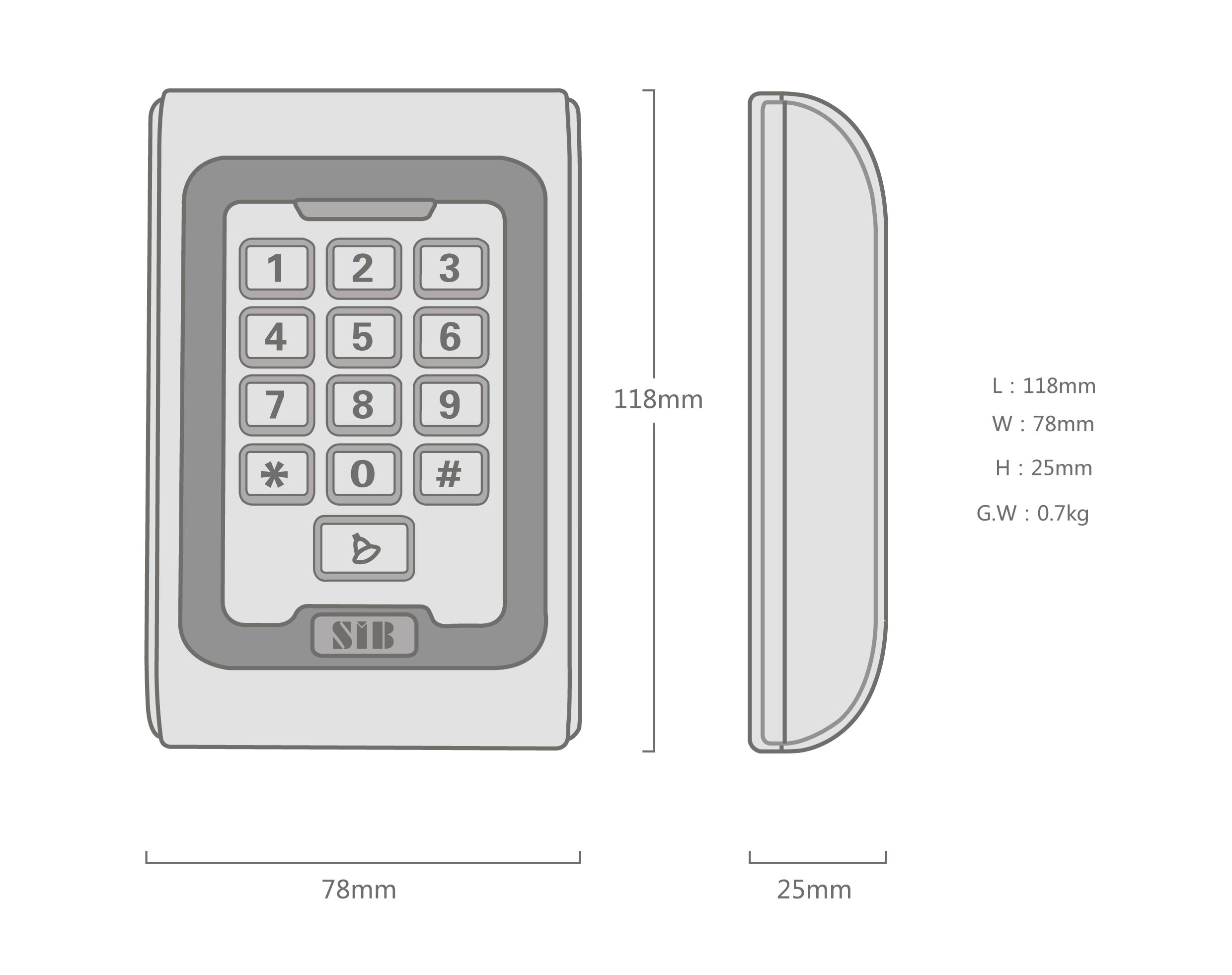

Dimension:118 *78*25mm






Size & Weight






Package size









Packing list






Common power supply diagram






Special power supply diagram
