Product presentation


Waterproof rate: IP68

Metal case, anti-vandal

Multi-function standalone access controller and reader,

can be used as WG26 reader

Capacity: 2000 cards/ codes

Three accesses: card, pin, card+pin

Digital backlit keypad

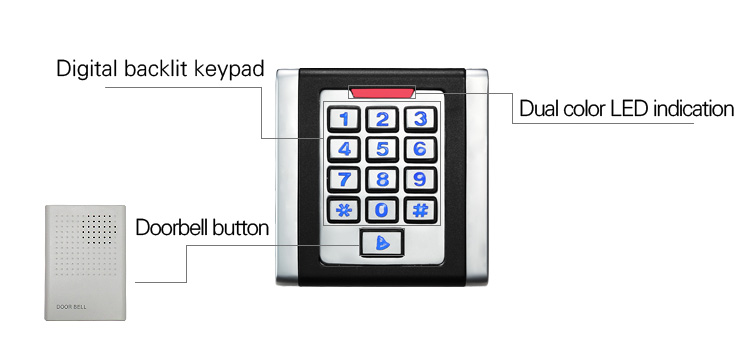

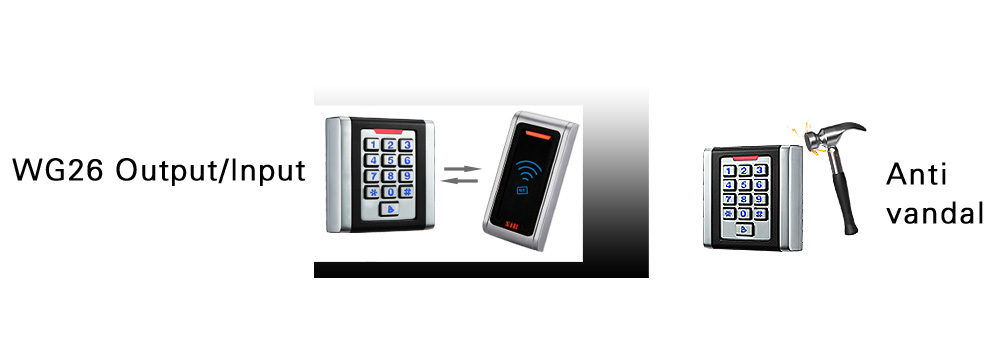

WG interface: WG26 Input/output

Doorbell support and interface: button and circuit segregate,

any doorbell can be connected


Product Version



Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K6EM
  EM Card 125Khz
Indoor
  EM CardReaders & RFID Access Controller
SIB
  K6MF
  MF Card 13.56Mhz
Indoor
  Mifare Readers& Metal Keypad Access Control
SIB
  K6EM-W
  EM Card 125Khz
IP68
  Waterproof EM Door Entrance & PIN Reader
SIB
  K6MF-W
  MF Card 13.56Mhz
IP68
  Waterproof Mifare Metal Access Control & Keypad Reader





Technical parameters


Card type:EM/MF

Waterproof degree:IP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

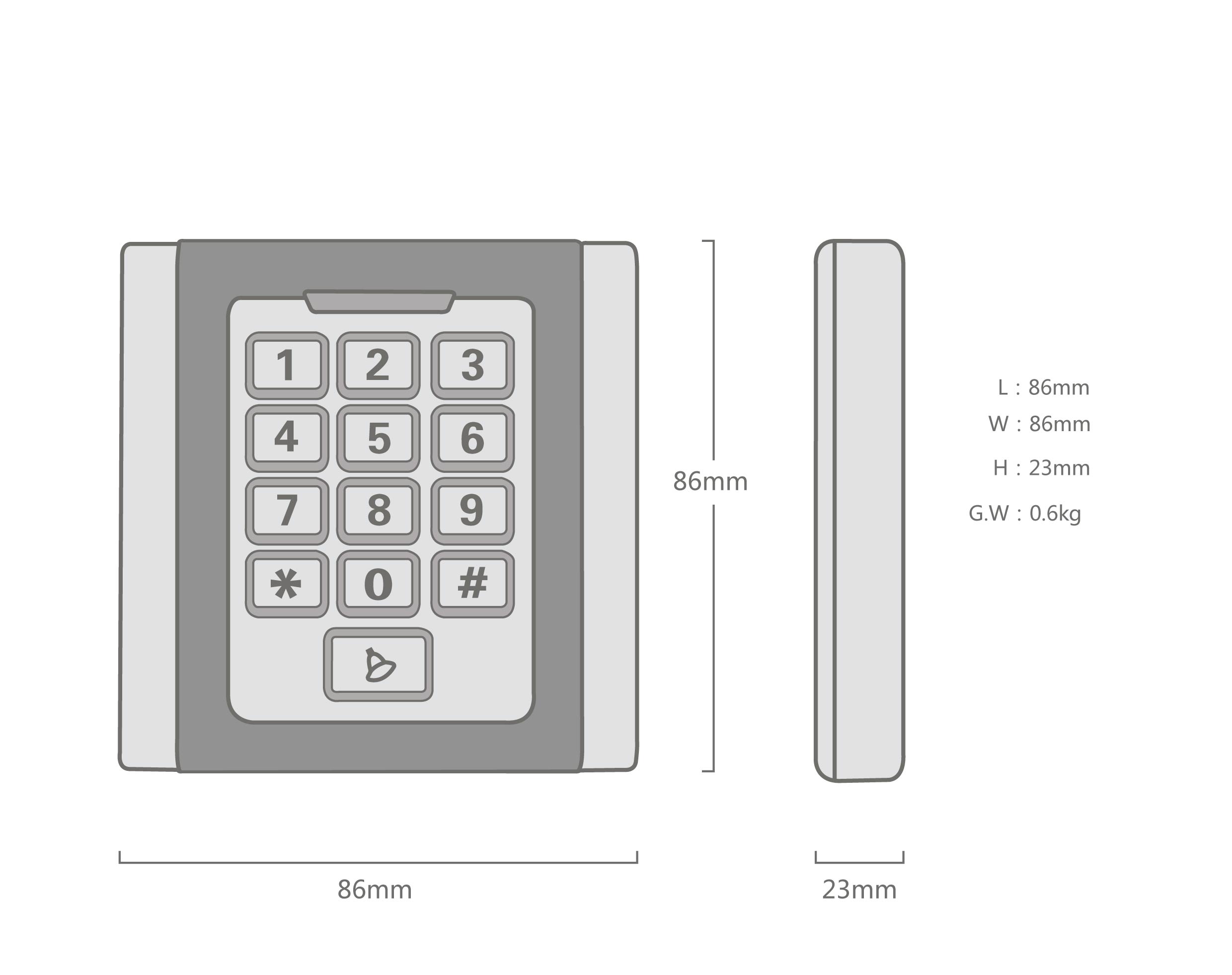

Dimension:86 *86*23mm






Size & Weight





Package size








Packing list





Common power supply diagram






Special power supply diagram





Click to download
