Product presentation
Material：Zinc alloy case
Low Power Consumption: Idle current≦30mA
Backlight keypad: can operate keypad in dark night

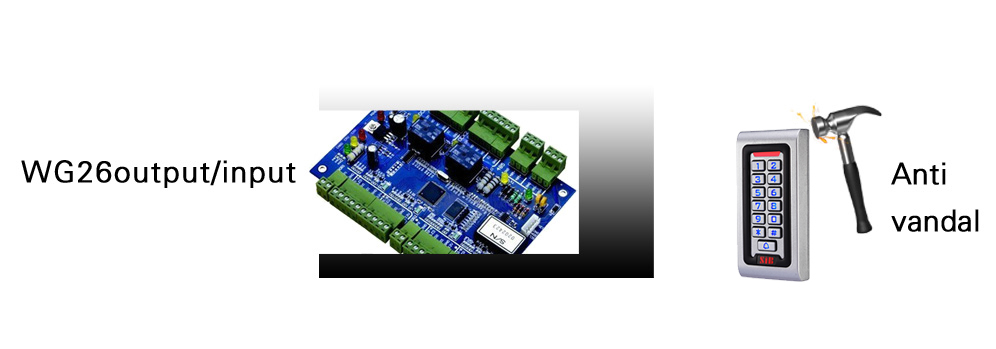

Wiegand output: with Wiegand output interface, WG26 card number or WG34 buttons output
Have doorbell key and interface: can connect with any doorbell
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
RF601EM-W
EM Card 125Khz
IP68
Metal Waterproof EM Card Reader
SIB
RF601MF-W
MF Card 13.56Mhz
IP68
Metal Waterproof Mifare Code Reader
Technical parameters
Card type：EM/MF Waterproof degree：IP68
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：120 *56*20mm
Size & Weight
Package size

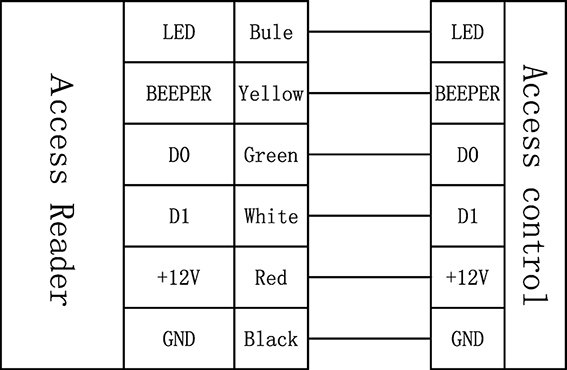

Wiring Instruction
Diagram
