Technical parameters

Card type：EM/MF

Waterproof degree：IP68

Environment Humidity：10%～90%

Lock output：≤3A

Working voltage：DC12V

Static electricity：≤30mA

Alarm output：≤20A

Output short circuit protection time：≤100μS

Card read distance：2～5cm

Ambient temperature：-40℃～60℃

Door Opening Time: 0～99s

Dimension：120 *56*20mm

---

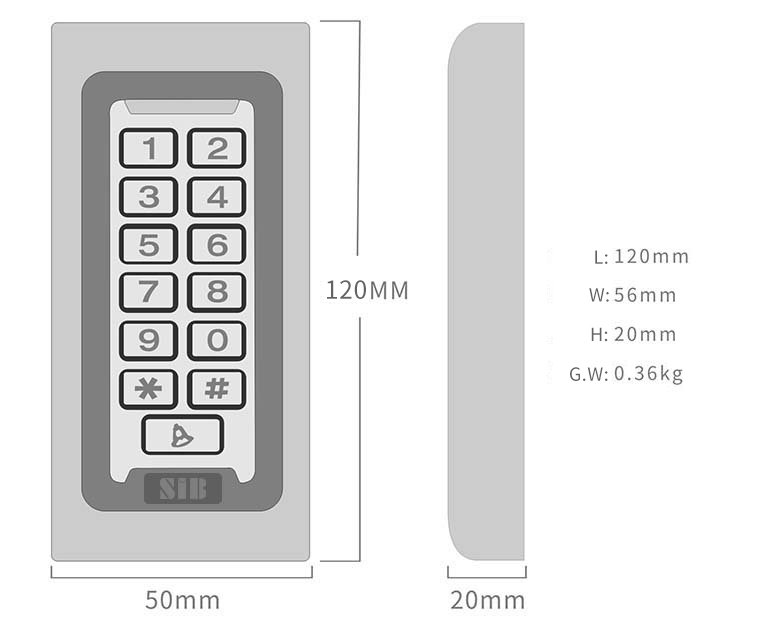

Size & Weight

---

Package size

---

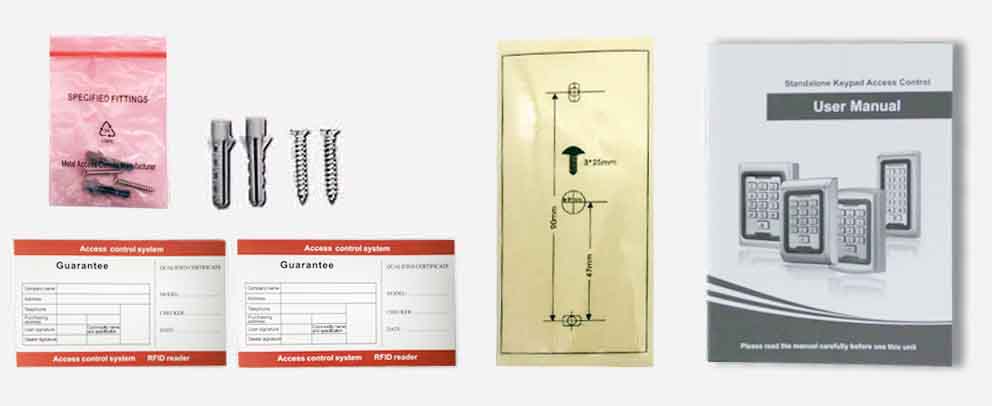

Packing list：

Common power supply diagram

---

Special power supply diagram
