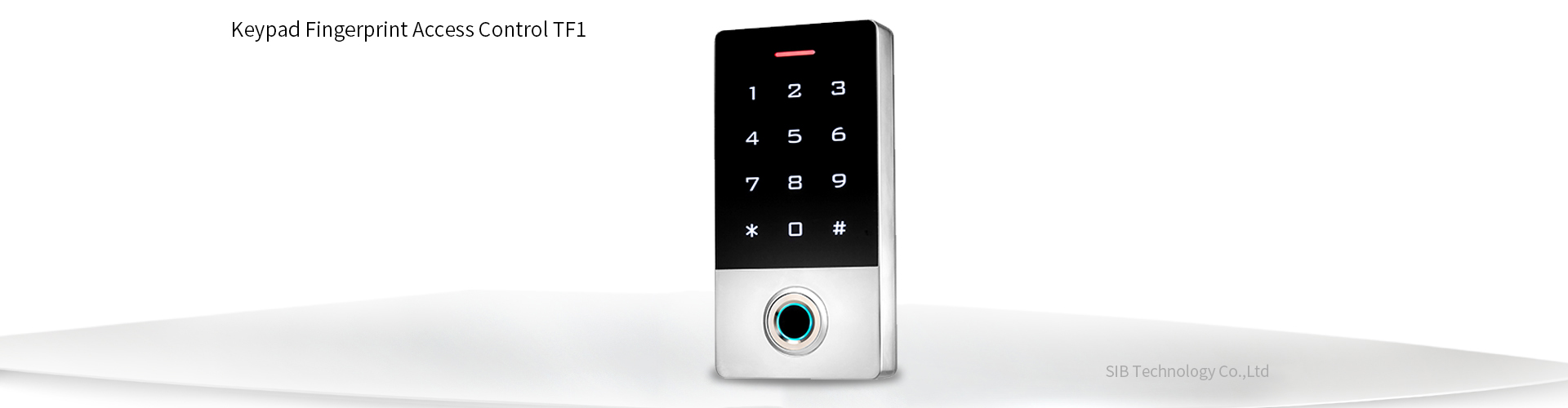

Product presentation


Metal case, anti-vandal

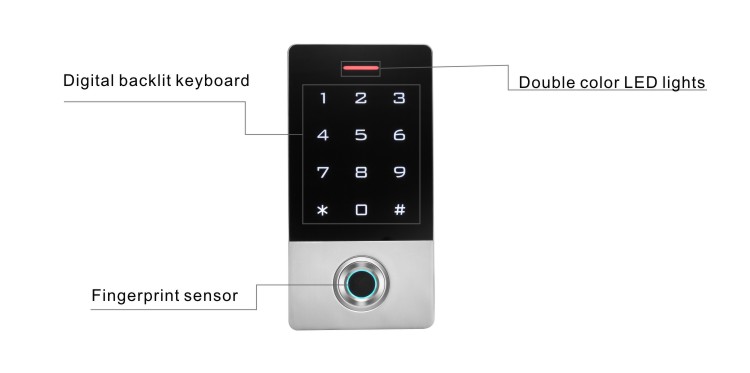

Digital backlit touch keypad

Multi-function standalone access

controller and reader,WG26 output/Input

Capacity: 10,000 cards/ codes&300fingerprints

Three way to open the door:card, code,fingerprint,mobile APP




Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  TF1EM
  EM Card 125Khz
Indoor
  EM Card Touch Keypad Fingerprint Access Control
SIB
  TF1MF
  MF Card 13.56Mhz
Indoor
  Mifare Tag Touch Panel Biometric Access Control
SIB
  TF1EF
  EM+MF Card 125Khz+13.56Mhz
Indoor
  EM+MF Duel Frequency Touch Screen Fingerprint Access Control
SIB
  TF1EM-W
  EM Card 125Khz
IP68
  Waterproof EM Touch Keypad Biometric Access Control
SIB
  TF1MF-W
  MF Card 13.56Mhz
IP68
  Waterproof MF Touch Screen Biometric Access Control
SIB
  TF1EF-W
  EM+MF Card 125Khz+13.56Mhz
IP68
  Duel Frequency Waterproof Biometric Readers & Access Controller






Technical parameters


Card type:EM/MF/HID/CPU

Capacity: 10000cards/codes&300fingerprints

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 0~99s

Dimension:139 *70*22mm






Size & Weight

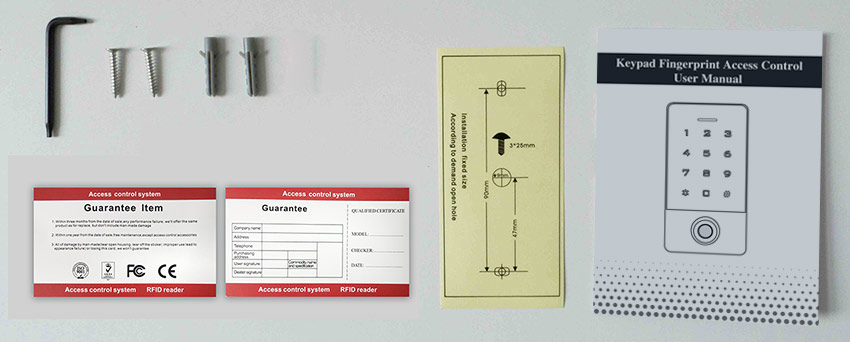

Packing list

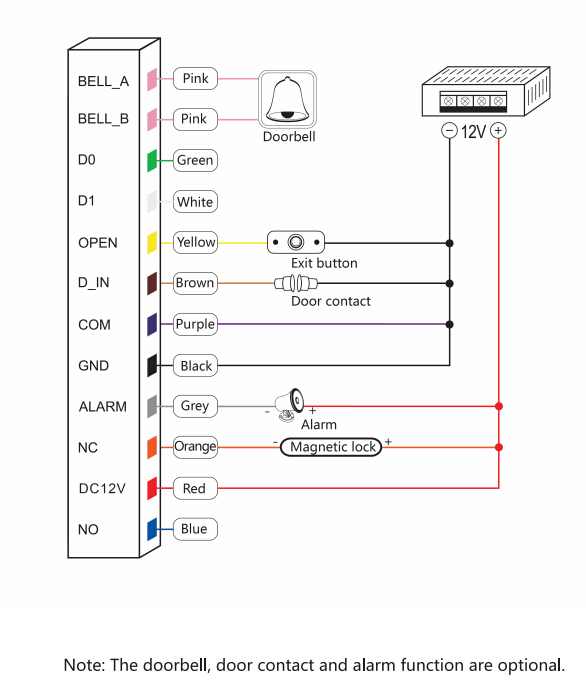

Common power supply diagram

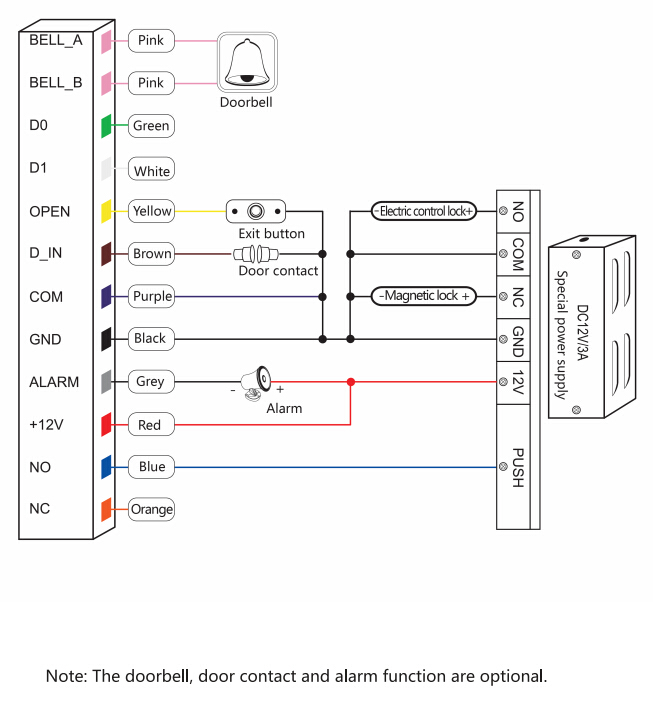

Special power supply diagram

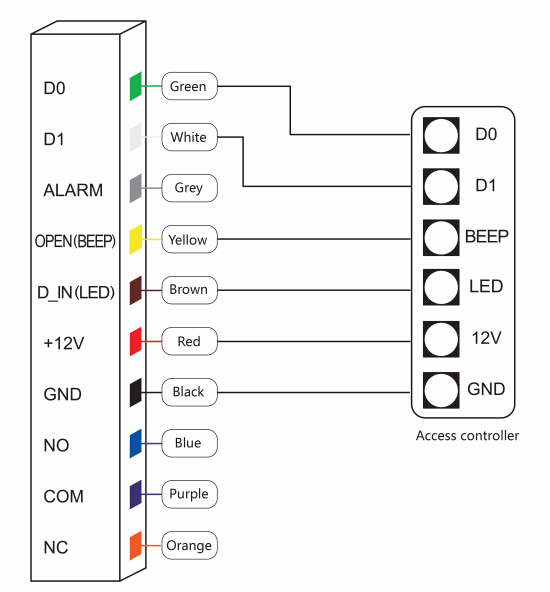

Reader mode:








Click to download
