Product presentation

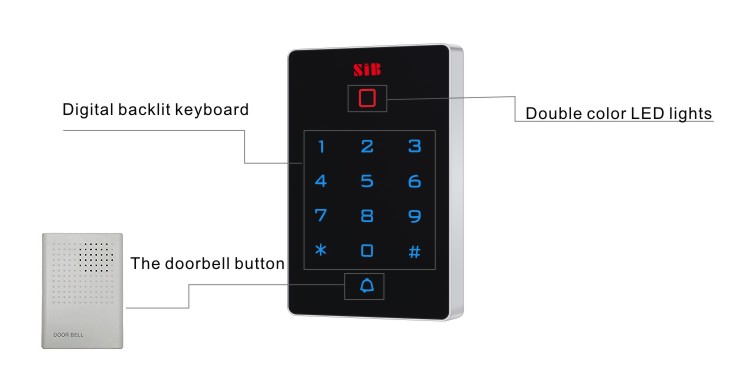

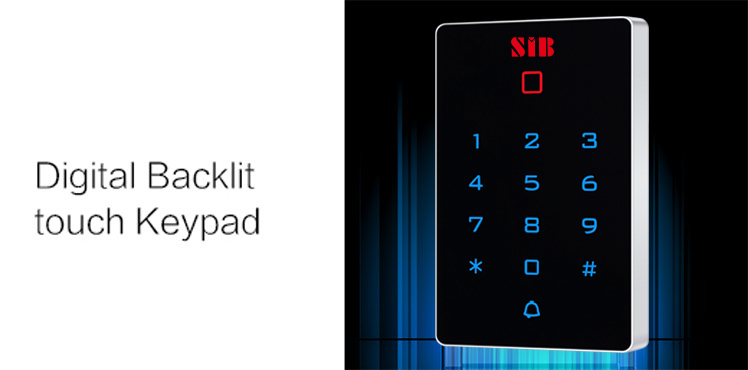

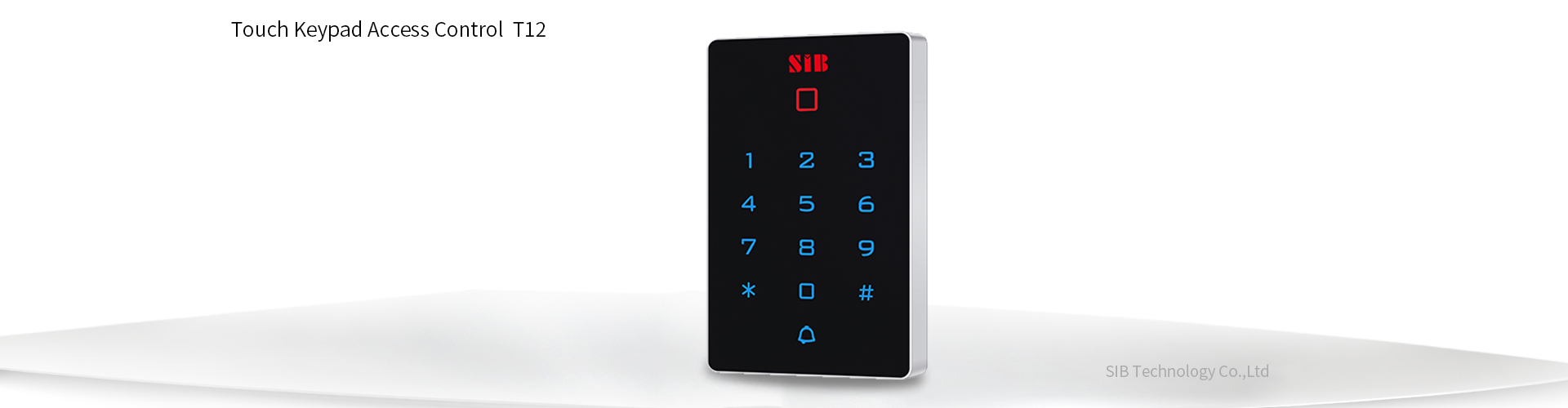

Digital backlit touch keypad
Multi-function standalone access
controller and reader,
WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  T12EM
  EM Card 125Khz
IP68   ABS Touch Panel Single Door Access Controller
SIB
  T12MF
  MF Card 13.56Mhz
IP68
  ABS Touch Keypad One Door Access Controller







Technical parameters


Card type:EM/MF

Capacity: 2,000

Environment Humidity:10%~90%

Lock output:≤1A
Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS
Card read distance:2~5cm

Ambient temperature:-40℃~60℃ Door

Opening Time: 099s

Dimension:114 *75*16mm

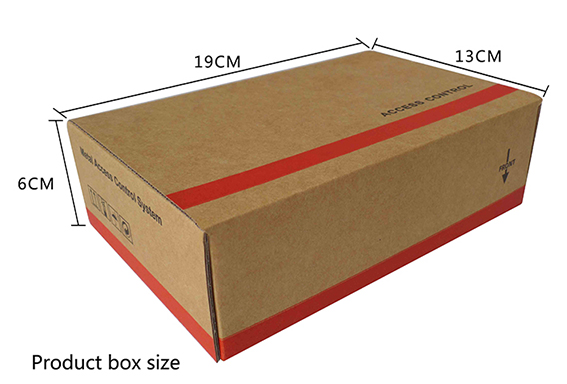

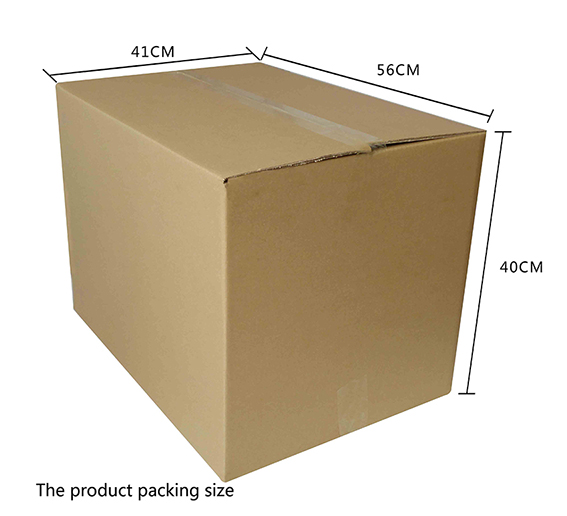

Package size

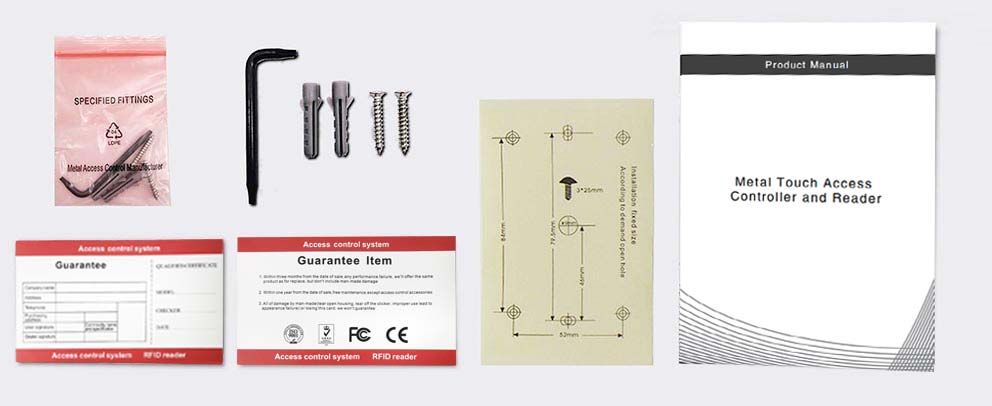

Packing list
















Click to download
