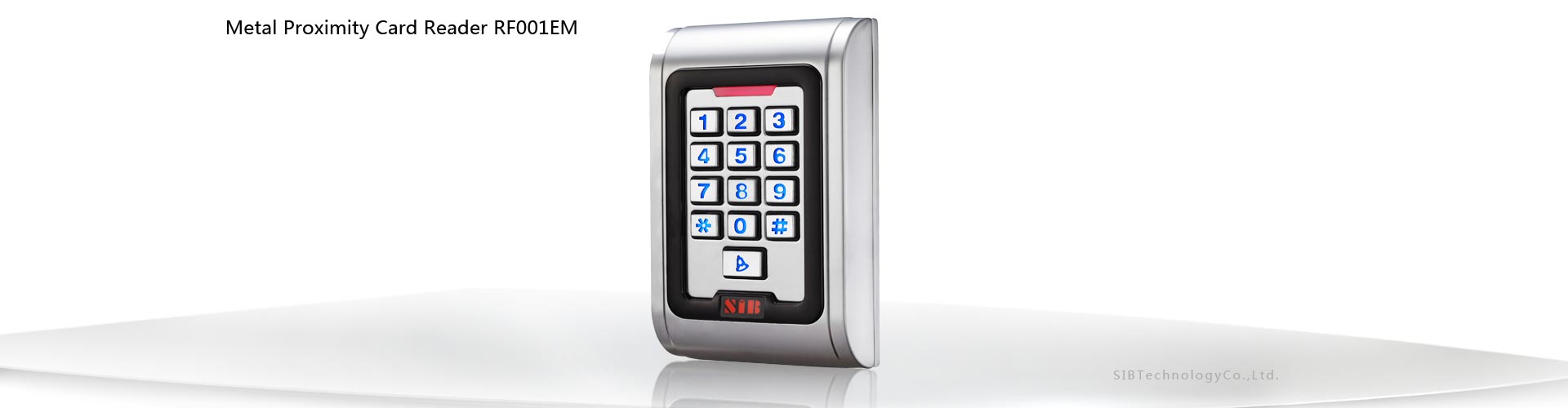

Product presentation
Metal structure design, anti-vandal
Waterproof Degree: IP68
Digital backlit keyboard, can operate keypad in dark night
All-in-one, WG26 output/input
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password
The doorbell button and interface: buttons and isolation circuit,
Connect to any external bell
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
RF001EM
EM Card 125Khz
IP68
Metal Waterproof Wg26/34 PIN Readers
SIB
RF001MF
MF Card 13.56Mhz
IP68
Metal Outdoor Wg26/34 Password Readers
Technical parameters
Card type:EM/MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Ambient temperature：-45℃～60℃
Working voltage：DC12V
Static electricity：≤30mA
Card read distance：3～6cm

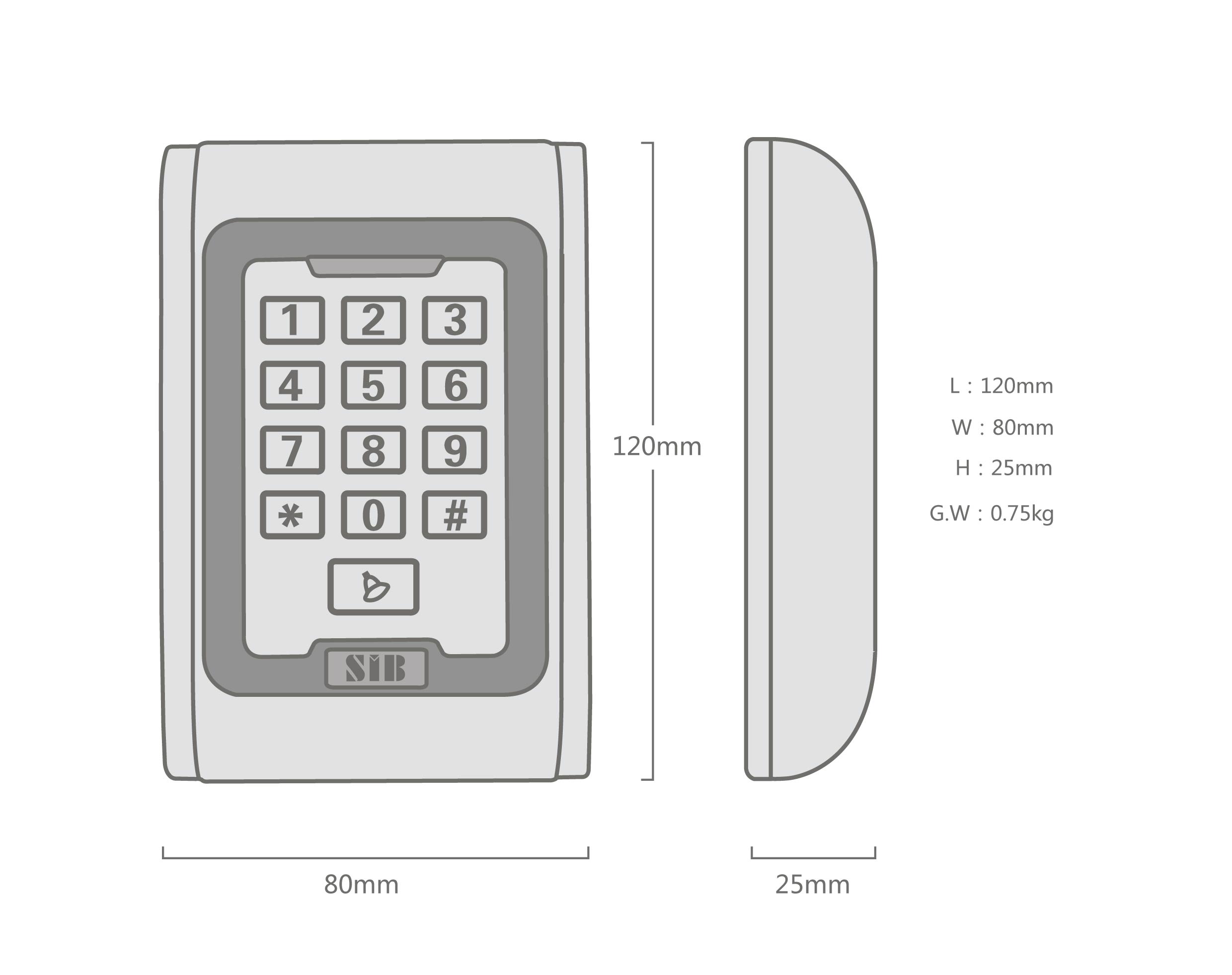

Dimension：120 *80*25mm
Size & Weight
Package size
Packing list
Wiring Instruction
|
Wire No. |
Function |
Color |
Description |
| 1 |
BELL_A |
Purple |
Doorbell button one end |
| 2 |
BELL_B |
Gray |
Doorbell button to the other end |
| 3 |
LED |
Blue |
Connect controller LED |
| 4 |
Beeper |
Yellow |
Connect controller beeper |
| 5 |
D0 |
Green |
WG output line D0 |
| 6 |
D1 |
White |
WG output line D1 |
| 7 |
+12V |
Red |
Power supply +12V |
| 8 |
GND |
Black |
Power supply -12V |
