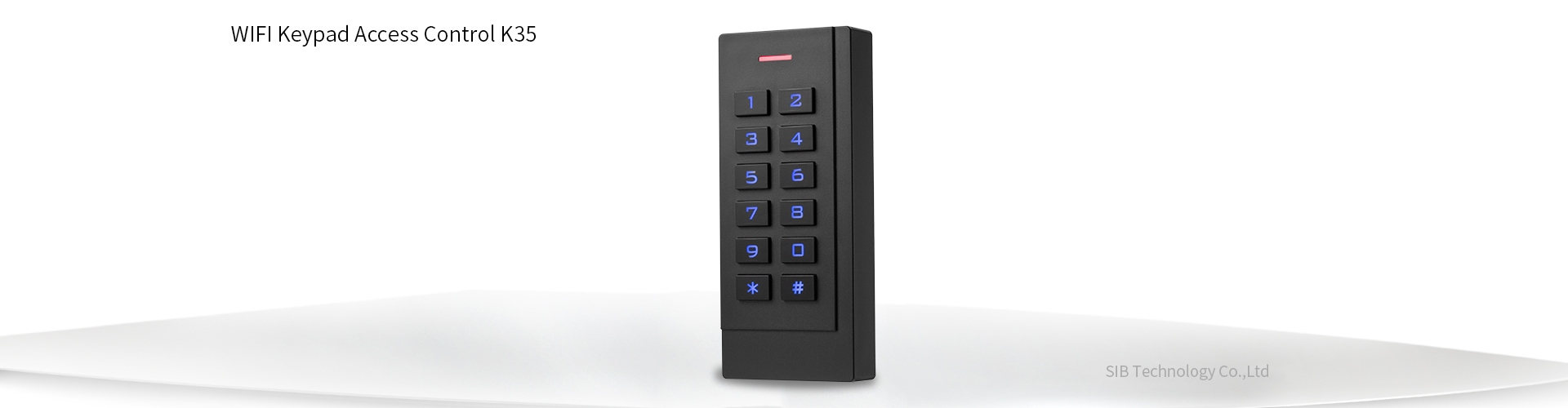

Product presentation

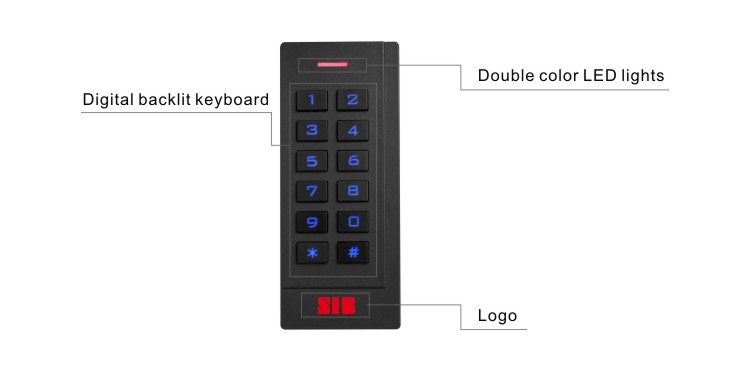

Digital backlit keypad

Multi-function standalone access controller and reader,

WG26 output/Input

Capacity: 10000 cards/ codes

Access ways:card,code,card+code,mobile APP



Product Version

Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K35EM
  EM Card 125Khz
Indoor
  Keypad Gate Entry by Tuya App Access
SIB
  K35MF
  MF Card 13.56Mhz
Indoor
  Wifi Door Access Control Systems
SIB
  K35EM-W
  EM Card 125Khz
IP68
  Waterproof Standalone Access Control with Tuya
SIB
  K35MF-W
  MF Card 13.56Mhz
IP68
  Waterproof Single Door Access Control with Tuya App


Technical parameters


Card type:EM/MF/HID/CPU

Plastic case

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:119*49*19mm

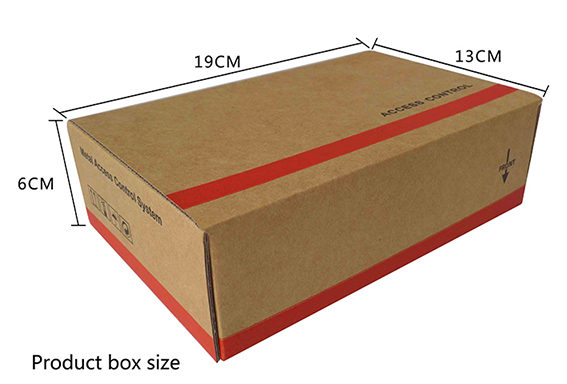

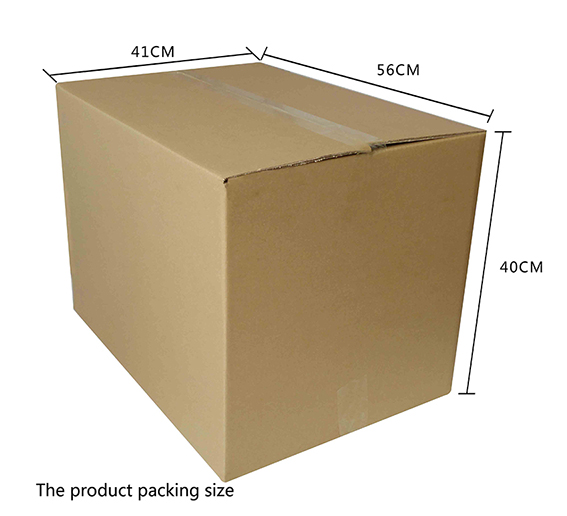

Package size






Packing List

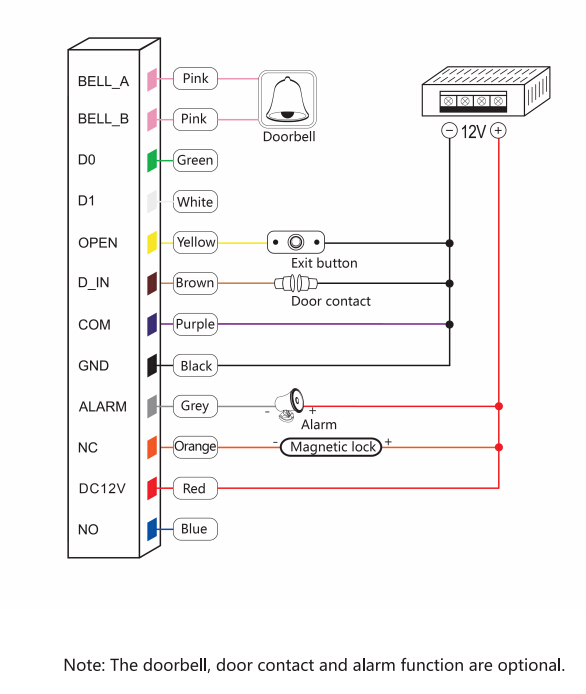

Common power supply diagram

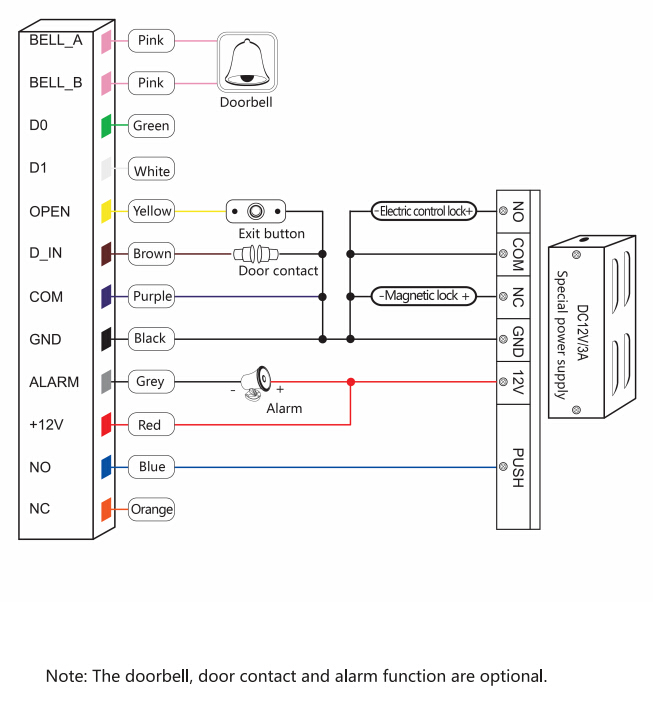

Special power supply diagram

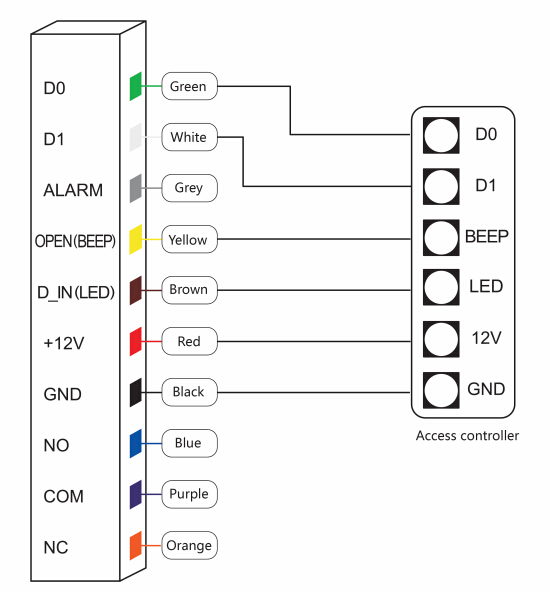

Reader mode:
