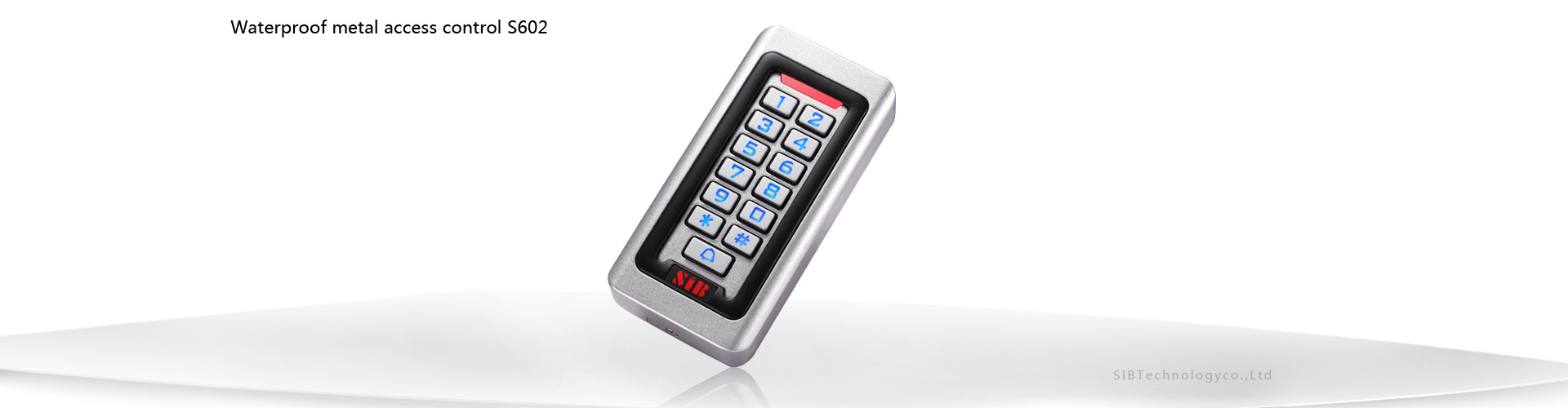

Product presentation


Waterproof IP68

Metal case, anti-vandal

Standalone access control with WG26 card reader function 2000 users, card or code

Three access way: card, pin, card+pin

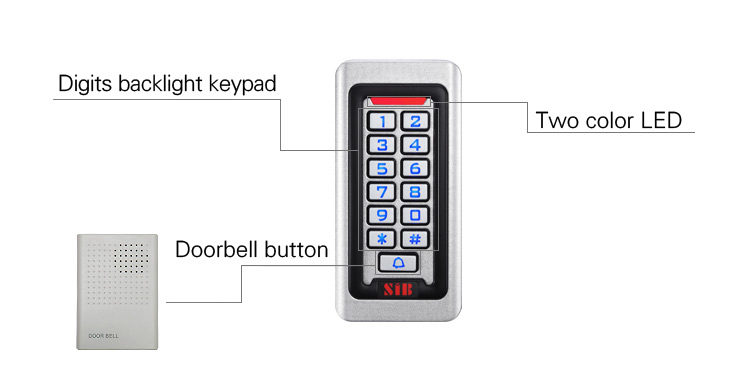

Backlight keypad

WG26 input/output

With doorbell button, can connect any doorbell


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  S602EM
  EM Card 125Khz
Indoor
  EM Silicon Keys Standalone Access Control
SIB
  S602MF
  MF Card 13.56Mhz
Indoor
  Mifare Silicon Buttons Single Door Access Control
SIB
  S602EM-W
  EM Card 125Khz
IP68
  Waterproof Silicon Keys One Door Access Controller
SIB
  S602MF-W
  MF Card 13.56Mhz
IP68
  Waterproof Silicon Buttons Mullion Access Controller









Technical parameters


Card type:EM/MF

Waterproof degree:IP68

Environment Humidity:10%~90%

Lock output:≤3A
Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

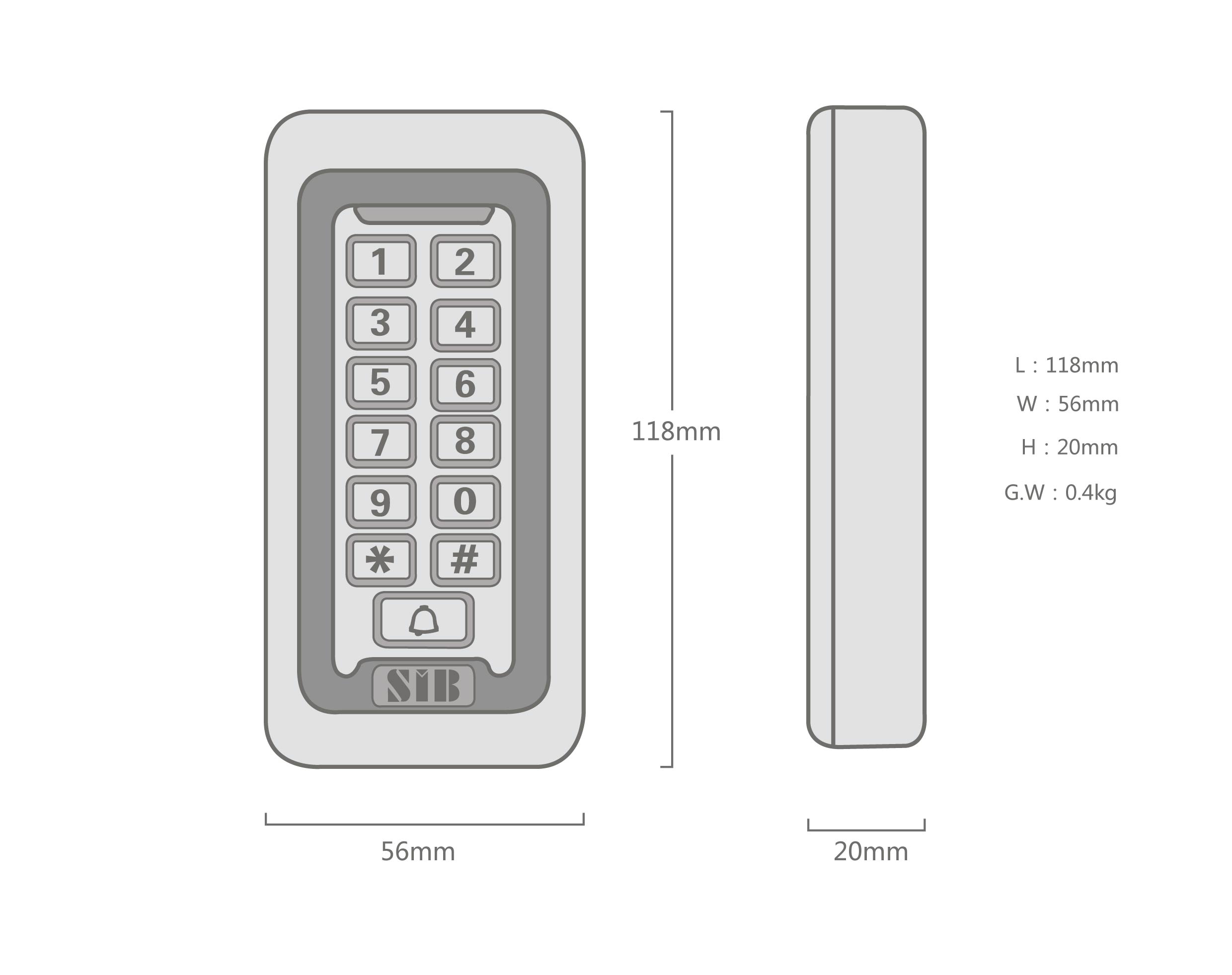

Dimension:118 *56*20mm






Size & Weight






Package size








Packing list





Common power supply diagram






Special power supply diagram





Click to download
