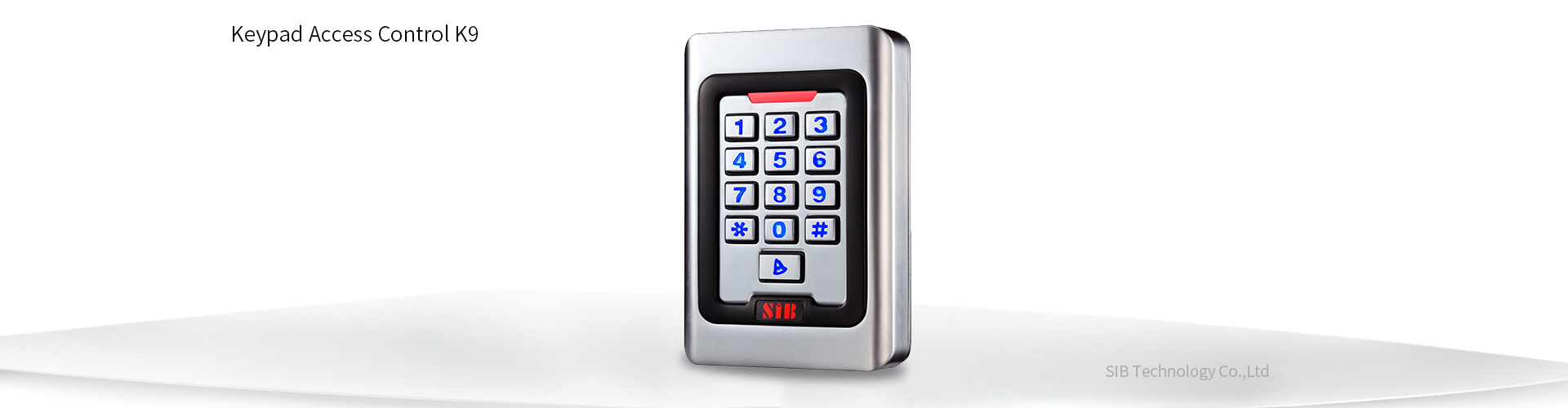

Product presentation


Waterproof Degree: IP68
Metal structure design, anti-vandal

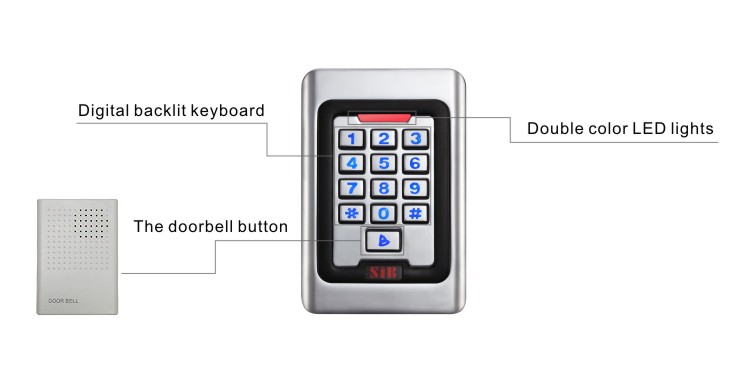

Digital backlit keyboard

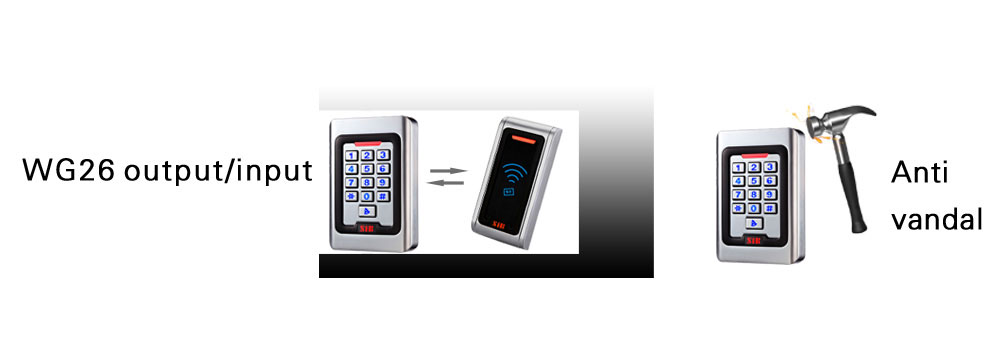

All-in-one, WG26 output/input
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password
The doorbell button and interface: buttons and isolation
circuit, connect to any external bell



Product Version




Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K9EM
  EM Card 125Khz
Indoor
  EM4100 RFID Tag Metal Keypad Door Entry
SIB
  K9MF
  MF Card 13.56Mhz
Indoor
  Mifare Card Metal Keypad Gate Entry
SIB
  K9EM-W
  EM Card 125Khz
IP68
  Badges RFID Keypad Access Control
SIB
  K9MF-W
  MF Card 13.56Mhz
IP68
  RFID Wristband Code Access Control








Technical parameters


Card type:EM/MF

Waterproof degree:IP68

Environment Humidity:10%~90%

Lock output load:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2-5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:120 *80*25mm

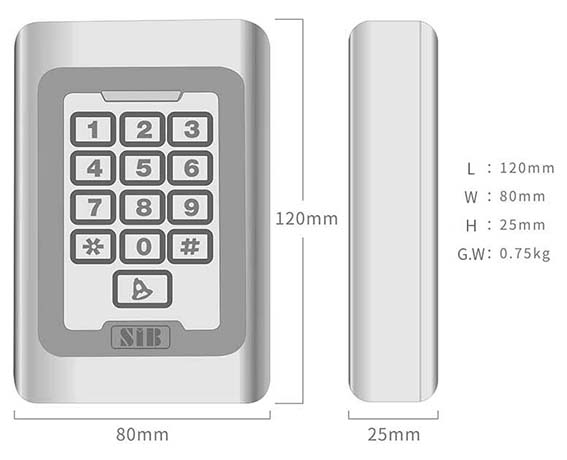

Size & Weight









Package size

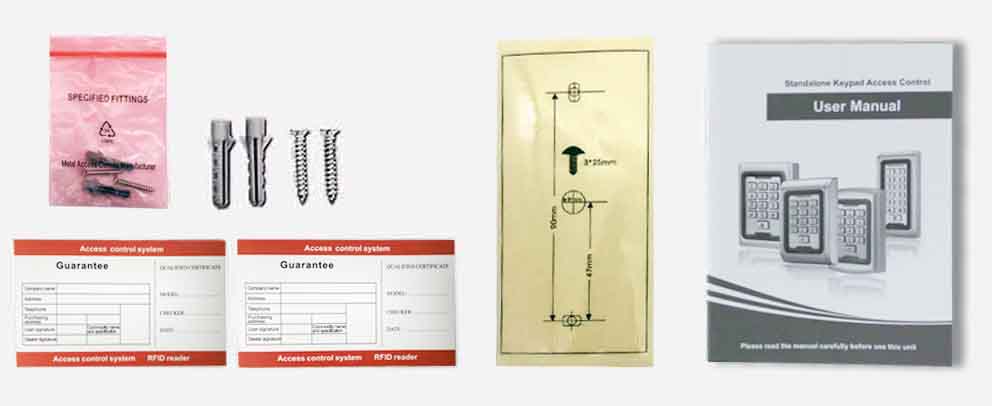

Packing list





Common power supply diagram






Special power supply diagram
