Product presentation

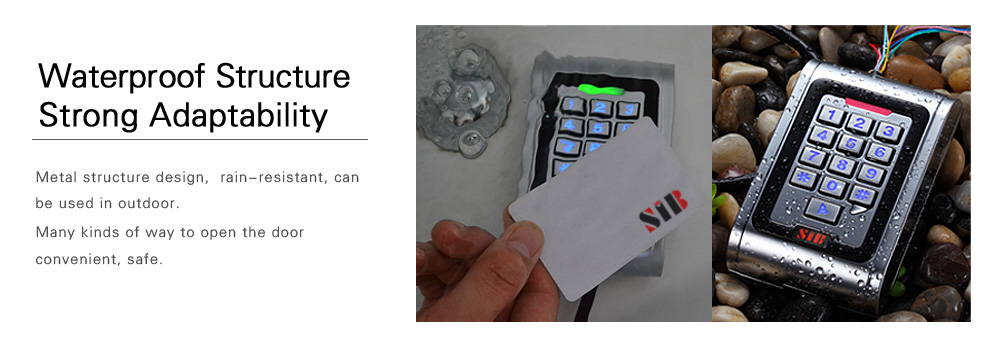

Waterproof Degree: IP68

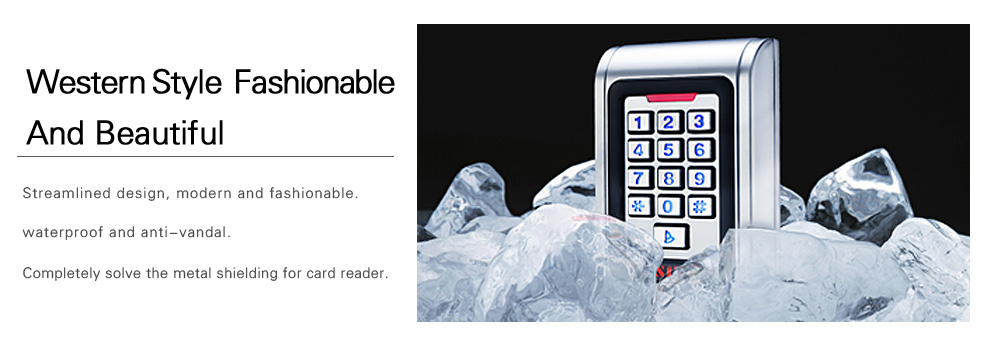

Metal structure design, anti-vandal

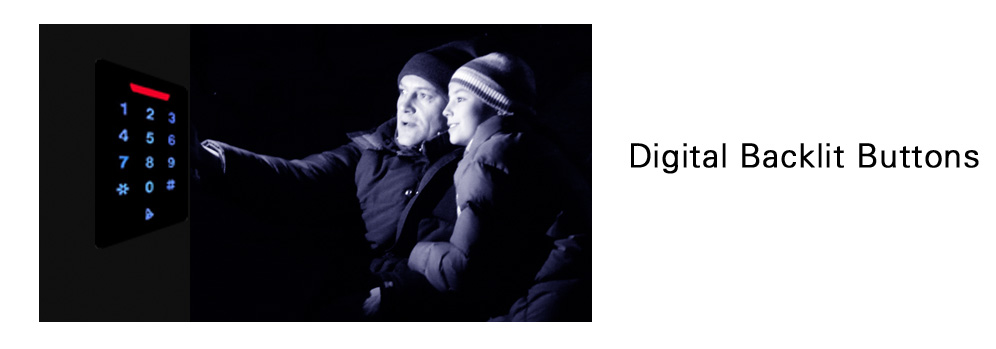

Digital backlit keyboard

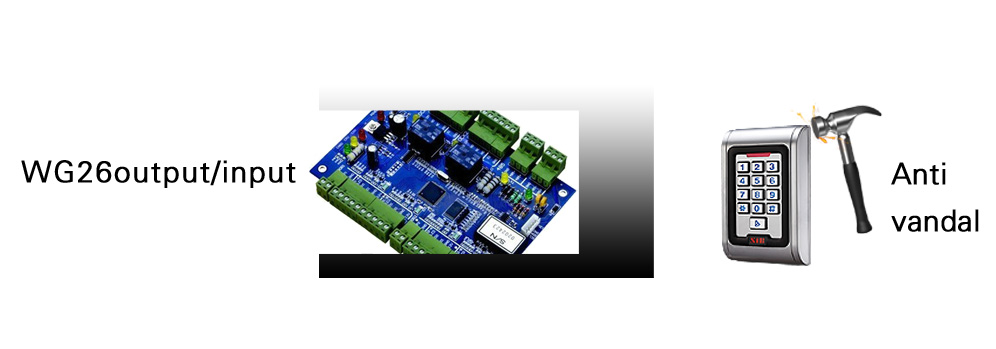

All-in-one, WG26 output/input
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password

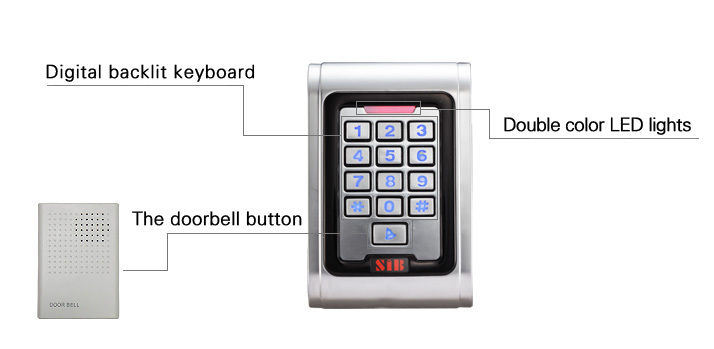

The doorbell button and interface: buttons and isolation circuit,

Connect to any external bell





Product Version




Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  S100EM
  EM Card 125Khz
IP68

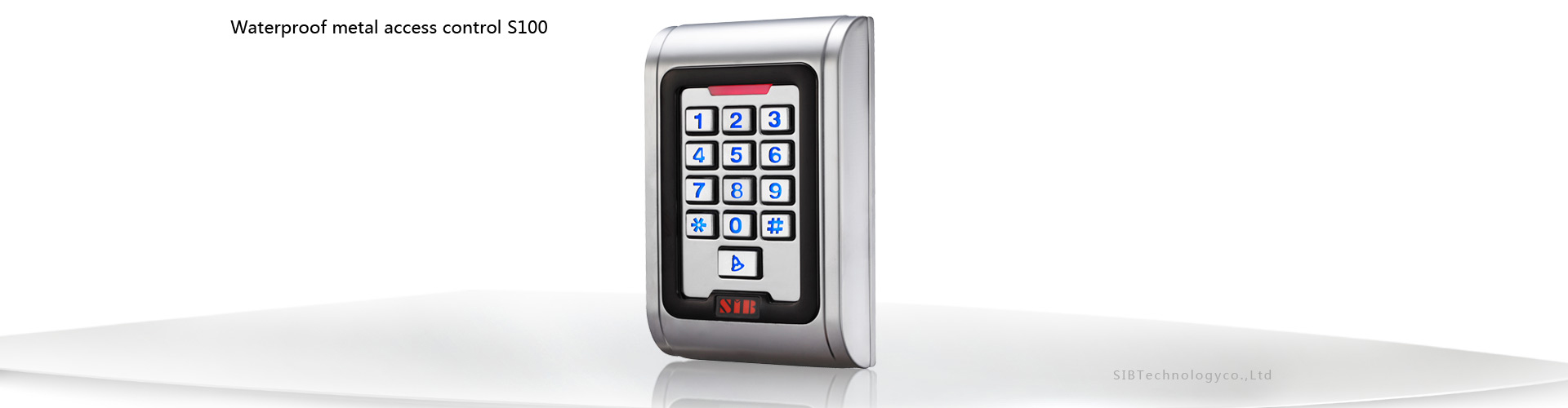

  EM Metal Waterproof Keypad Access control
SIB

  S100MF

  MF Card 13.56Mhz
IP68
  Mifare Metal Waterproof KeypadAccess control







Technical parameters


Card type:EM/MF

Working voltage:DC12V

Waterproof degree:IP68

Environment Humidity:10%~90%

Ambient temperature:-40℃~60℃

Lock output:≤3A

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Door Opening Time: 0~99s

Dimension:120 *80*25mm






Size & Weight





Package size








Packing list






Common power supply diagram






Special power supply diagram
