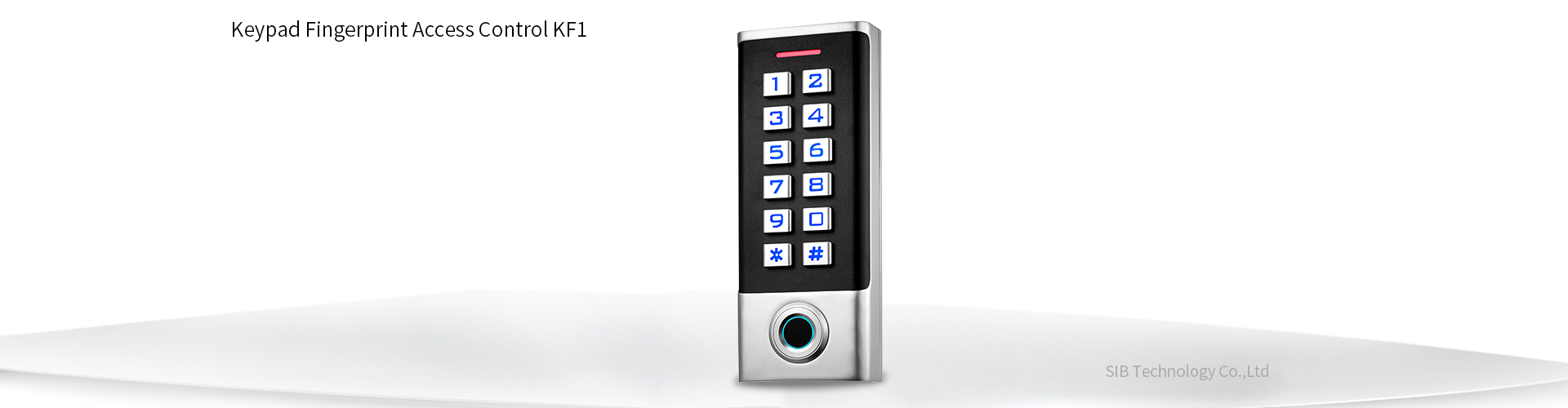

Product presentation
Metal case, anti-vandal

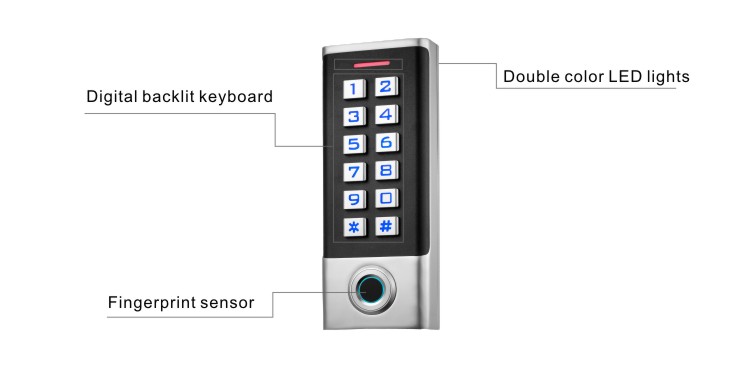

Digital backlit touch keypad
Multi-function standalone access
controller and reader,WG26 output/Input
Capacity: 10,000 cards/ codes&300fingerprints
Three way to open the door:card, code，fingerprint
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
KF1EM
EM Card 125Khz
Indoor
Metal Keypad RFID Access Fingerprint Access Control
SIB
KF1MF
MF Card 13.56Mhz
Indoor
Metal Keypad Mifare Card Biometric Access Control
SIB
KF1EM-W
EM Card 125Khz
IP68
Waterproof Metal Keypad Fingerprint Access Control
SIB
KF1MF-W
MF Card 13.56Mhz
IP68
Outdoor Antivandal Biometric Access Control
Technical parameters
Card type：EM/MF/HID/CPU
Capacity: 10000cards/codes&300fingerprints
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：152 *60*24mm

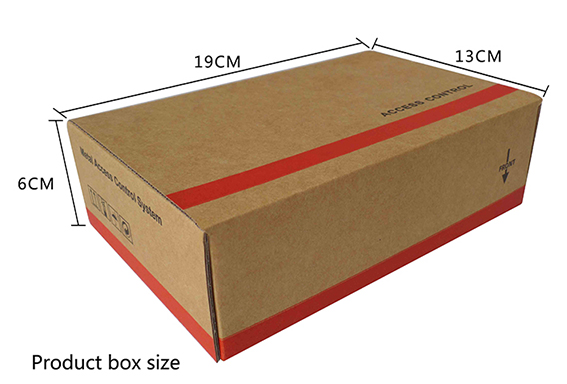

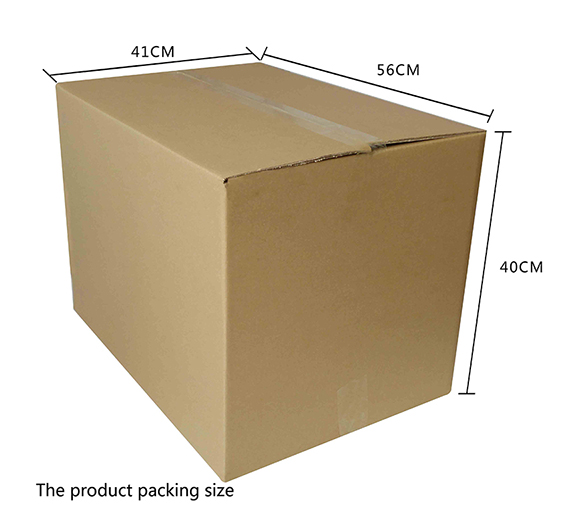

Package size

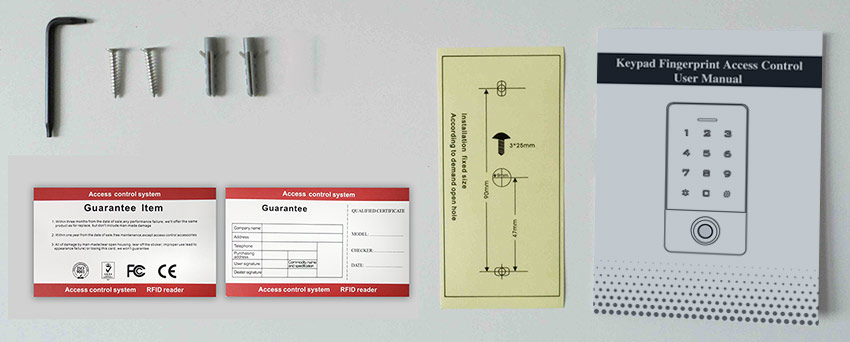

Packing list
