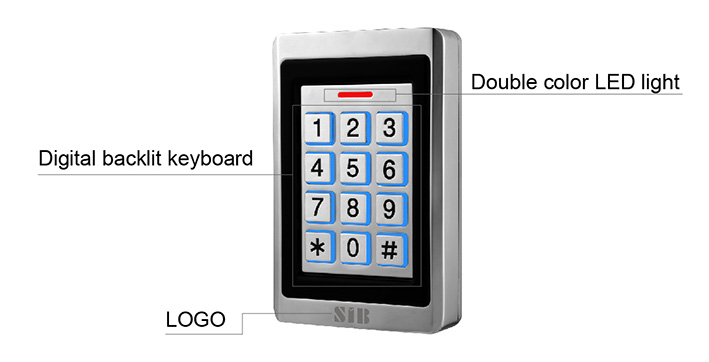

Product presentation


WG26/WG34 adjustable by end user under reader mode
Capacity: 2000 users,button keypad
Access Way: Pin, Card, Pin+ Card
Can set Relay Toggle Mode,Pure Reader Mode ,

Standalone Access Control Mode
Data backup


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K16EM
  EM Card 125Khz
Indoor
  Metal Digital Keypad RFID Access Control
SIB
  K16MF
  MF Card 13.56Mhz
Indoor
  Metal Keyboard Card Pin Access Control
SIB
  K16EM-W
  EM Card 125Khz IP68
  IP68 Anti-vandal Metal Access Control
SIB
  K16MF-W
  MF Card 13.56Mhz IP68
  Outdoor Card Pin rfid Door Entrance


Technical parameters


Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V
Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

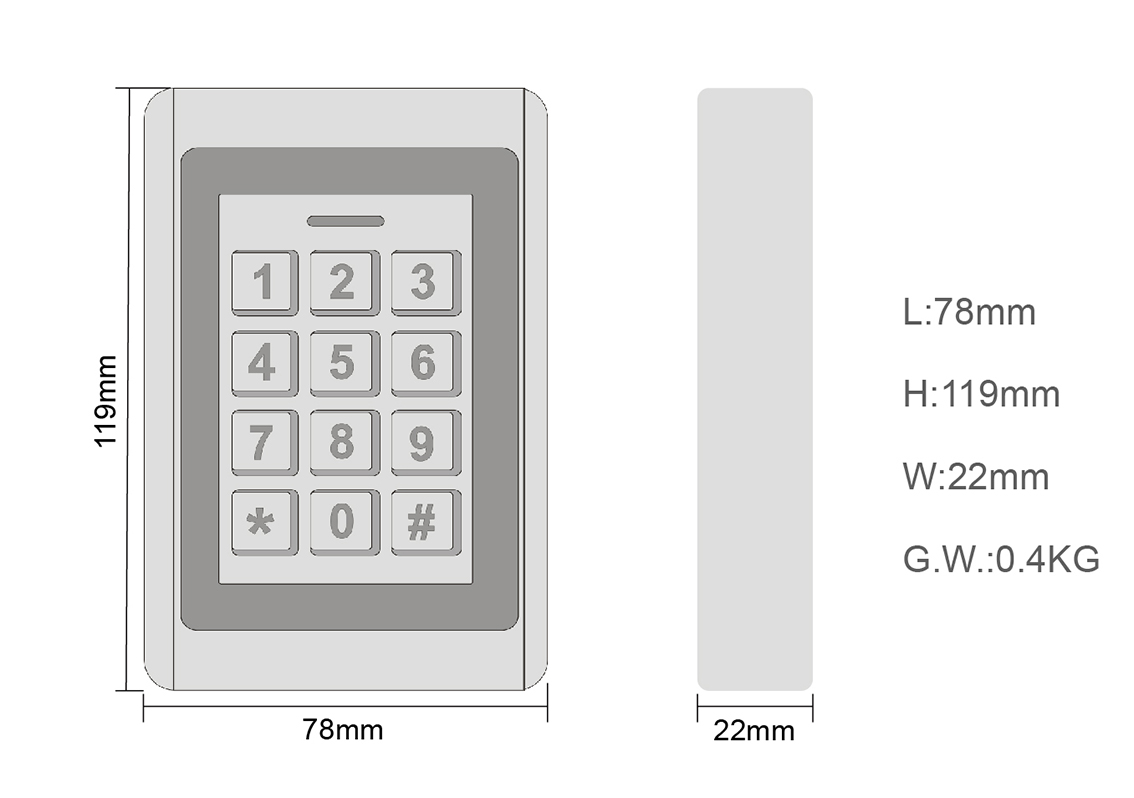

Size & Weight





Package size

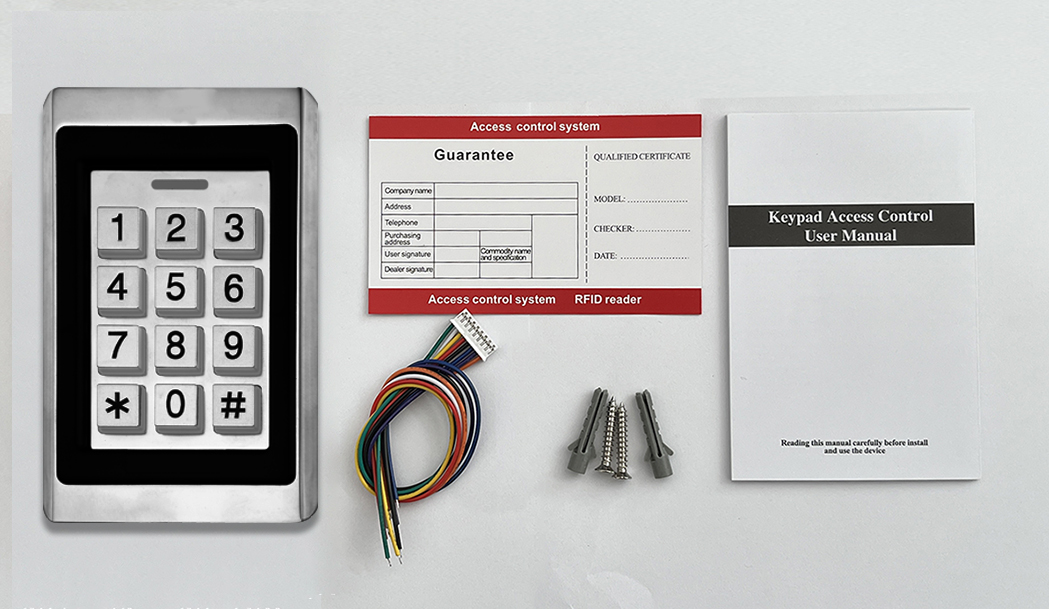

Packing list



Common power supply diagram





Special power supply diagram






Reader mode diagram
