Product presentation

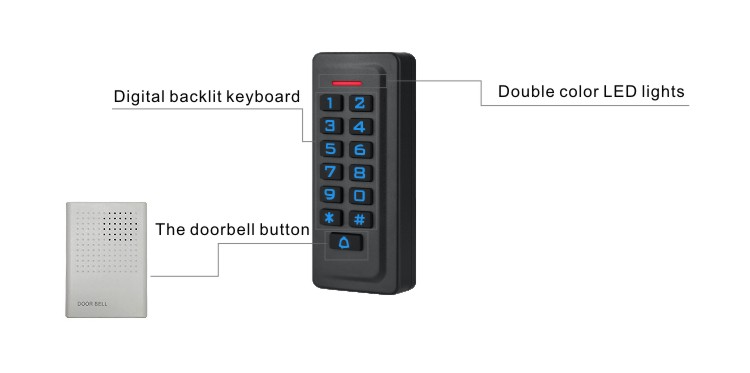

Digital backlit keypad Multi-function standalone access controller and reader, WG26 output/Input Capacity: 2000 cards/ codes Access ways:card,code,card+code
Product Version |
 |
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
K32EM |
EM Card 125Khz |
Indoor |
Proximity Card Reader & Keypad Door Entry |
|
SIB |
K32MF |
MF Card 13.56Mhz |
Indoor |
Gate Card Reader & Keypad Gate Entry |
|
SIB |
K32EM-W |
EM Card 125Khz |
IP68 |
Waterproof EM4100 RFID Door Entry Panels |
|
SIB |
K32MF-W |
MF Card 13.56Mhz |
IP68 |
Rainproof Mifare Card Door Entry Sytems |
Technical parameters
Card type：EM/MF/HID/CPU
Plastic case
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：109*45*22mm
Package size
Packing list
Common power supply diagram
Special power supply diagram
