Technical parameters

Input:DC12V-24V
Contact Rating:1A@36VDC
Output Contact:NO/NC/COM
Mechanical Life:500000 tests
Suitable for Door:Hollow Door
Operating temp:-20℃～+55℃(14-131F)
Suitable Humidity:0-95% (relative humidity)

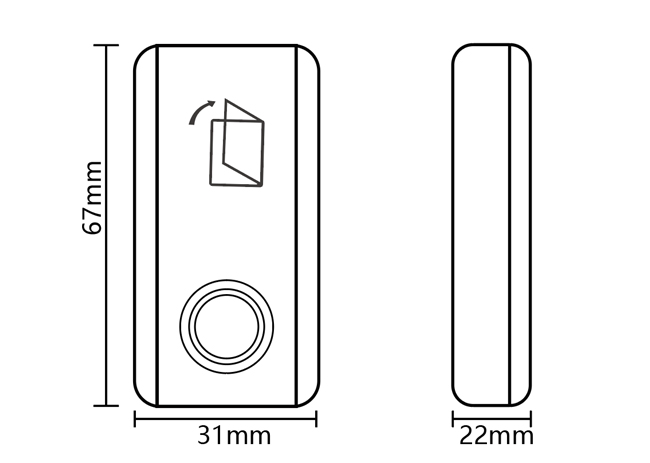

Product dimension
