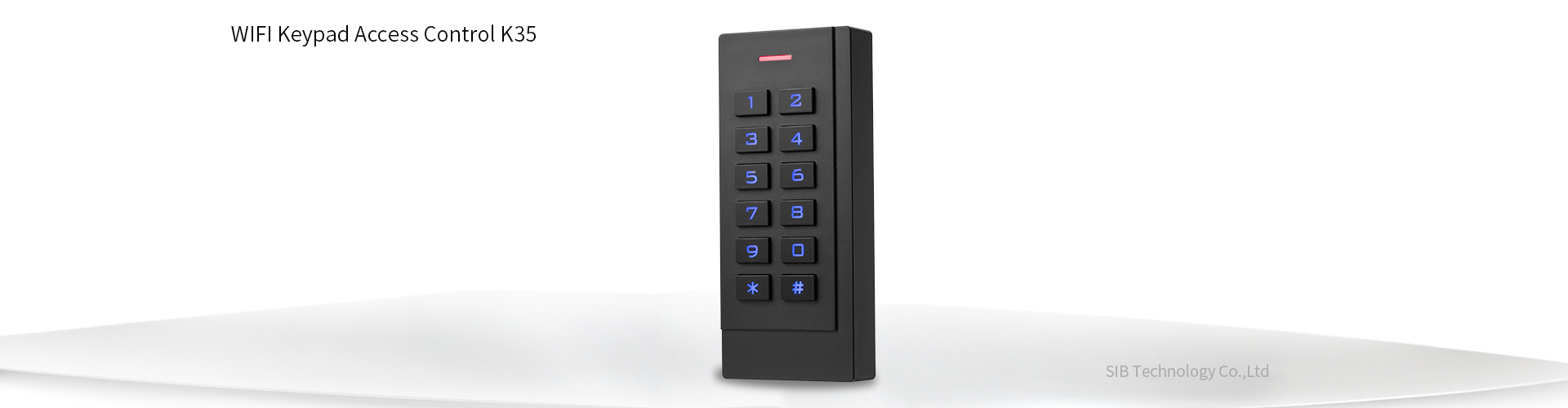

Product presentation

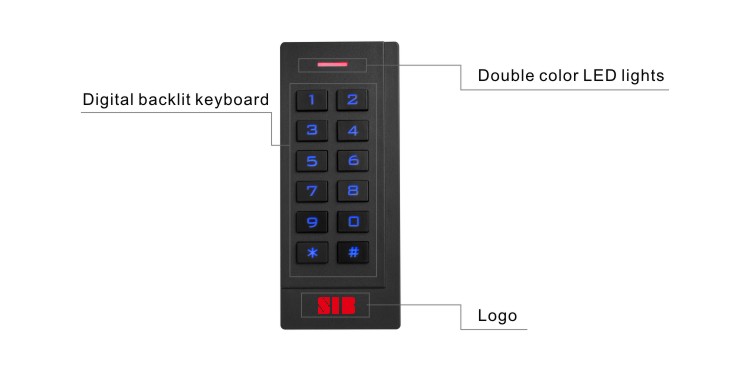

Digital backlit keypad

Multi-function standalone access controller and reader,

WG26 output/Input

Capacity: 10000 cards/ codes

Access ways:card,code,card+code,mobile APP


Product model








Technical parameters:


Card type:EM/MF/HID/CPU         Alarm Output Load:≤20A                        Working Voltage:DC12—24V                   Idle Current:≤30mA
Reading Range:2—5cm                Operating Temperature:-40℃~60℃        Operating Humidity:0%—95%                 Lock Output Load:≤1A
Door Opening Time:0~99s           Short-circuit Protect Time:≤100us            Capacity10,000users                         Dimension:119 *49*19mm





Package size:

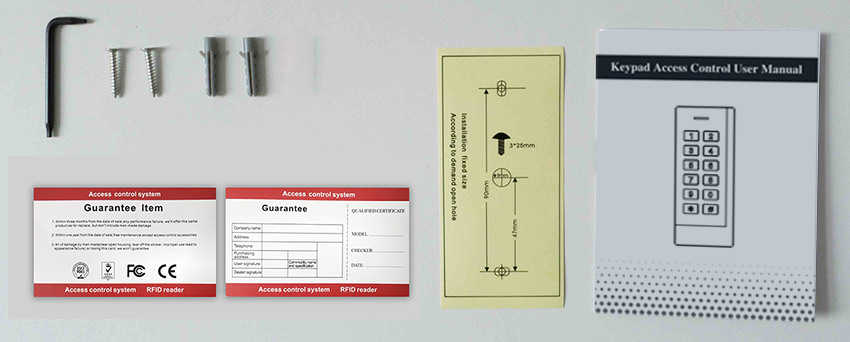

Packing list:

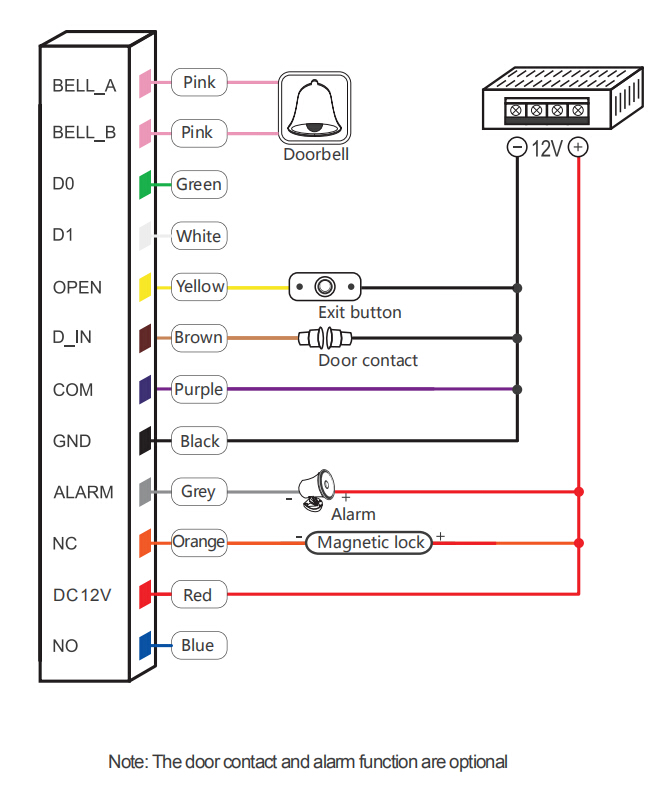

Common Power Supply

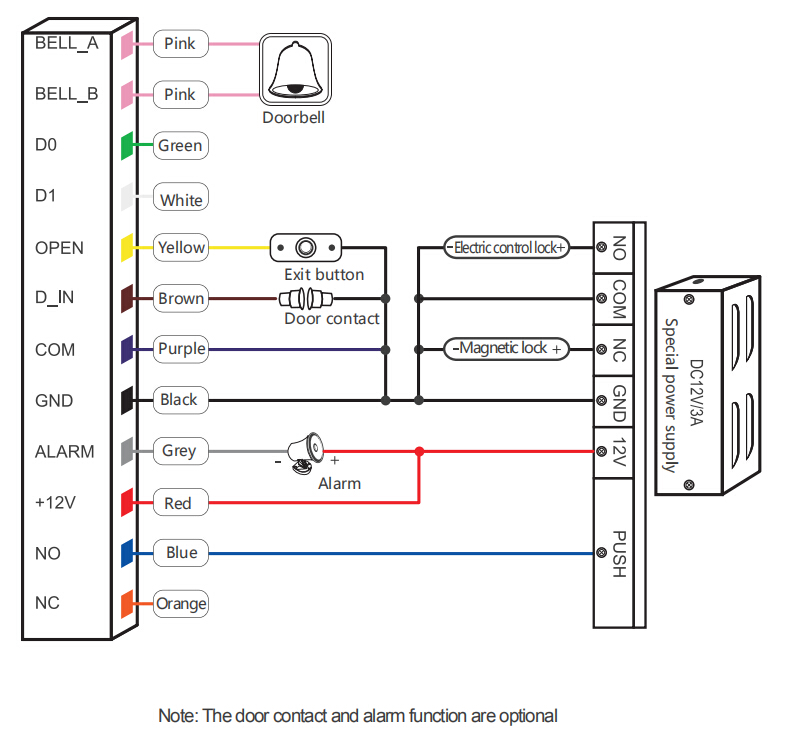

Special Power Supply

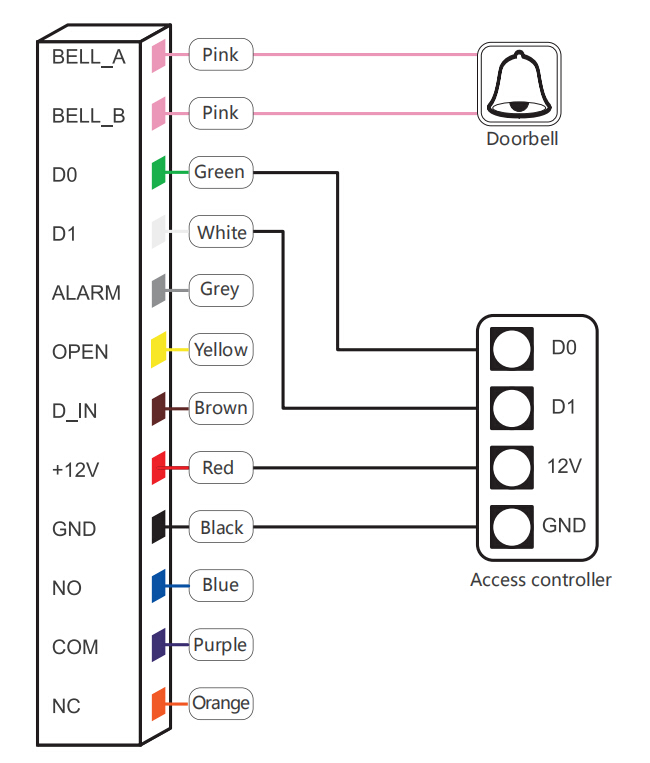

Reader Mode
