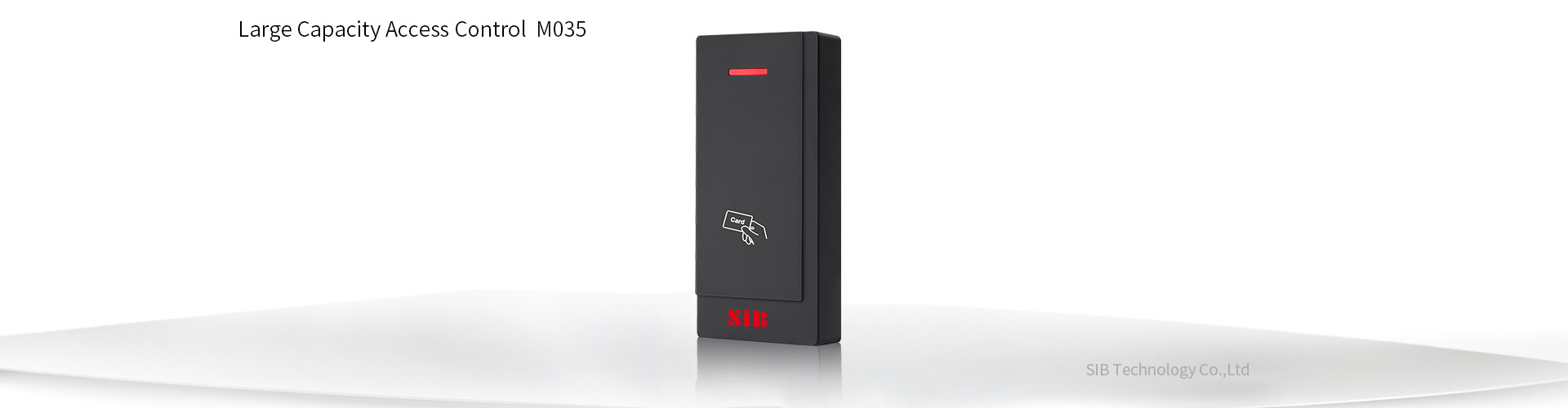

Big Memory RFID Card Access Control M035 - Big Capacity Access Control

English: 中文

Product introduction
Function characteristics
Technical parameters
System wiring diagram
Manual Down

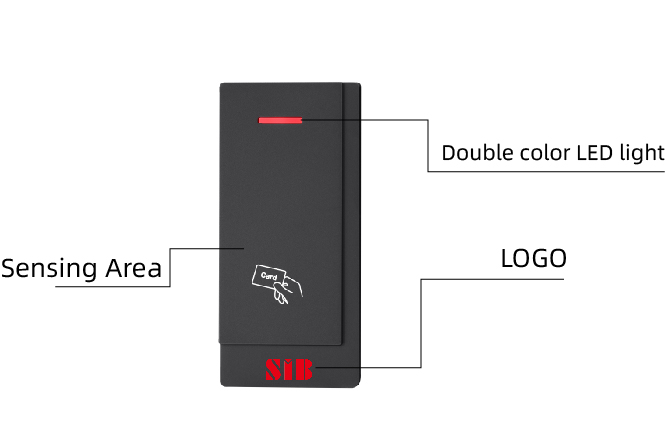

Product presentation

10000 users

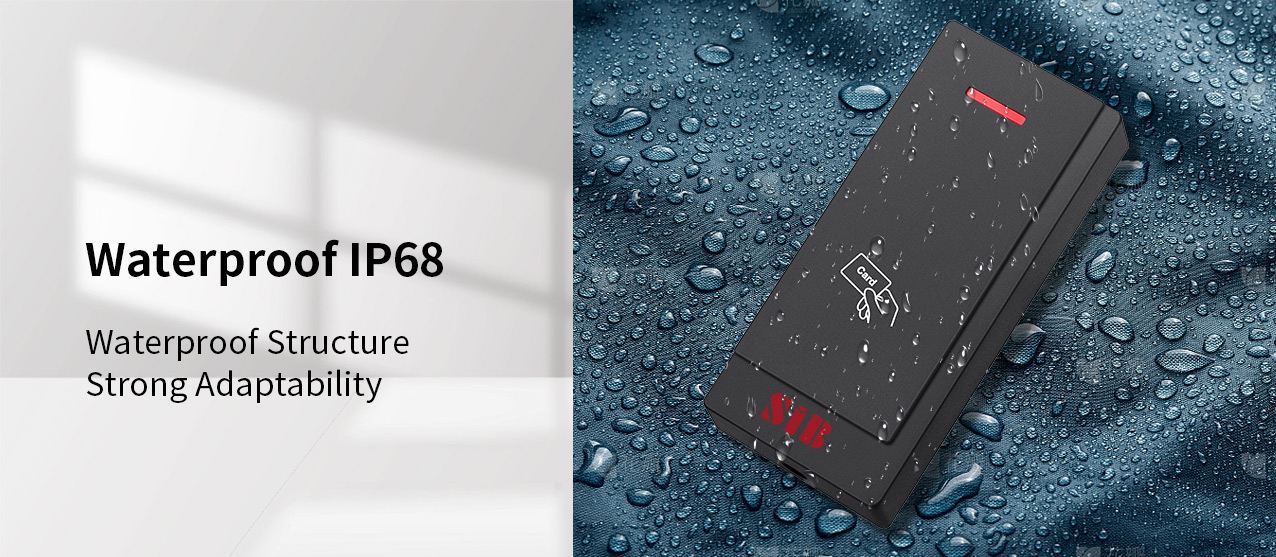

waterproof IP68
Can be standalone or set to reader mode
Support relay toggle mode
Data backup, from machine A to Machine B

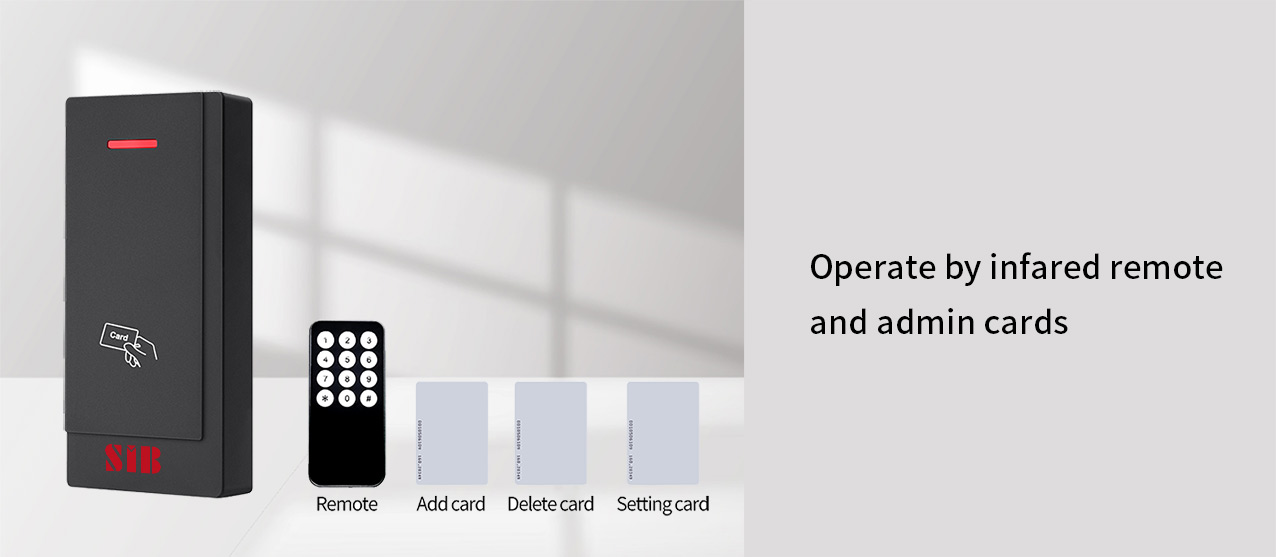

Operate by infared remote and admin cards

Operating Temperature: -20-60°C

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	M035EM	EM Card 125Khz	Indoor	Large Capacity RFID EM Card Reader and Controller
SIB	M035MF	MF Card 13.56Mhz	Indoor	Large Memory RFID Mifare Card Access Control
SIB	M035EM-W	EM Card 125Khz	IP68	Mass Storage RFID 125Khz Card Reader and Controller
SIB	M035MF-W	MF Card 13.56Mhz	IP68	Mass Memory RFID 13.56Mhz Card Access Control

Technical parameters

Card type: EM
Operation Current: ≤100mA
Operating Voltage: DC 12-24V
Operating Temperature: -20℃~60℃
Reading Range:2-5cm
Standby Current: ≤35mA
Operating Humidity: 0%~95%
Maximum Rated Current：≤1A
Door Opening Time:0-99s(Adjustable)
Dimensions: 105*46*20mm

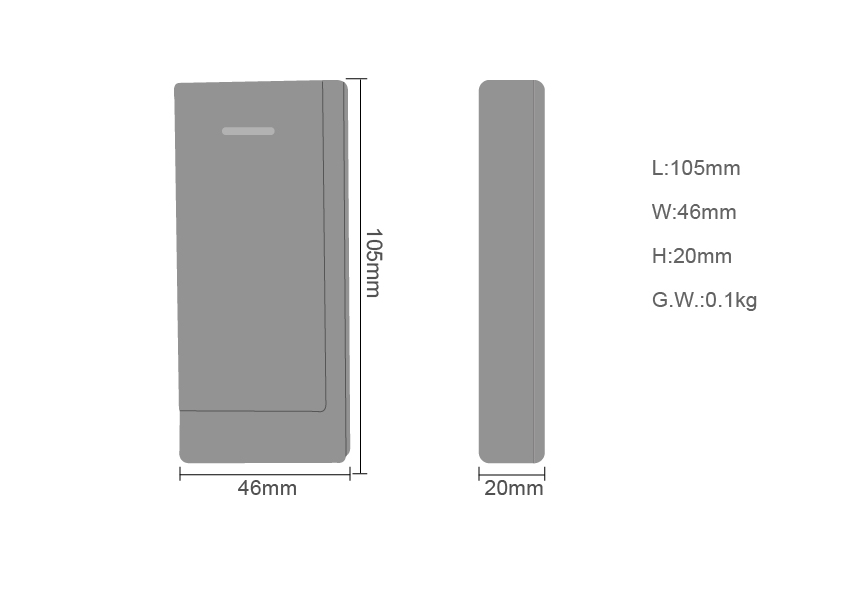

Size & Weight

Package size

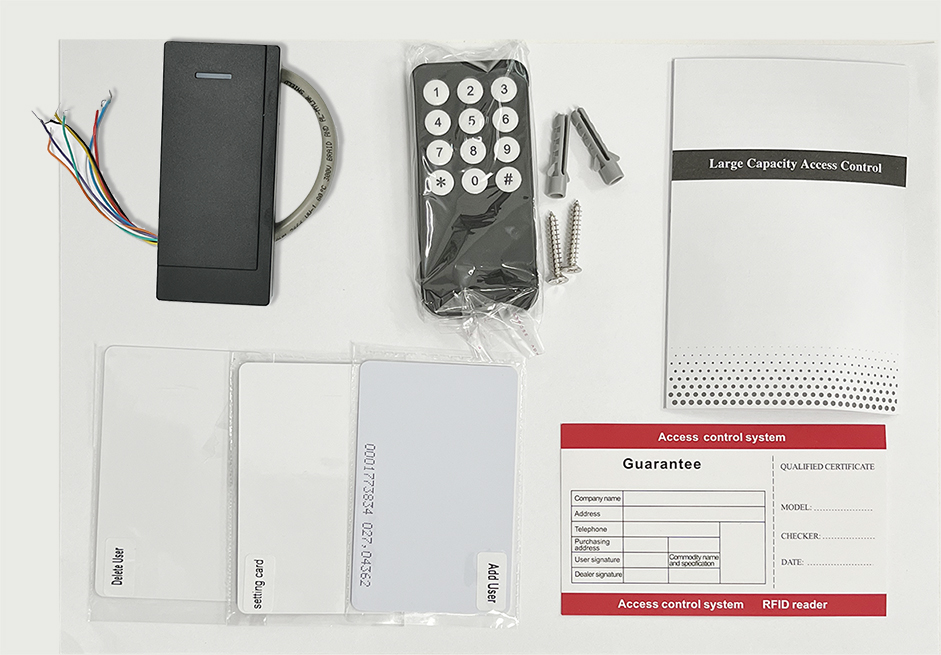

Packing list

Common power supply diagram

Special power supply diagram

Reader mode diagram

Click to download
