Product presentation


Capacity: 10,000 card users
Can be used as WG26 reader
Can connect external EM/HID WG26 output reader
Two units can be interlocked
Can realize Anti-passback function for single or two doors
Can add consecutive user cards

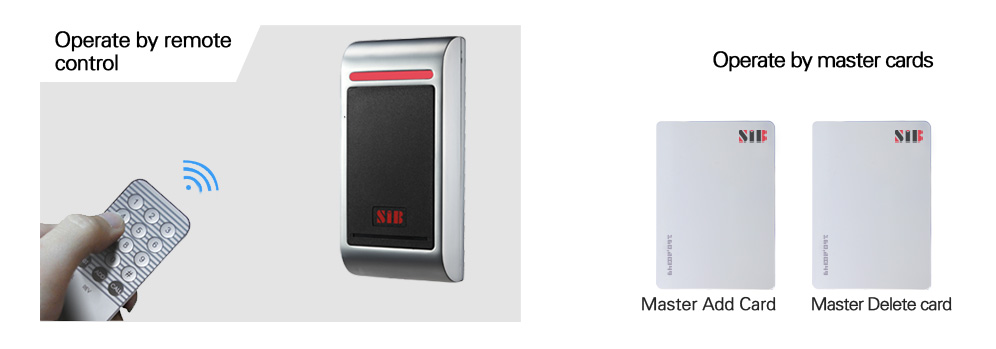

Can set master add card/master delete card





Product Version



Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
M2EM
EM Card 125Khz
IP68 Waterproof Large Memory Proximity Card Access Control
SIB
M2 EH
EM+H Card 125Khz
IP68
Waterproof Large Memory Keyless EM+HID Card Access Control






Technical parameters


Card type:EM

WaterproofIP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V±10%

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:5~8cm

Ambient temperature:-45℃~60℃

Door Opening Time: 099s(Adjustable)

Dimension:115 *56*22mm

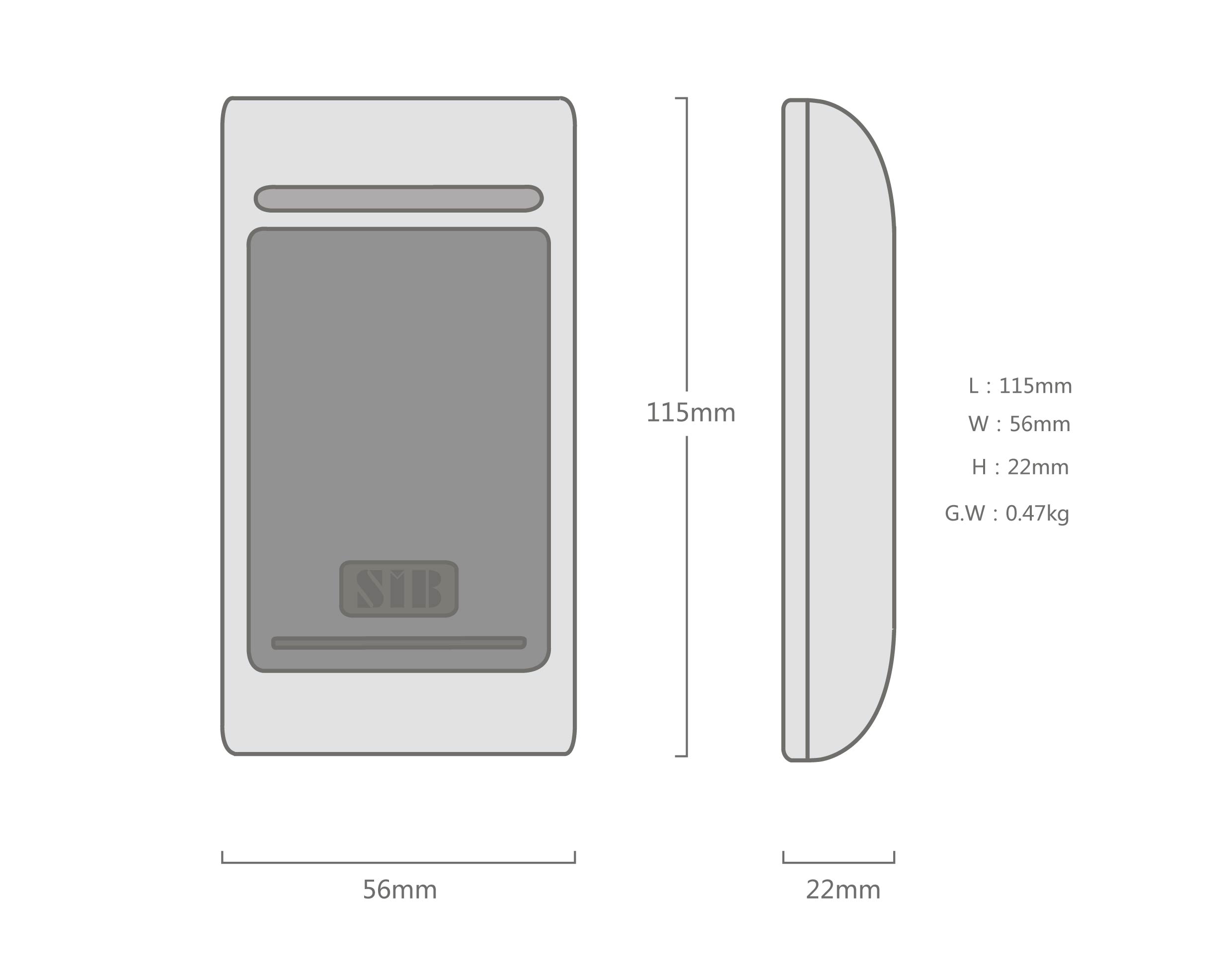

Size & Weight





Package size








Packing list

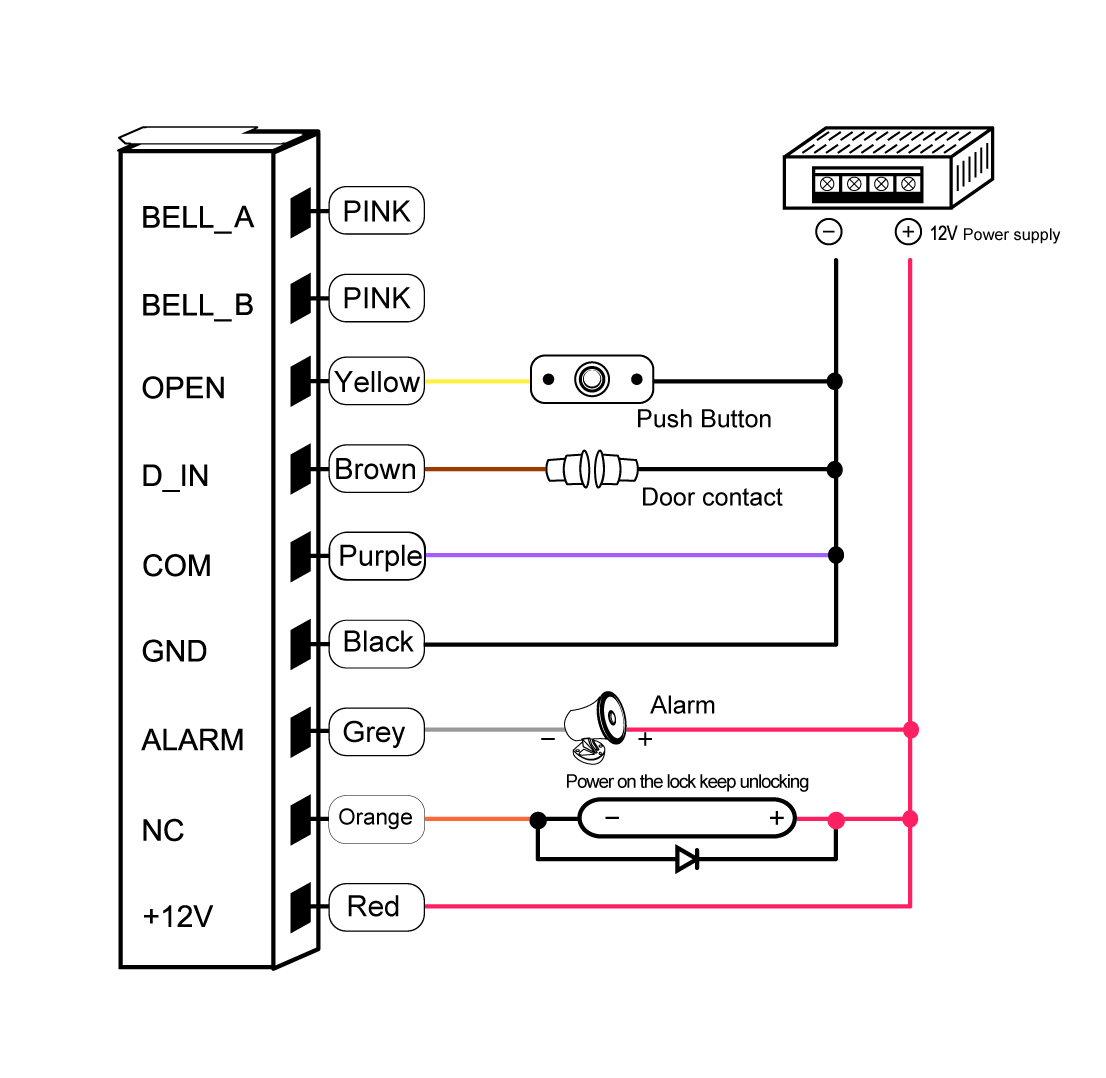

Common power supply diagram






Special power supply diagram
