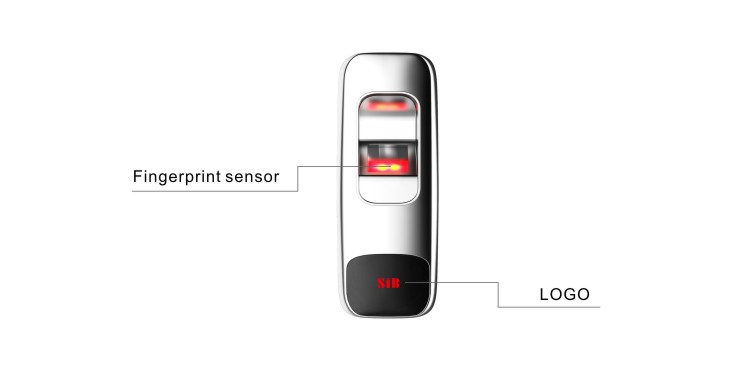

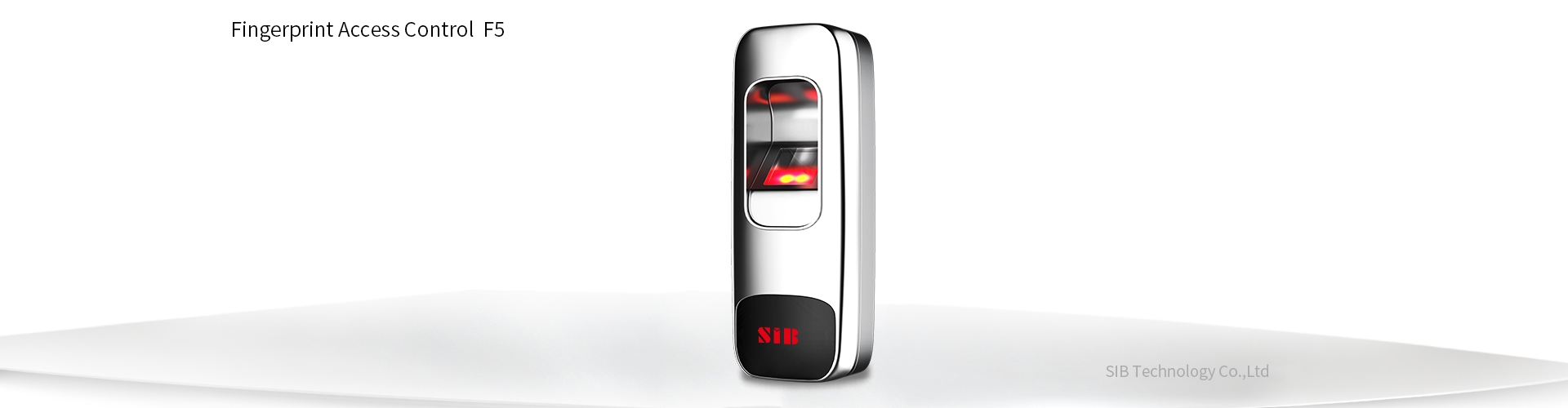

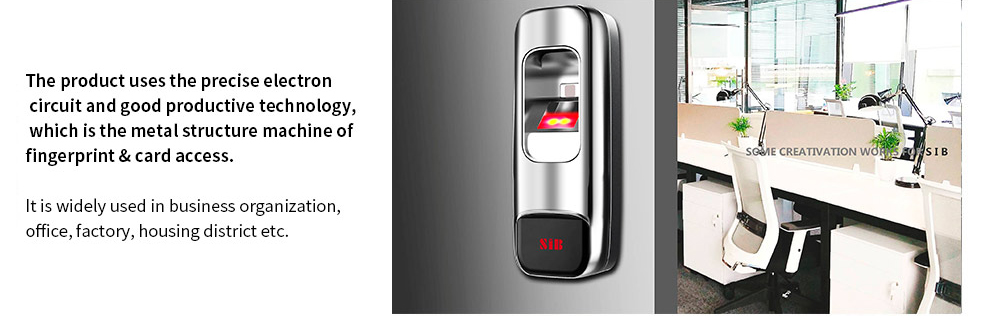

Product presentation


Waterproof IP68

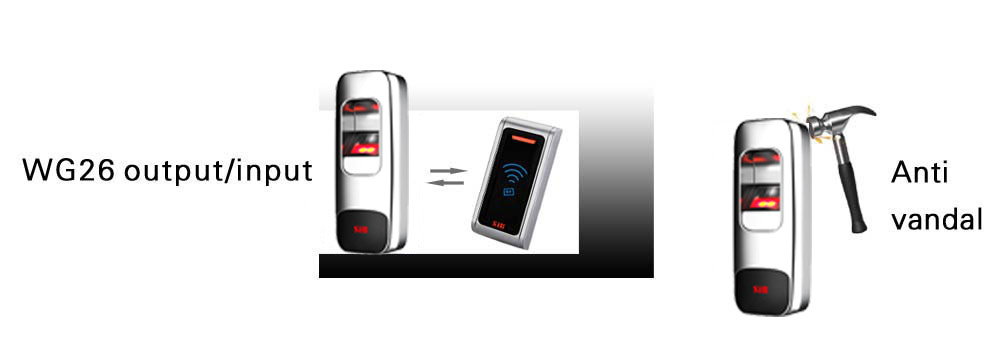

Metal case, anti-vandal
Anti-magnetic, can prevent opening lock from strong magnet

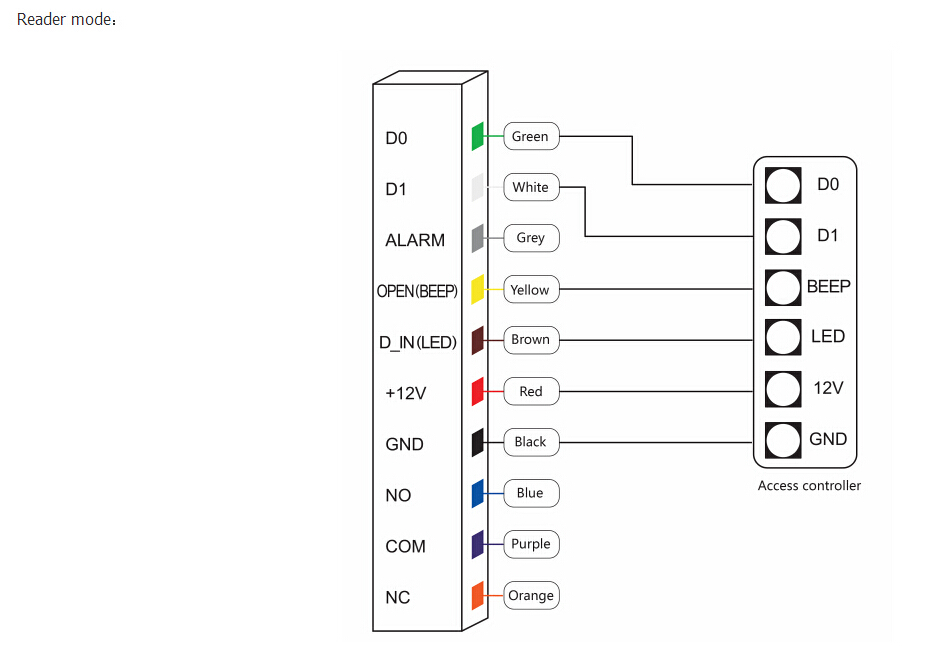

Fingerprint access controller and reader, WG26 Input / output
Capacity: 200 fingerprints and 500 cards
Two accesses: card, fingerprint


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  F5EM
  EM Card 125Khz/Fingerprint
Indoor
  EM 125KHZ Readers & Biometric Access Control
SIB
  F5EM-W   EM Card 125Khz/Fingerprint
IP68
  Outdoor Fingerprint Readers & Card Access Controller




Technical parameters


Card type:ID

Alarm Output Time:0~3min

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 0~99s

Dimension:118 *46*26mm

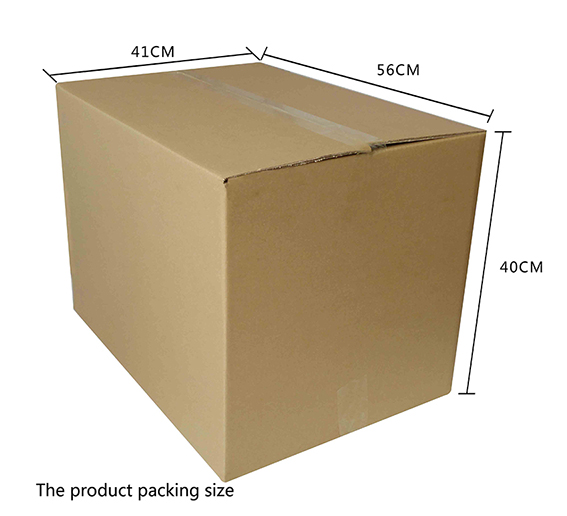

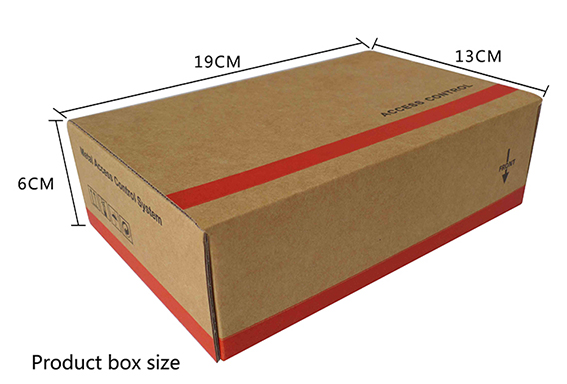

Package size

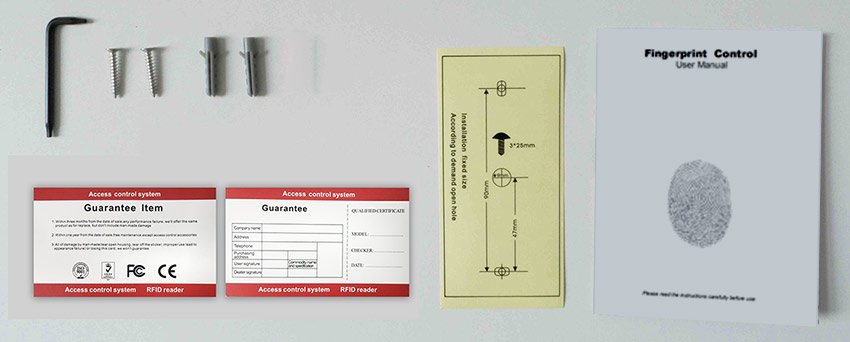

Packing list
