Product presentation

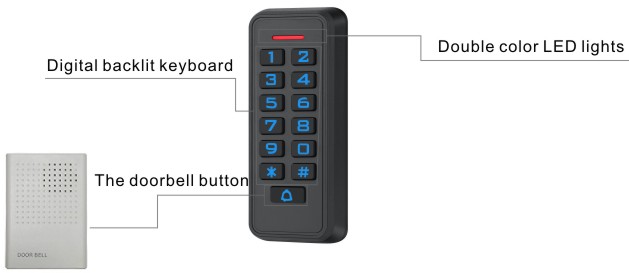

Digital backlit keypad

Multi-function standalone access controller and reader,

WG26 output/Input

Capacity: 10000 cards/ codes

Access ways:card,code,card+code,mobile APP






Product Version

Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  K33EM
  EM Card 125Khz
Indoor
  Tuya Smart Wifi Access Control Keypad Lock
SIB
  K33MF
  MF Card 13.56Mhz
Indoor
  Tuya App Access Control
SIB
  K33EM-W
  EM Card 125Khz
IP68
  Wifi Access Control
SIB
  K33MF-W
  MF Card 13.56Mhz
IP68
  Keypad Door Entry with Tuya App Unlocking






Technical parameters


Card type:EM/MF/HID/CPU

Plastic case

Environment Humidity:10%~90%

lock output:≤1A
Working voltage:DC12V±10%

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS
Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:111 *46*22mm






Package size









Packing list




Common power supply diagram



Special power supply diagram


Reader Mode
