Product presentation
Can set relay toggle mode, pure reader mode, standalone access control mode
Add and delete users by master card/remote control
Card access only，10,000 card users
The unlocking signal adopts NO,NC,COM output of relay
Wiegand 26 input and output
With data backup function
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
E86EM-W |
EM Card 125Khz |
IP68 |
|
|
SIB |
E86MF-W |
EM+H Card 125Khz |
IP68 |
|
Technical parameters
Card Type：EM/MF
Operating Voltage: DC 12
Standby Current: ≤35mAA
reading Range：2-5cm
Operation Current: ≤100mA
Operating Temperature: -20℃~60℃
Operating Humidity: 0%~95%
Maximum Rated Current：≤1A
Door Opening Time:0-99s(Adjustable)
Alarm Output Time：0~3min

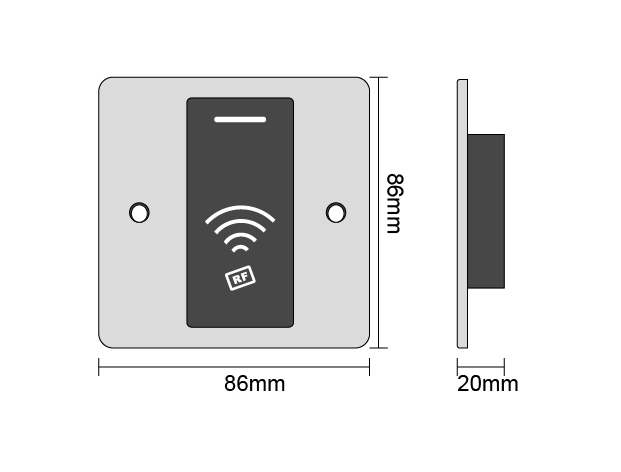

Size & Weight
Package size
Common power supply diagram
Special power supply diagram
Reader mode diagram
