Operating Temperature: -20-60°C
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
M010EM |
EM Card 125Khz |
Indoor |

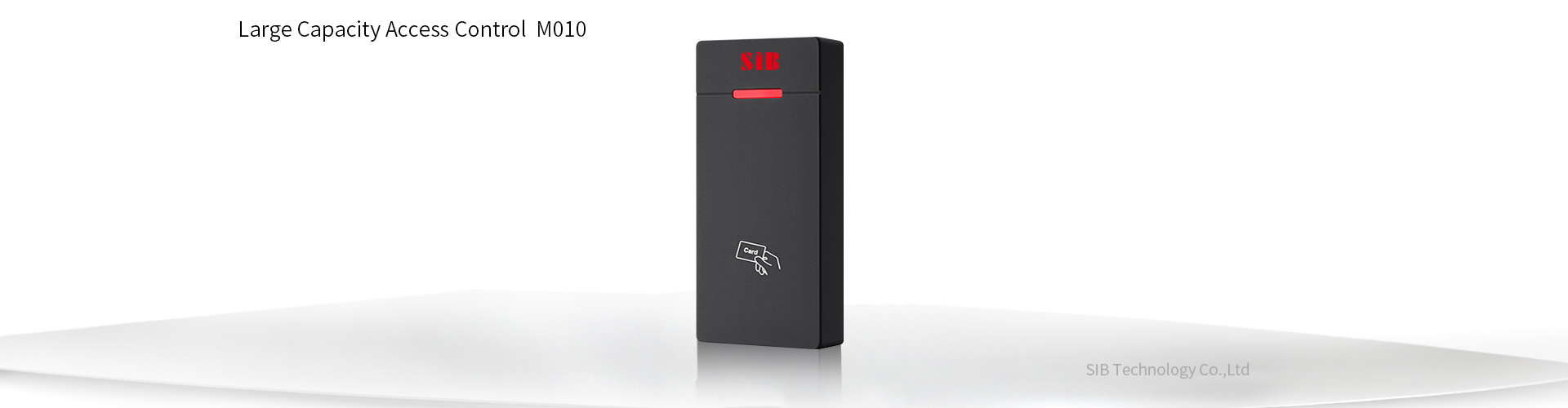

Mass Memory EM Card Access Control |
|
SIB |
M010MF |
MF Card 13.56Mhz |
Indoor |
Big Capacity Mifare Card Access Controller |
|
SIB |
M010EM-W |
EM Card 125Khz |

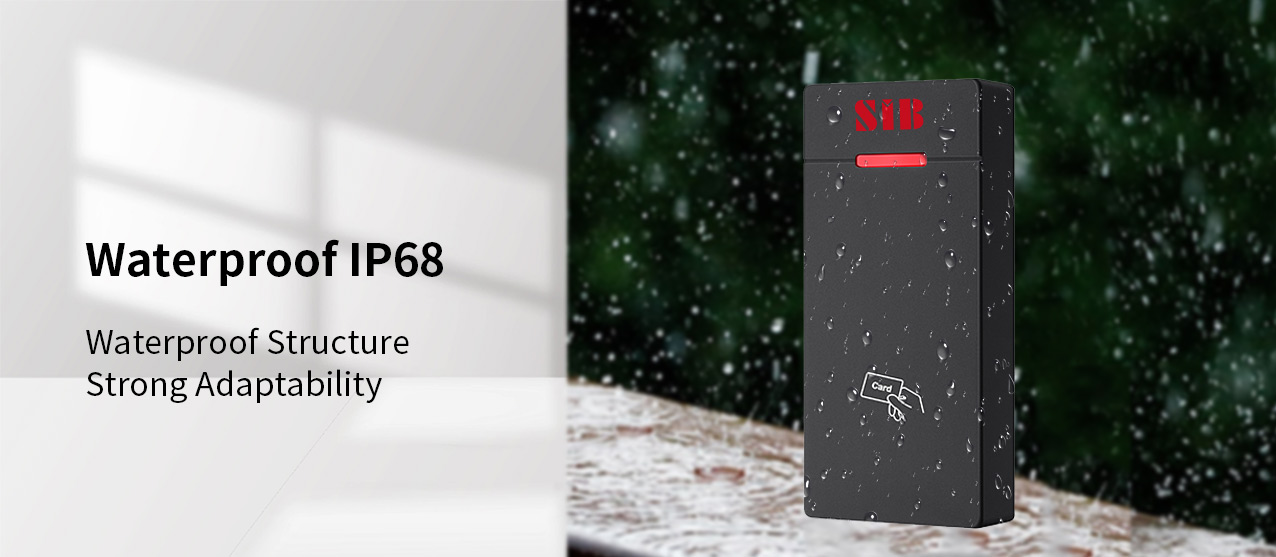

IP68 |
Mass Capacity 125Khz Card Access Controller |
|
SIB |
M010MF-W |
MF Card 13.56Mhz |
IP68 |
Big Memory 13.56Mhz Card Access Control |
Technical parameters
Card type: EM
Operation Current: ≤100mA
Operating Voltage: DC 12-24V
Operating Temperature: -20℃~60℃
Reading Range:2-5cm
Standby Current: ≤35mA
Operating Humidity: 0%~95%
Maximum Rated Current：≤1A
Door Opening Time:0-99s(Adjustable)

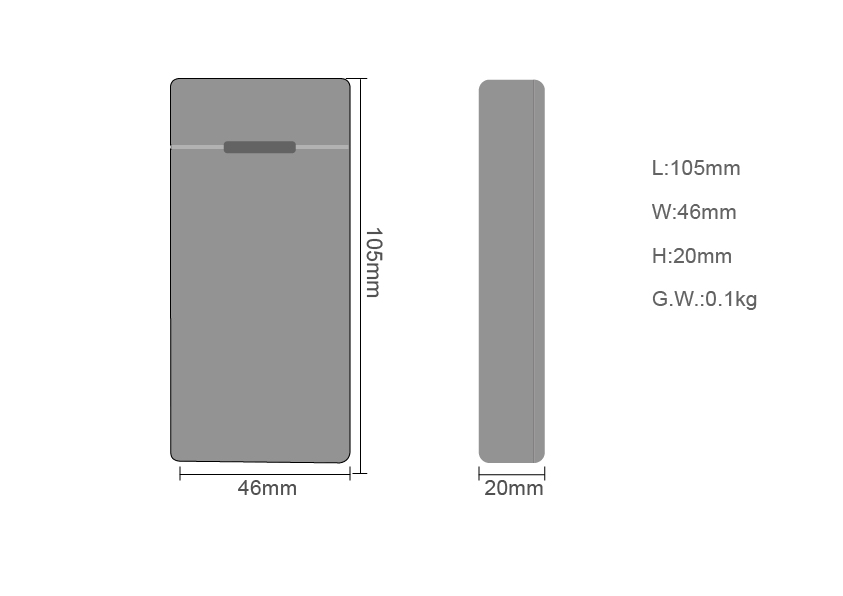

Dimensions: 105*46*20mm
Size & Weight
Package size

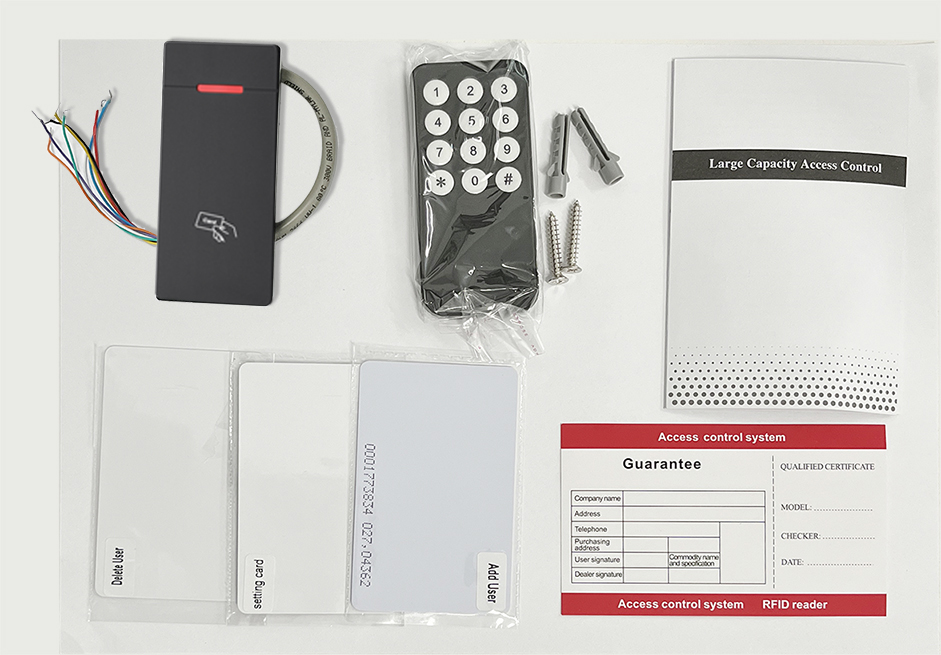

Packing list
Common power supply diagram
Special power supply diagram
Reader mode diagram
