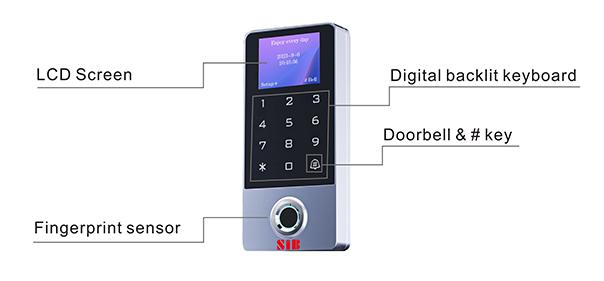

Product presentation


Capacity:1000 cards/codes,200 fingerprints
WG26-58 input/output
With data backup function
Can set admin add/delete card
Adjustable volume,multiple language choices

Access ways:fingerprint,card,code,mobie APP(optional)

Waterproof IP68

Tuya Wifi function (optional)
Remote unlock & manage users by mobile phone App

Check visitor records
Set temporary code


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
TF1-LCD EM
EM Card 125Khz
Indoor

SIB
TF1-LCD MF
MF Card 13.56Mhz
Indoor

SIB
TF1-LCD EF
EM+MF Card 125Khz+13.56Mhz
Indoor

SIB
TF1-LCD EM-W
EM Card 125Khz
IP68

SIB
TF1-LCD MF-W
MF Card 13.56Mhz
IP68

SIB
TF1-LCD EF-W
EM+MF Card 125Khz+13.56Mhz
IP68

SIB
TF1-LCD EM-W(WIFI)
EM Card 125Kh
IP68

SIB
TF1-LCD MF-W(WIFI)
MF Card 13.56Mhz
IP68

SIB
TF1-LCD EF-W(WIFI)
EM+MF Card 125Khz+13.56Mhz
IP68

Technical parameters


Card type:EM/MF/HID/CPU

Capacity: 10000cards/codes&200fingerprints

waterproof IP68

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12-24V

Static electricity:≤35mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 0~99s

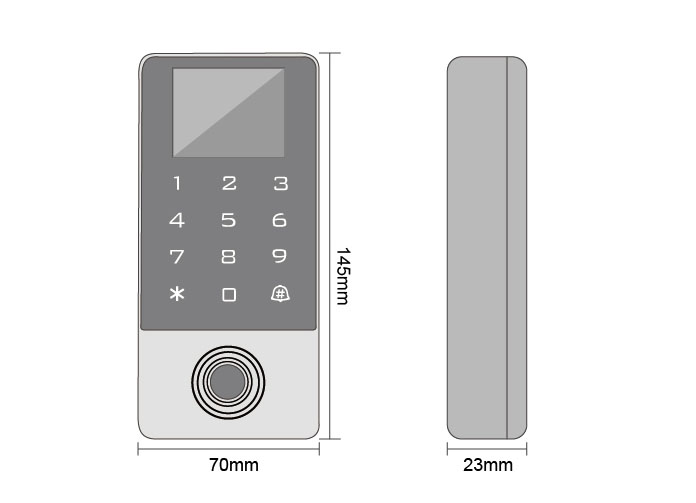

Product Dimension







Package size






Packing list




Common power supply diagram






Reader mode diagram
