Technical parameters

Card type：EM/MF/HID/CPU

Capacity: 10000cards/codes&200fingerprints

waterproof IP68

Environment Humidity：10%～90%

Lock output：≤1A

Working voltage：DC12-24V

Static electricity：≤35mA

Alarm output：≤20A

Output short circuit protection time：≤100μS

Card read distance：2～5cm

Ambient temperature：-40℃～60℃

Door Opening Time: 0～99s

---

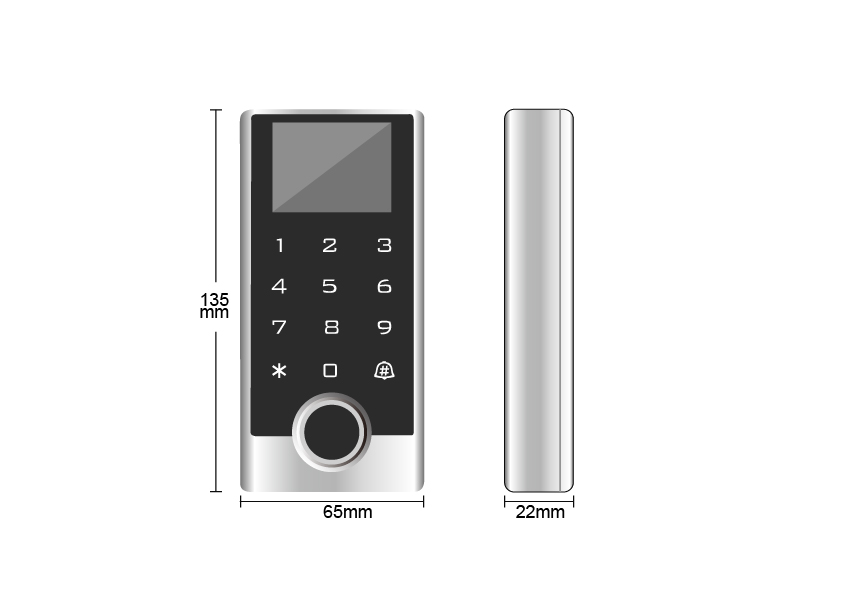

Product Dimension

---

Package size

---

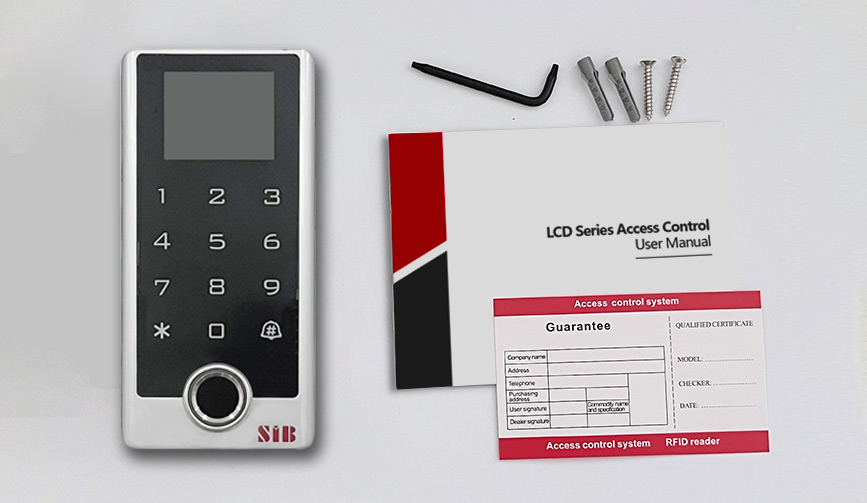

Packing list
