Product presentation
Metal case
Waterproof rating:IP68

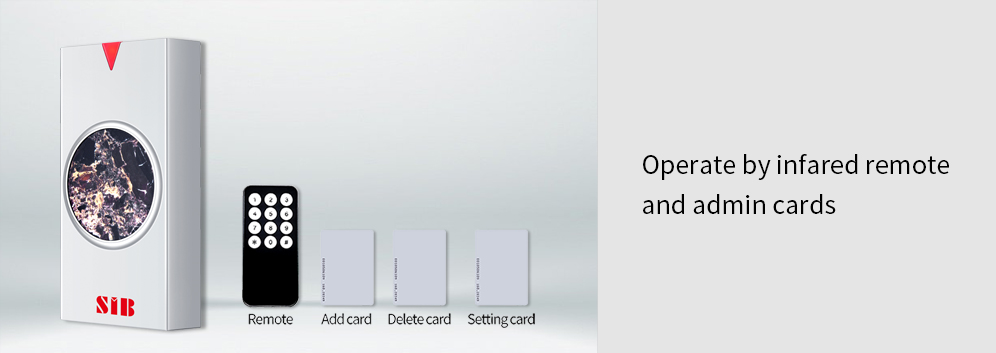

Operate by infrared remote Controller
Access way: Card access only
Support admin setting card,add card,delete card
Capacity:10,000 card users
Can set Standalone access control mode, Toggle relay mode, Reader mode
Reader format can be set for WG26/34
With data backup function
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
M004EM |
EM Card 125Khz |
Indoor |
High Storage EM Wristband Access Control |
|
SIB |
M004MF |
MF Card 13.56Mhz |
Indoor |
Mass Memory Mifare Keyfobs Access Control |
|
SIB |
M004EM-W |
EM Card 125Khz |
IP68 |
Big Capacity Waterproof 125Khz Tags Access Control |
|
SIB |
M004MF-W |
MF Card 13.56Mhz |
IP68 |
Mass Storage Outdoor 13.56Mhz Fobs Access Control |
Technical parameters
Operating Voltage: DC 12V
Standby Current: ≤ 35mA
Operating Current: ≤100mA
Operating Temperature: -35℃~60℃
Operating Humidity: 0%~95%
Electric lock signal relay contact current：≤1A
Alarm signal MOS tube output current: ≤1A
Unlocking time: 0~300s adjustable
Dimensions: 99*49*19mm

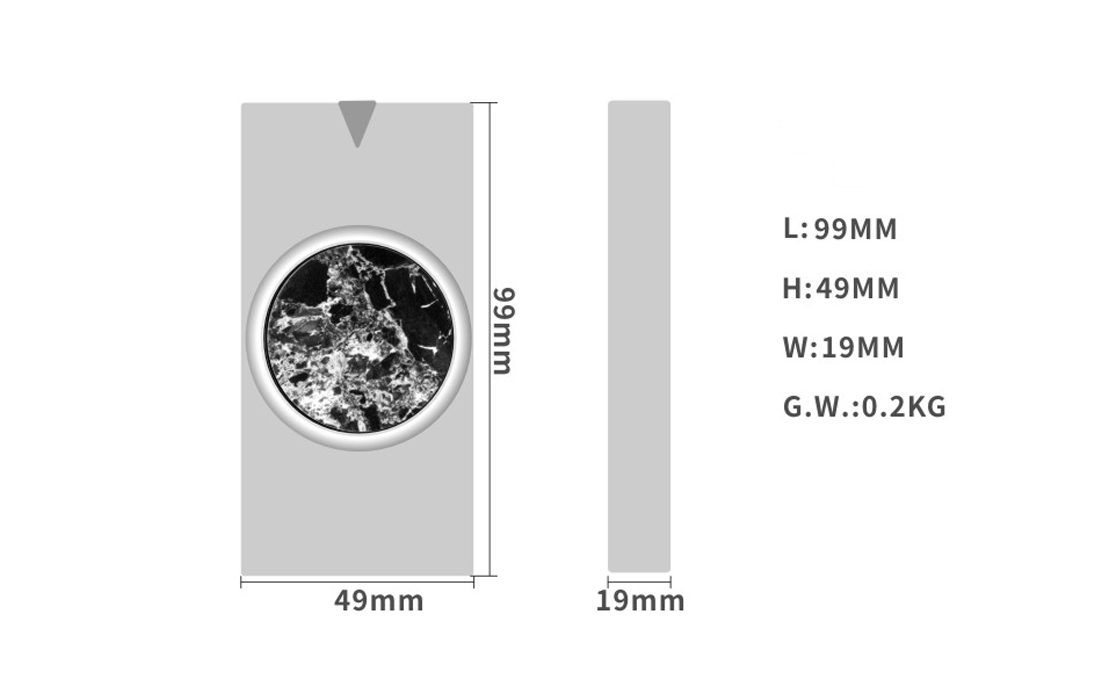

Size & Weight
Package size

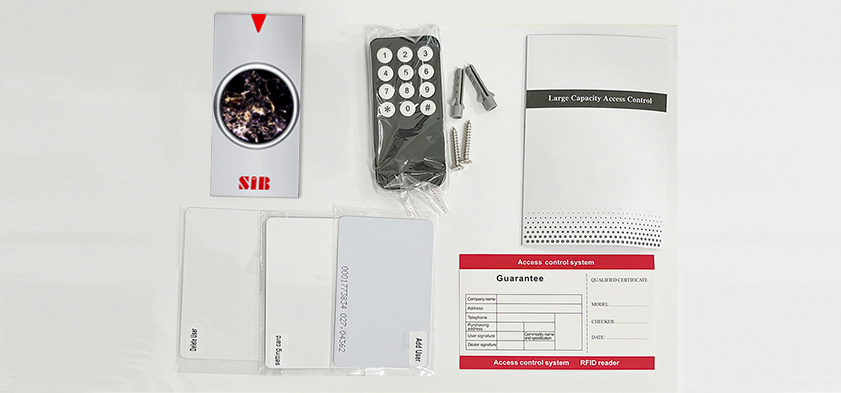

Packing list
Common power supply diagram
Special power supply diagram
Reader mode diagram
