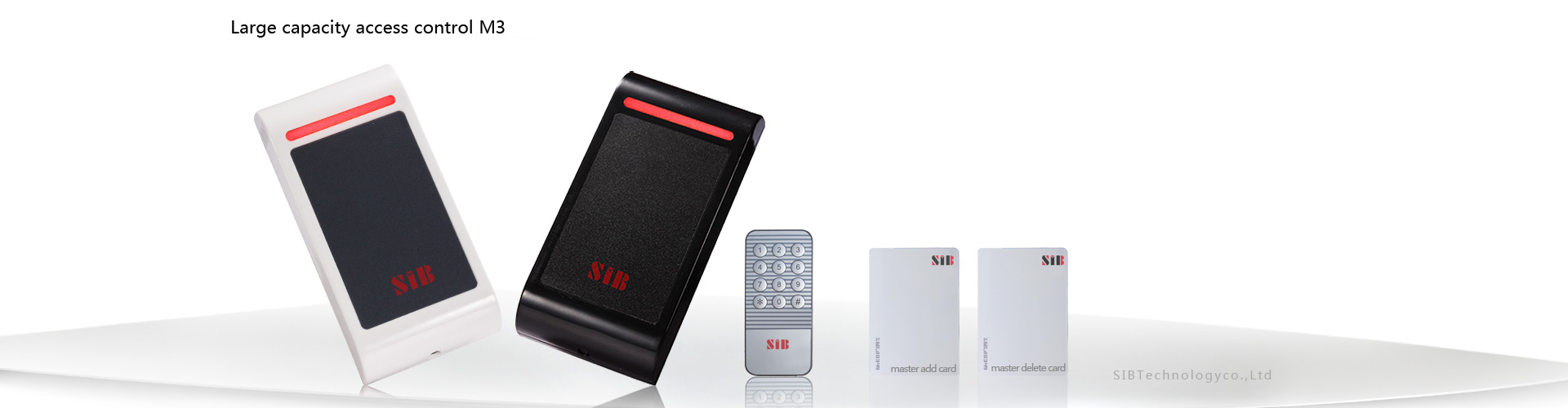

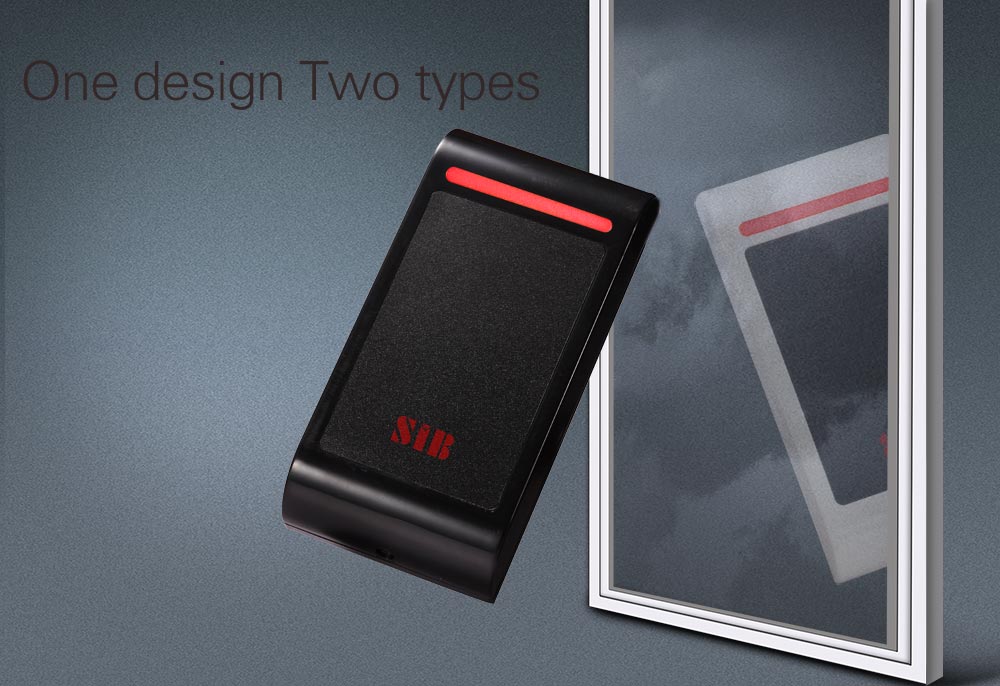

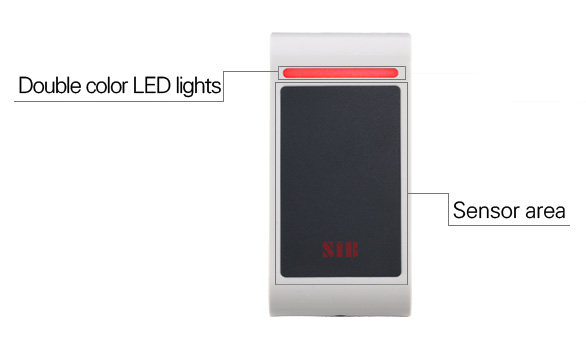

Product presentation

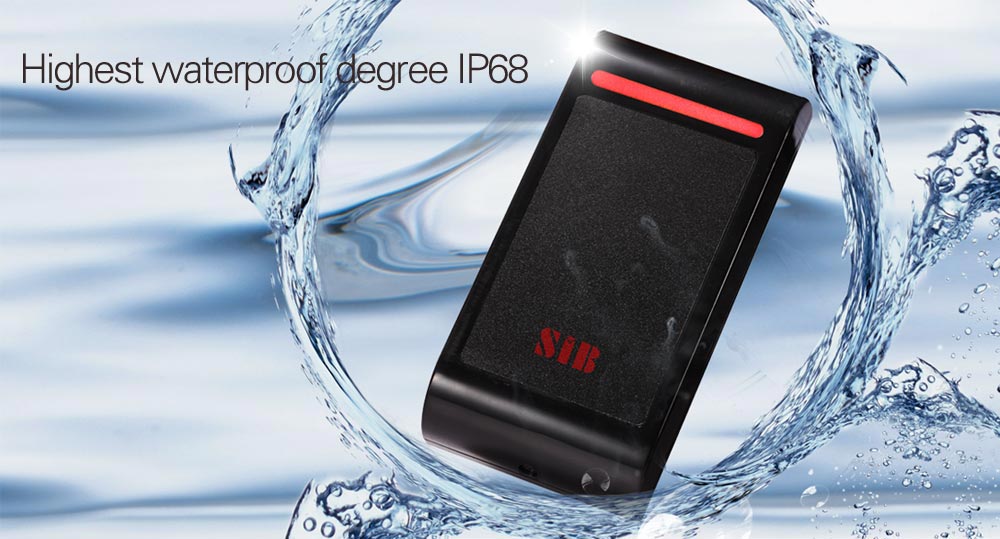

Rainproof, moistureproof, durable
Capacity: 10,000 card users
Can be used as WG26 reader
Can connect external EM/HID WG26 output reader
Two units can be interlocked
Can realize Anti-passback function for single or two doors
Can add consecutive user cards

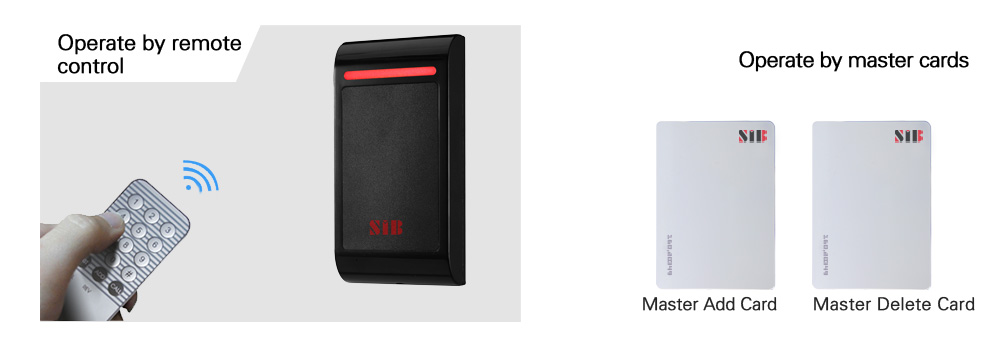

Can set master add card/master delete card



Product Version

Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
M3EM
EM Card 125Khz
Indoor
Mass Memory Keyless EM Card Access Control
SIB
M3EH
EM+H Card 125Khz
Indoor
Mass Memory Keyless Mifare Tag Access Control
SIB
M3EM-W
EM Card 125Khz
IP68
Big Capacity Keyless RFID 125Khz Card Access Control
SIB
M3EH-W
EM+H Card 125Khz
IP68
Big Capacity Keyless RFID 123.56Mhz Card Access Control


Technical parameters


Card type:EM

Waterproof IP68

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:3~8cm

Ambient temperature:-45℃~60℃

Door Opening Time: 099s(Adjustable)

Dimension:115 *56*22mm

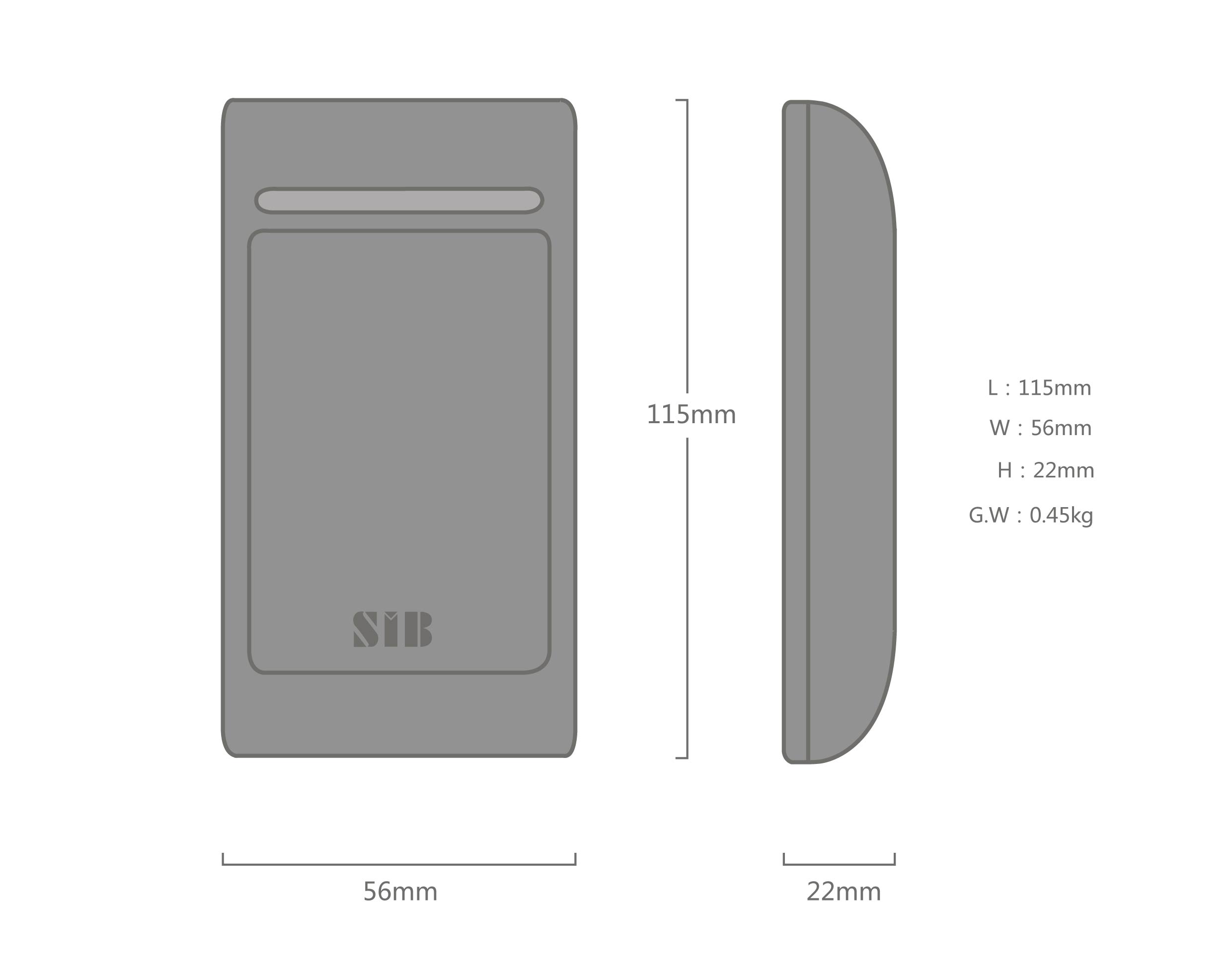

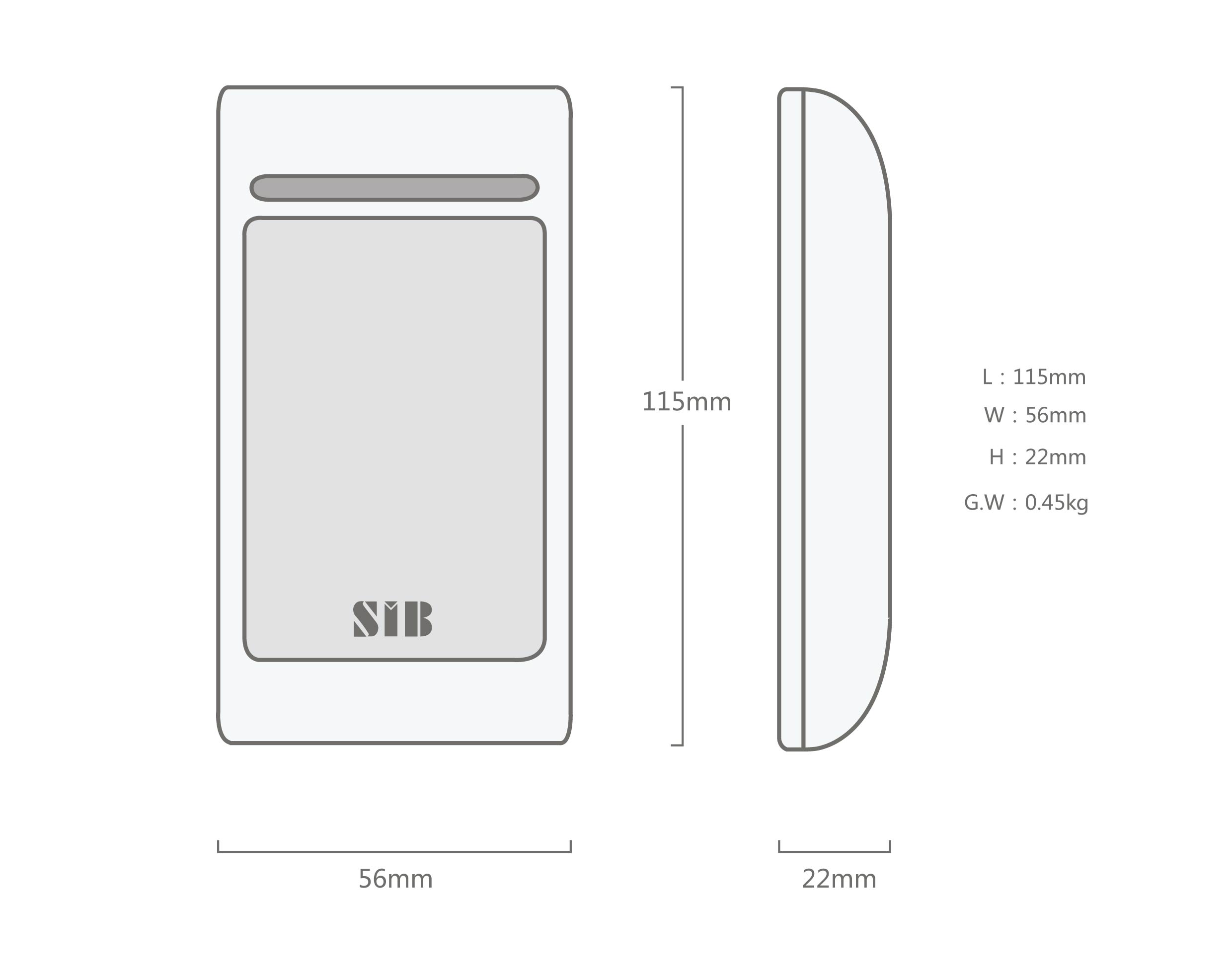

Size & Weight





Package size

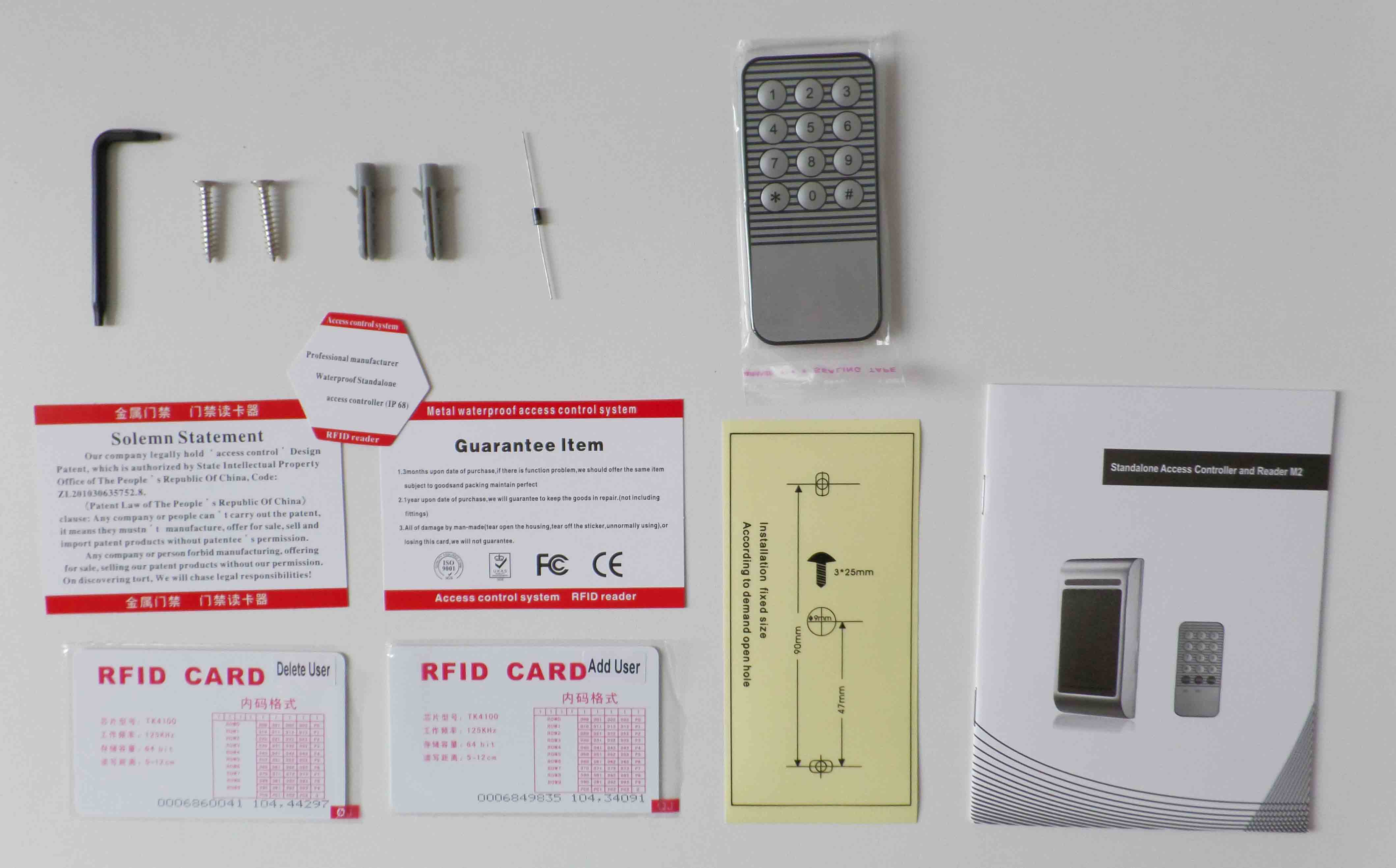

Packing list





Common power supply diagram






Special power supply diagram
