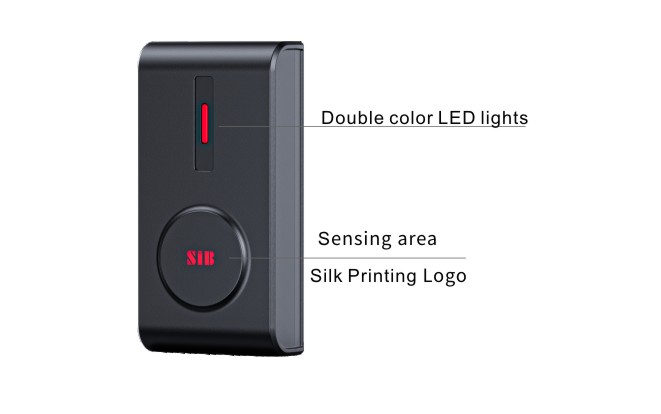

Product presentation
ABS case

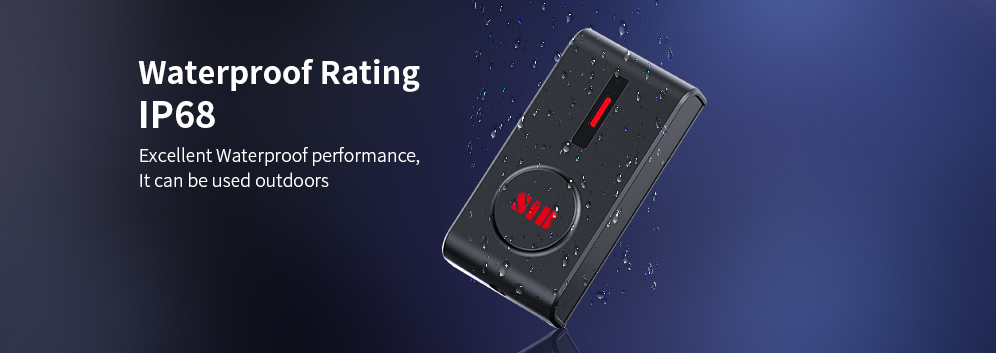

Waterproof rating:IP68

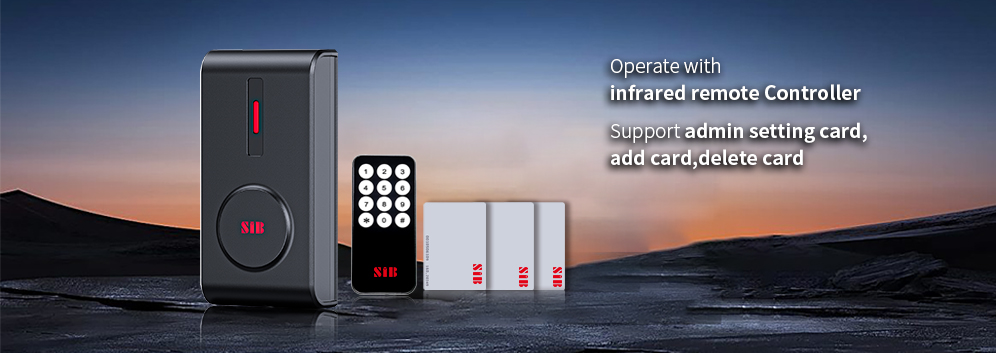

Operate by infrared remote Controller
Access way: Card access only
Support admin setting card,add card,delete card
Capacity:10,000 card users
Can set Standalone access control mode, Toggle relay mode, Reader mode
Reader format can be set for WG26/34
With data backup function
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
M109EM |
EM Card 125Khz |
Indoor |
High Storage EM Wristband Access Control |
|
SIB |
M109MF |
MF Card 13.56Mhz |
Indoor |
Mass Memory Mifare Keyfobs Access Control |
|
SIB |
M109EM-W |
EM Card 125Khz |
IP68 |
Big Capacity Waterproof 125Khz Tags Access Control |
|
SIB |
M109MF-W |
MF Card 13.56Mhz |
IP68 |
Mass Storage Outdoor 13.56Mhz Fobs Access Control |
Technical parameters
Card type:EM/MF/HID
Reading range:2~5cm
Operating Voltage: DC 12V
Standby Current: ≤ 30mA
Operating Current: ≤100mA
Operating Temperature: -40℃~60℃
Operating Humidity: 10%~90%
Electric lock signal relay contact current：≤1A
Short circuit protect time: ≤100μs
Unlocking time: 0~99s adjustable
Product dimension:82*42*18mm
Common power supply diagram
Special power supply diagram
Reader mode diagram
