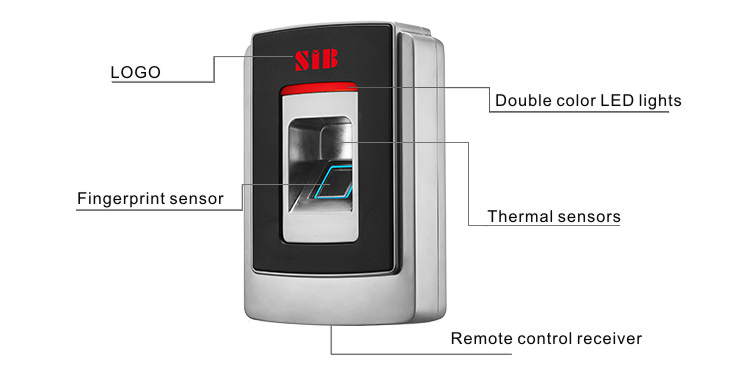

Product presentation
Zinc alloy case, durable, anti-vandal
Waterproof degree：IP68
Antimagnetic: can prevent untrust person
to open lock by strong magnets
Large capacity with 200 fingerprints & 500 card users

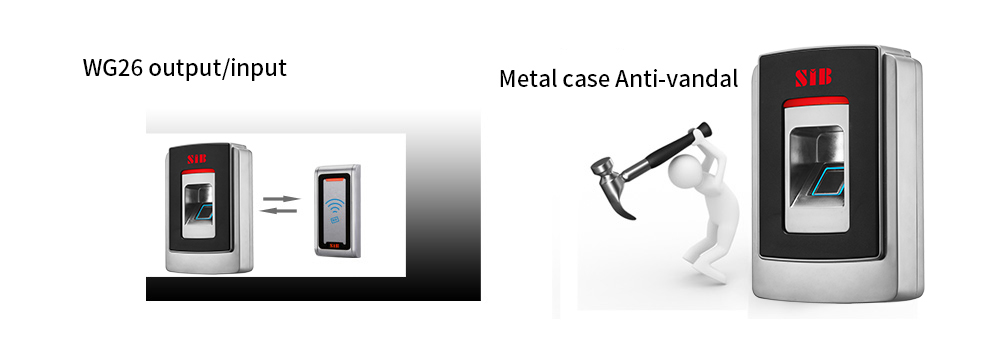

Can be used as WG26 reader
Can connect external EM/IC/HID WG26 reader
Two units can be interlocked
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
F301EM
EM Card 125Khz/Fingerprint
Indoor
Metal EM Card Reader & Fingerprint Access Control
SIB
F301EM-W
EM Card 125Khz/Fingerprint
IP68
Waterproof RFID Reader & Biometric Access Control
Technical parameters
Card type：MF
Capacity: 200fingerprints&500cards
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V\
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-35℃～60℃
Door Opening Time: 0～99s
Dimension：126 *61*34mm

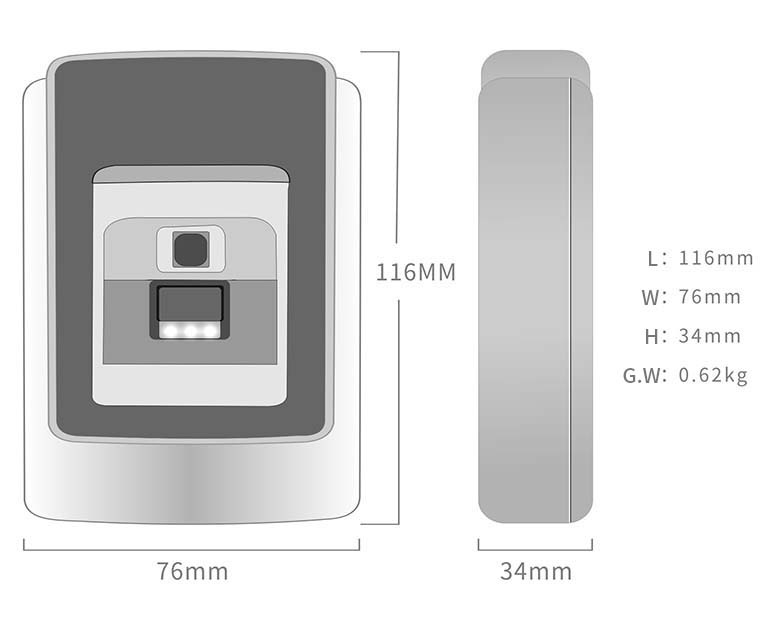

Size & Weight

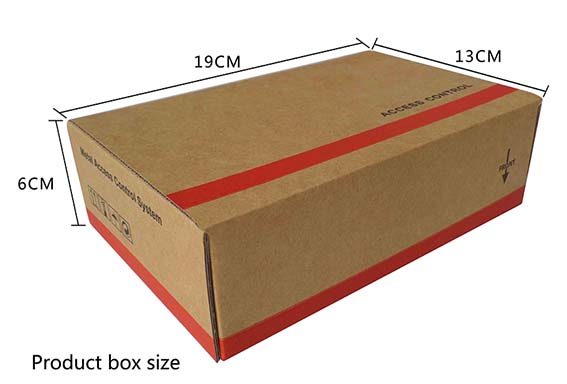

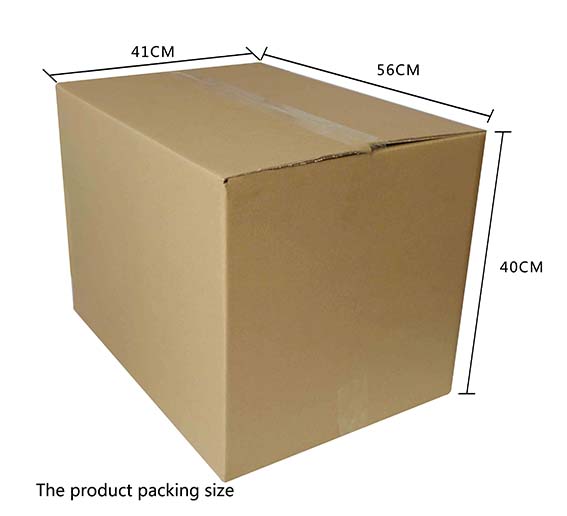

Package Size

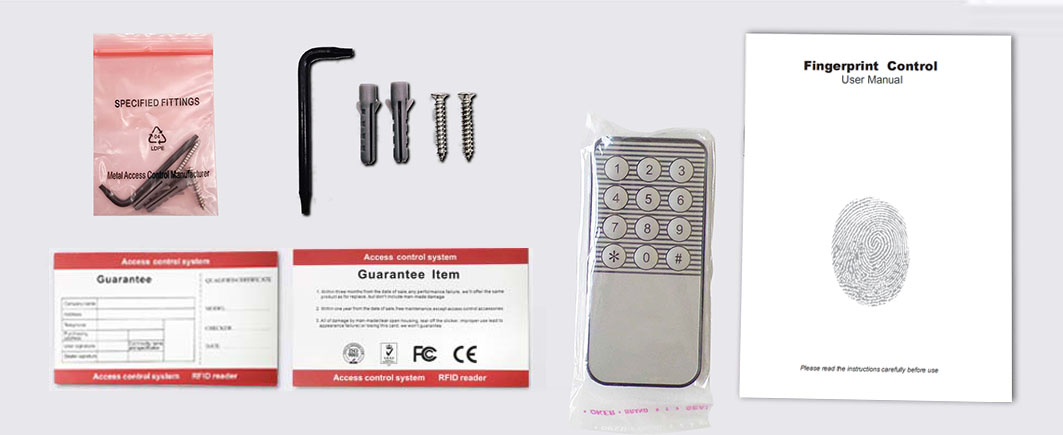

Package List

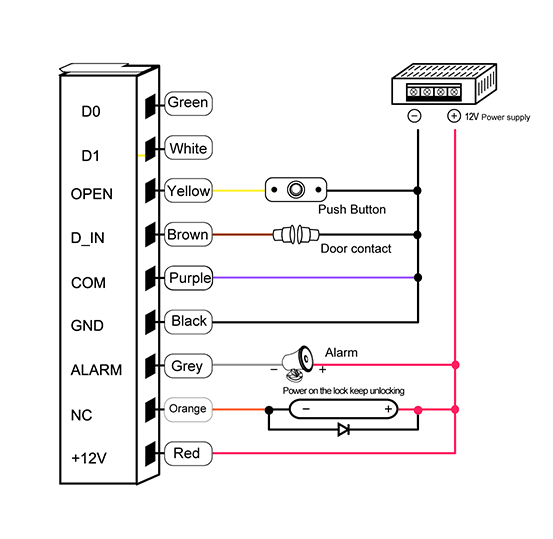

Common power supply diagram
Special power supply diagram
