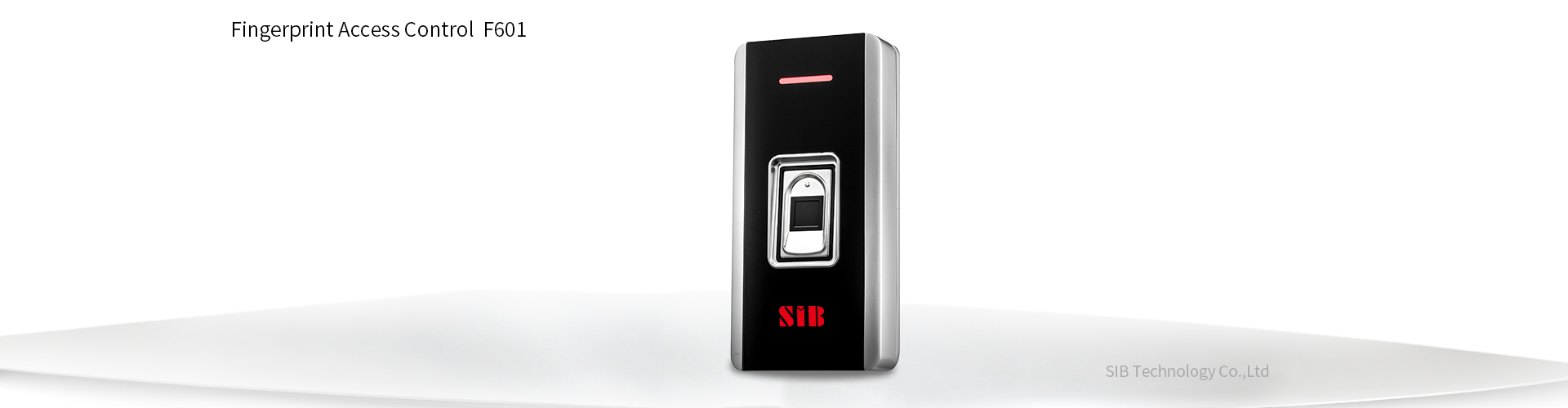

Product presentation

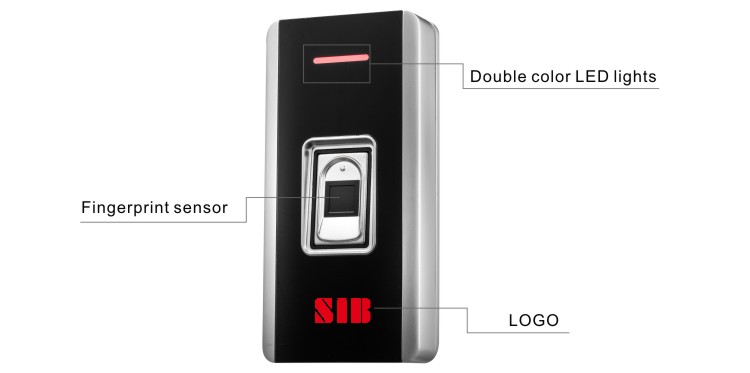

Semiconduct fingerprint reader
Metal case, anti-vandal

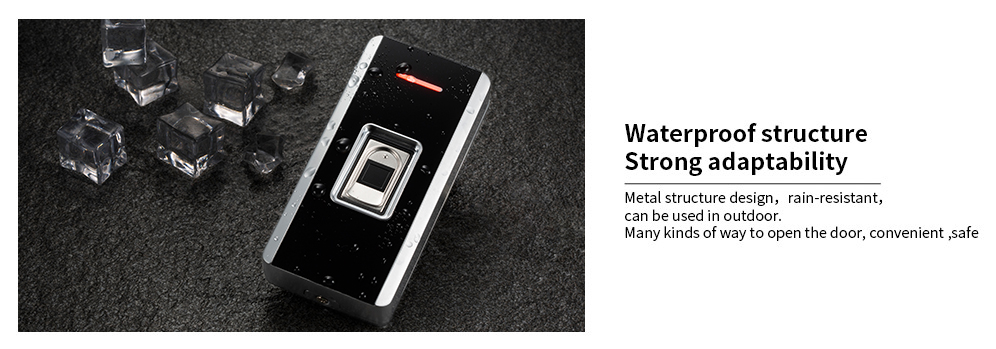

Waterproof degree:IP68

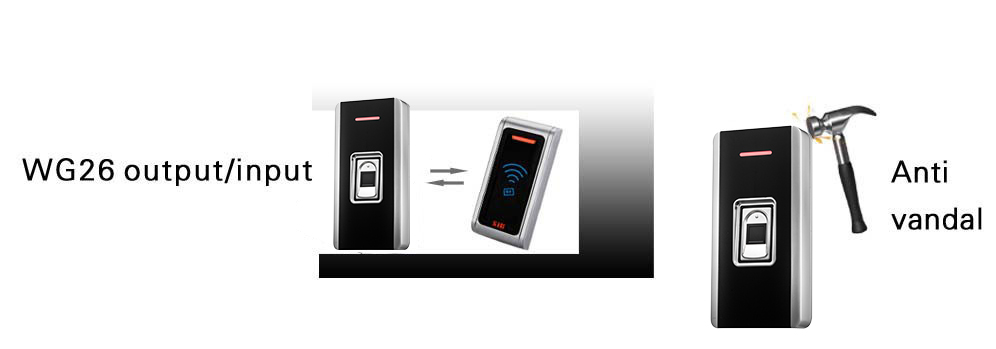

Fingerprint access controller and reader, WG26 Input / output
Capacity: 300 fingerprints and10,000 cards
Accesses ways: fingerprint ,card

Product Version

Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
F601EM
EM Card 125Khz/Fingerprint
Indoor
Metal RFID Card & Fingerprint Access Control
SIB
F601MF
MF Card 13.56Mhz/Fingerprint
Indoor
Metal Mifare Card & biometric Access Control
SIB
F601EM-W
EM Card 125Khz/Fingerprint
IP68
Waterproof Proximity Card & Biometric Access Control
SIB
F601MF-W
MF Card 13.56Mhz/Fingerprint
IP68
Outdoor Mifare Tag & Fingerprint Access Control





Technical parameters


Card type:ID/IC

Waterproof:IP68

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 0~99s

Dimension:118 *56*22mm

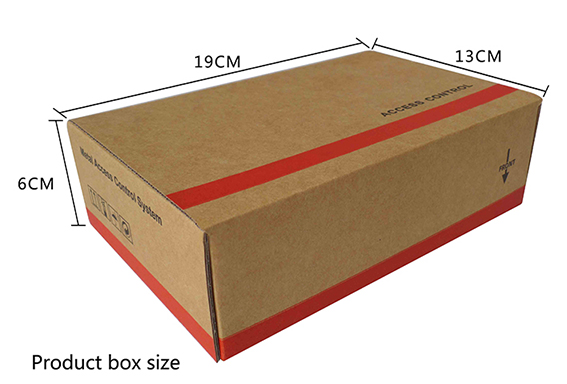

Package size

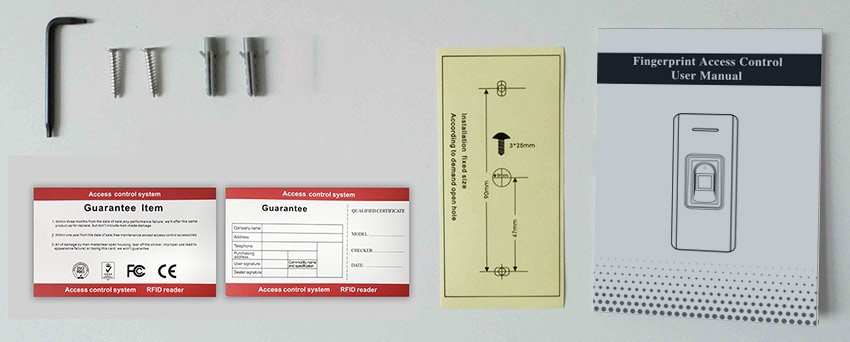

Packing list











Click to download
