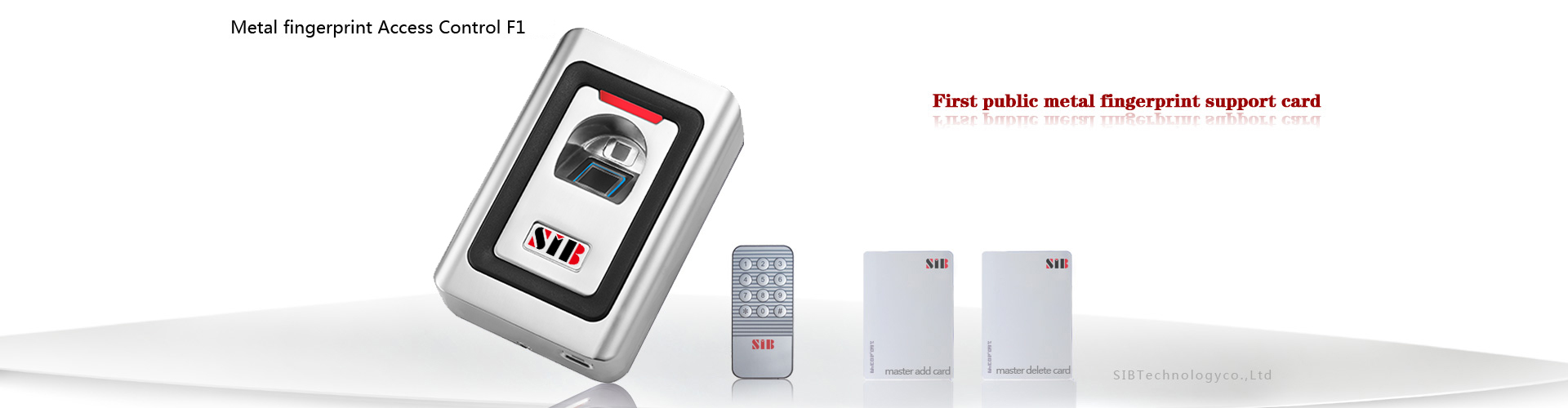

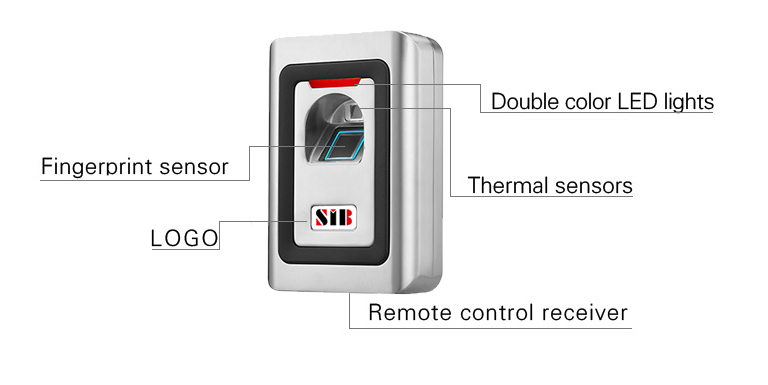

Product presentation


Zinc alloy case, durable, anti-vandal
Antimagnetic: can prevent untrust person
to open lock by strong magnets
Large capacity with 1,000 fingerprints & 2,000 card users
Can be used as WG26 reader
Can connect external EM/IC/HID WG26 reader
Two units can be interlocked



Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
  F1
  Fingerprint
Indoor
  Metal Biometric Access Control
SIB
  F1EM   EM Card 125Khz/Fingerprint
Indoor
  Metal Wiegand26 Fingerprint Reader& Access Controller







Technical parameters


Card type:fingerprint & EM card

Capacity: 1,000 fingerprints & 2,000 cards

Environment Humidity:10%~90%

Lock output:≤3A

Working voltage:DC12V

Static electricity:≤30mA Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:3~8cm

Ambient temperature:-45℃~60℃ Door

Opening Time: 099s(Adjustable)

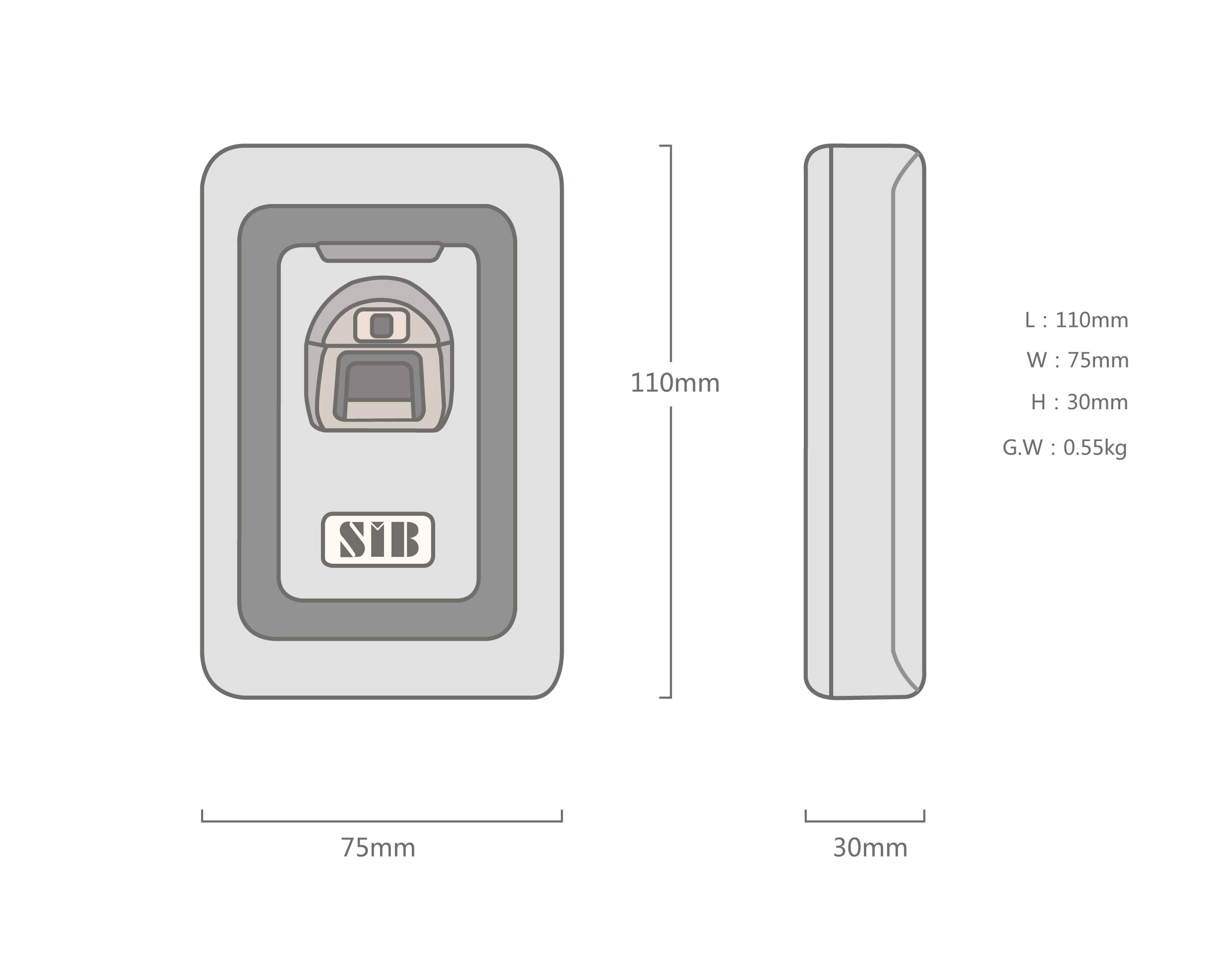

Dimension:110 *75*30mm






Size & Weight





Package size

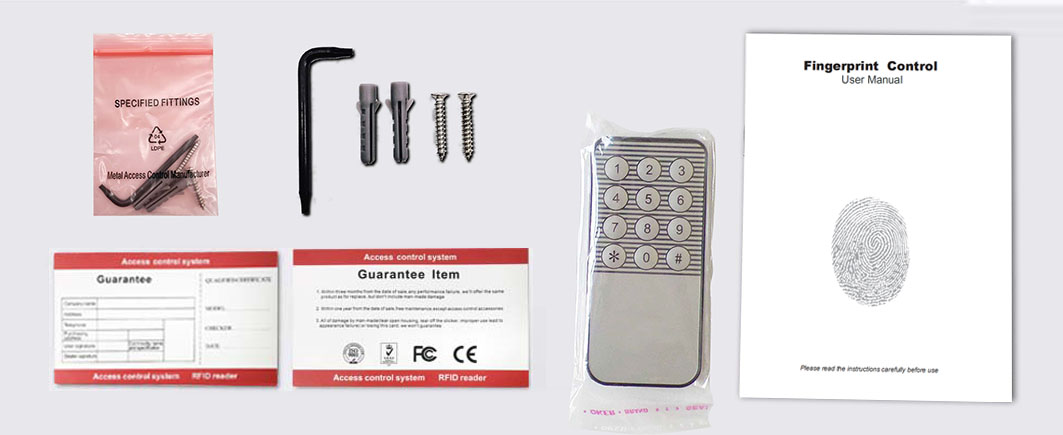

Packing list

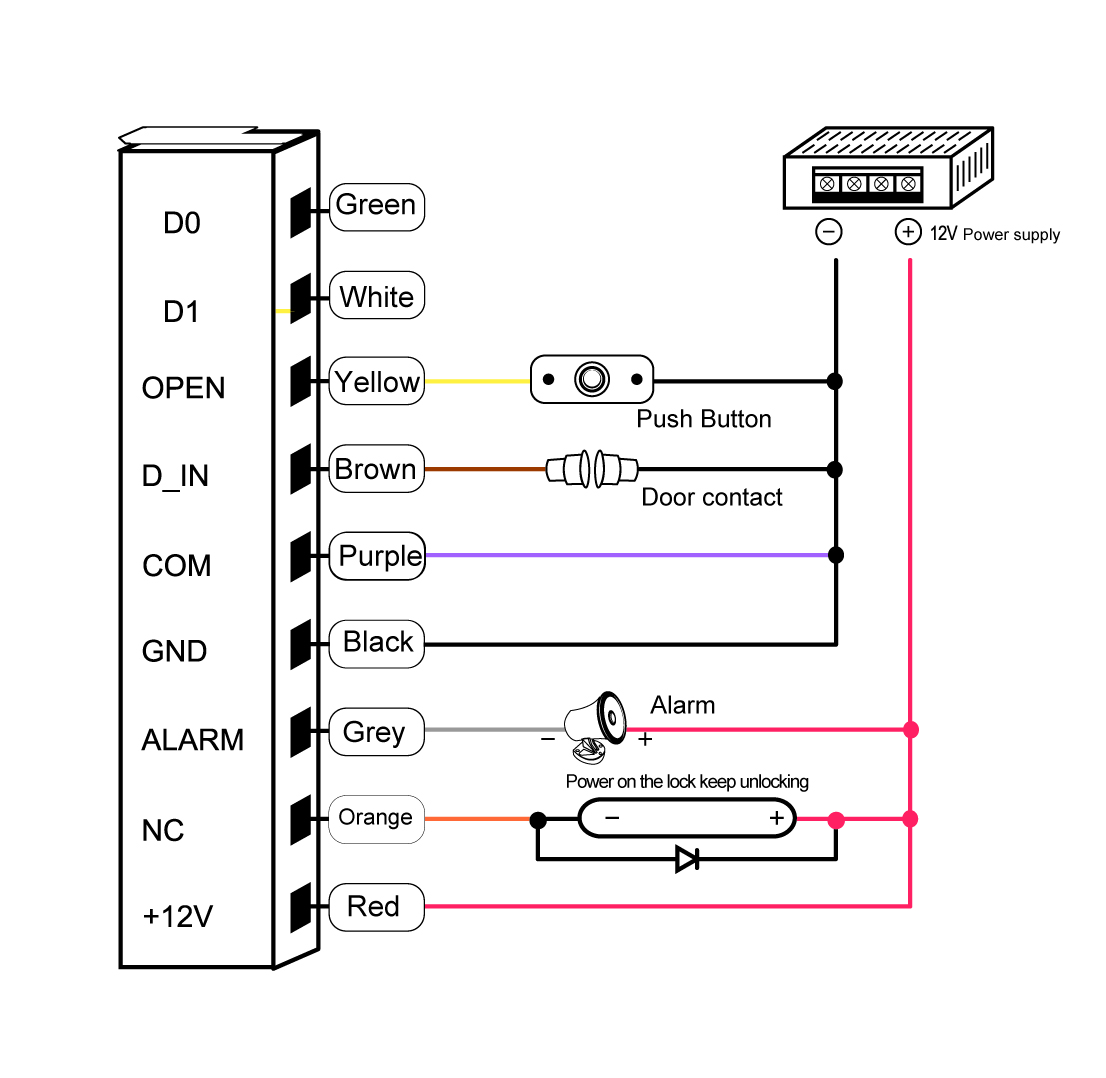

Common power supply diagram

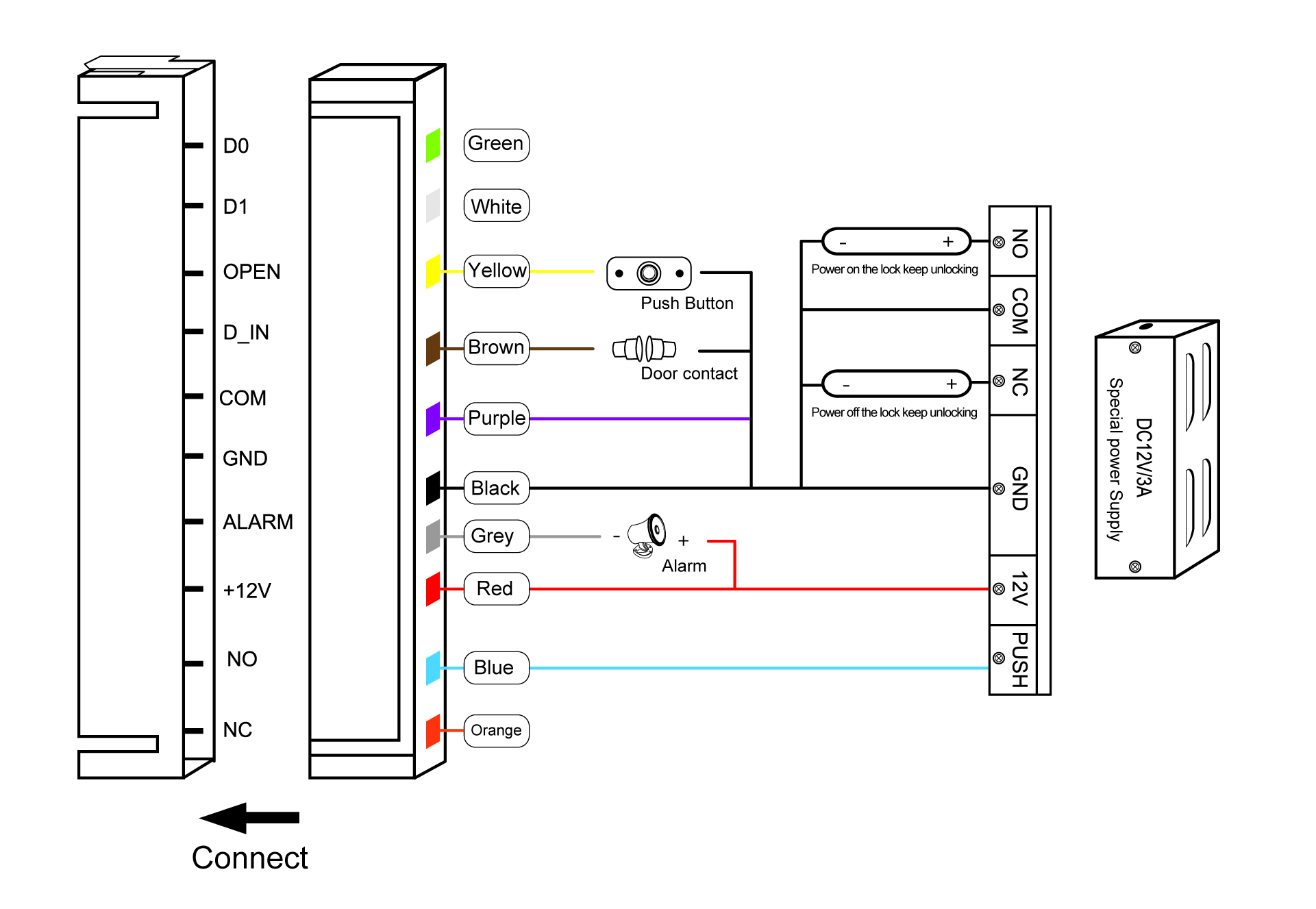

Special power supply diagram
